Camera Setting Operations

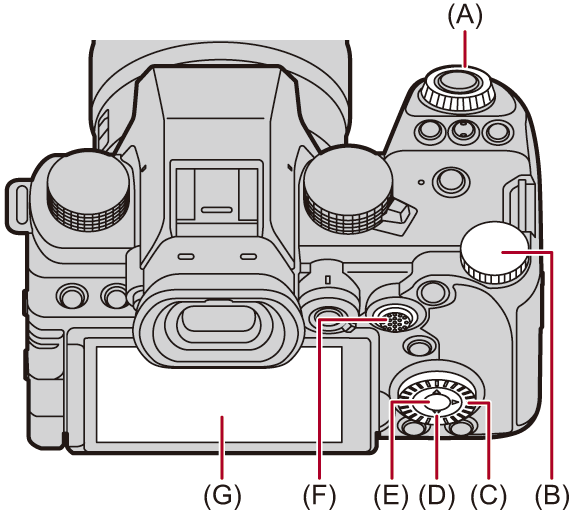

When changing the camera settings, operate the camera using the following operation parts.

image_basic-operation


(A) Front dial (image_front-dial_s) (character_referenceFront Dial/Rear Dial)


(B) Rear dial (image_rear-dial_s) (character_referenceFront Dial/Rear Dial)


(C) Control dial (button_control-dial_s) (character_referenceControl Dial)


(D) Cursor buttons (character_upcharacter_downcharacter_leftcharacter_right) (character_referenceCursor Buttons)


(E) [MENU/SET] button (button_menu-set) (character_reference[MENU/SET] Button)


(F) Joystick (character_upcharacter_downcharacter_leftcharacter_right/button_joy-stick-push_s) (character_referenceJoystick)


(G) Touch screen (character_referenceTouch Screen)

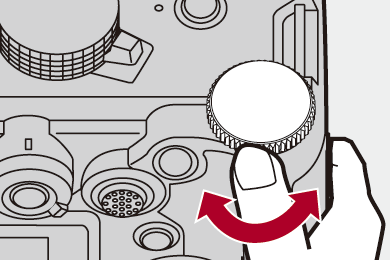

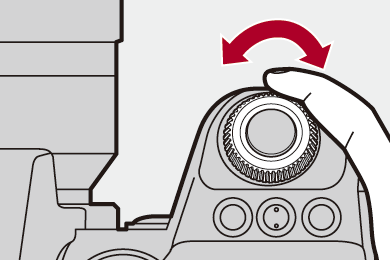

character_diamondFront Dial/Rear Dial

Rotate:

Selects an item or numeric value.

image_front-dial

image_rear-dial

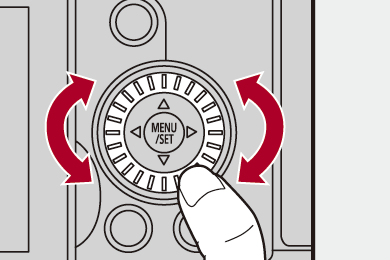

character_diamondControl Dial

Rotate:

Selects an item or numeric value.

image_control-dial

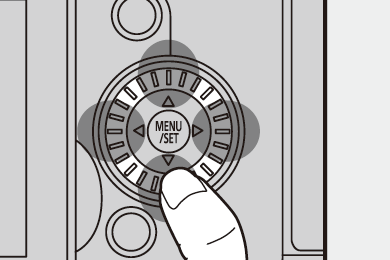

character_diamondCursor Buttons

Press:

Selects an item or numeric value.

image_cursor-button

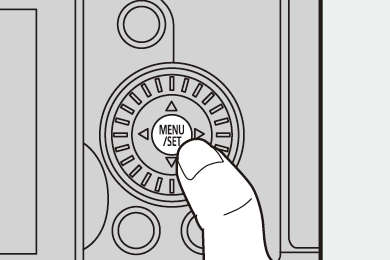

character_diamond[MENU/SET] Button

Press:

Confirms a setting.

bullet02Displays the menu during recording and playback.

image_menu-set-button


character_diamondJoystick

The joystick can be operated in 8 directions by tilting it up, down, left, right and diagonally and by pressing the center part.


(H) Tilt: Selects an item or numeric value, or moves a position.

bullet02Operation is easier if you place your finger on the center of the joystick before tilting. The joystick may not work as expected when the sides are pressed.

(I) Press: Confirms a setting.

image_joystick


icon_related-info_s

bullet02You can disable the operations of operating parts.

(character_reference[Operation Lock Setup])


character_diamondTouch Screen

Operations can be performed by touching the icons, slide bars, menus, and other items displayed on the screen.


Touch

Operation of touching and then lifting your finger from the touch screen.

image_touch

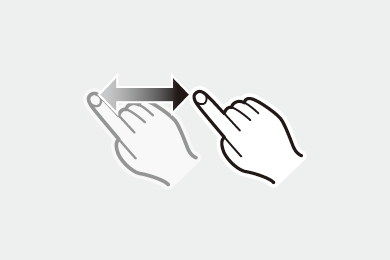

Drag

Operation of moving a finger while it touches the touch screen.

image_drag

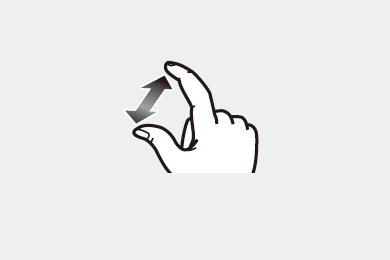

Pinch (widen/narrow)

Operations of widening the distance between two fingers (pinch out) and narrowing the distance between two fingers (pinch in) while they are touching the touch screen.

image_pinch


icon_info_s

bullet02If you will use a commercially available monitor protection sheet, observe the precautions for the sheet.

(Visibility and operability may be impaired depending on the type of monitor protection sheet.)

icon_related-info_s

bullet02Touch operations can be disabled:

(character_reference[Touch Settings])
