Panasonic

Switching the Display Mode

character_bullet-largeEnlarged Display

character_bullet-largeThumbnail Screen

character_bullet-largeCalendar Playback


You can use features to do things like enlarge recorded images for display and switch to thumbnail display to display multiple images at once (multi-playback).

You can also switch to calendar display to show images of a selected recording date.


Enlarged Display

Playback images can be displayed enlarged (Playback Zoom).


Enlarging the playback screen.

character_bullet-largeRotate image_rear-dial_s to the right.

character_bullet-largeThe playback screen is enlarged in the order of 2× other_arrow1 4× other_arrow1 8× other_arrow1 16×.


bullet02Rotating image_rear-dial_s to the left returns to the previous display size.

bullet02Enlarged display to 16× is not possible with FHD video or with pictures extracted from FHD video.

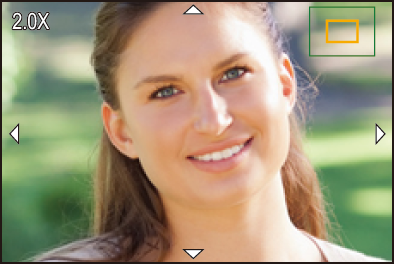

gui_touch-zoom2


character_diamondOperations During Enlarged Display

Button operations

Touch operations

Description of operation

image_rear-dial_s

—

Enlarges/reduces the screen.

—

Pinch out/pinch in

Enlarges/reduces the screen in small steps.

character_upcharacter_downcharacter_leftcharacter_right

Drag

Moves the enlarged display position.

Positions can be moved to the diagonal directions using the joystick.

image_front-dial_s/button_control-dial_s

—

Forwards or rewinds images while maintaining the same zoom magnification and zoom position.


icon_related-info_s

bullet02You can display the point focused with AF. You can enlarge the display from that point:

(character_reference[Magnify from AF Point])


Thumbnail Screen

  1. Switch to thumbnail display.

character_bullet-largeRotate image_rear-dial_s to the left.

character_bullet-largeThe display is switched in the order of 12-image screen other_arrow1 30-image screen.


bullet02Rotating image_rear-dial_s to the left during 30-image screen display switches to calendar display. (character_referenceCalendar Playback)

bullet02Rotating image_rear-dial_s to the right returns to the previous display.

bullet02You can also switch the display by touching an icon.

[icon_touch-single]: 1-image screen

[icon_touch-multi-12]: 12-image screen

[icon_touch-multi-30]: 30-image screen

[icon_touch-calendar]: Calendar (character_referenceCalendar Playback)

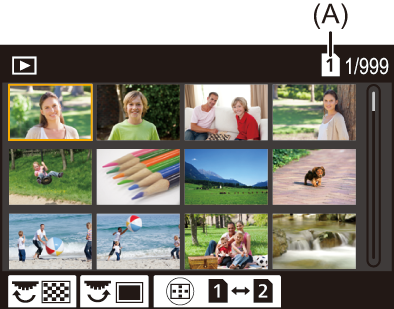

gui_play-multi

(A) Card slot

  1. Select an image.

character_bullet-largePress character_upcharacter_downcharacter_leftcharacter_right to select an image and then press button_menu-set or button_joy-stick-push_s.


icon_hints_s

bullet02When you press [button_af-mode] while a thumbnail is being displayed, you can switch to the card being displayed.

bullet02You can scroll the screen by dragging the thumbnail display up or down.

icon_info_s

bullet02Images indicated with [icon_error] cannot be played back.


Calendar Playback

  1. Switch to calendar playback.

character_bullet-largeRotate image_rear-dial_s to the left.

character_bullet-largeThe display is switched in the order of thumbnail screen (12 images) other_arrow1 Thumbnail screen (30 images) other_arrow1 Calendar playback.


bullet02Rotating image_rear-dial_s to the right returns to the previous display.

gui_calendar1

  1. Select the recording date.

character_bullet-largePress character_upcharacter_downcharacter_leftcharacter_right to select a date and then press button_menu-set or button_joy-stick-push_s.

  1. Select an image.

character_bullet-largePress character_upcharacter_downcharacter_leftcharacter_right to select an image and then press button_menu-set or button_joy-stick-push_s.


bullet02Rotating image_rear-dial_s to the left returns to calendar playback.


icon_info_s

bullet02The card to display cannot be switched during calendar display.

bullet02The range that the calendar can be displayed is January 2000 to December 2099.
