[Custom] Menu

[Custom] menu ([Image Quality])

character_default : Default settings

[Photo Style Settings]

[Show/Hide Photo Style]	[Vivid] / [Natural] / [L.ClassicNeo] / [Flat] / [Landscape] / [Portrait] / [L.Monochrome] / [L.Monochrome D] / [L.Monochrome S] / [LEICA Monochrome] / [Cinelike D2] / [Cinelike V2] / [Like709] / [V-Log] / [REAL TIME LUT] / [Hybrid Log Gamma] / [MY PHOTO STYLE 1] to [MY PHOTO STYLE 10]
Sets Photo Style items to be displayed on the menu.
[My Photo Style Settings]	[Add Effects]
	[Load Preset Setting]
Enables detailed image quality adjustment settings for My Photo Style. [Add Effects]: Enables [Sensitivity] and [White Balance] settings in image quality adjustment. [Load Preset Setting]: Sets the timing at which image quality adjustment values changed in My Photo Style are returned to their registered state.
[Reset Photo Style]
Returns details changed in [Photo Style] and [Photo Style Settings] to their default settings.

[LUT Library]

[ISO Increments]

[Extended ISO]

[Exposure Offset Adjust.]

[Multi Metering]	[−1EV] to [+1EV] ([±0EV])
[Center Weighted]	[−1EV] to [+1EV] ([±0EV])
[Spot]	[−1EV] to [+1EV] ([±0EV])
[Highlight Weighted]	[−1EV] to [+1EV] ([±0EV])
Adjusts the exposure level that is the standard exposure for each setting item of [Metering Mode]. Adds the adjustment value from this function to the exposure compensation value (Exposure Compensation) when recording. For video recording, it is not possible to add an adjustment value of a range that exceeds ±3 EV.

[Face Priority In Multi Metering]

[AWB Lock Setting]

[Operation Syncs With Shutter]

[WHILE PRESSING] / [DURING BURST SHOOTING] / character_default [OFF]

[Lock Hold With Fn Button]

character_default [ON] / [OFF]

Fixes the white balance while you are pressing the shutter button or the Fn button when white balance is auto ([AWB]/[AWBc]/[AWBw]).

This prevents the white balance from changing unintentionally while pressing the shutter button halfway, during burst recording, or while recording videos.

[Operation Syncs With Shutter]

[WHILE PRESSING]: Fixes white balance while pressing the shutter button (including while pressing halfway or during burst recording).

[DURING BURST SHOOTING]: Fixes white balance during burst recording.

[OFF]: White balance is not fixed.

[Lock Hold With Fn Button]

[ON]: When you press the Fn button registered with [AWB Lock], the white balance is fixed. Press again to cancel the lock.

[OFF]: While you are pressing the Fn button registered with [AWB Lock], the white balance is fixed.

[AWBL] is displayed on the screen while white balance is locked.

[Operation Syncs With Shutter] does not work in [ icon_mode-p-motion_table ]/[S&Q] mode.

[Color Space]

character_default [sRGB] / [AdobeRGB]

This sets the method for correcting the color reproduction of the recorded images on the screens of a PC or on a device such as a printer.

[sRGB]: This is widely used in PCs and similar devices.

[AdobeRGB]: AdobeRGB is mainly used for business purposes such as professional printing because it has a greater range of reproducible colors than sRGB.

Set to [sRGB] if you are not very familiar with AdobeRGB.

When the following functions are being used, the setting is fixed to [sRGB]:

– Video recording

– [Like709]/[V-Log]/[REAL TIME LUT] ([Photo Style])

– [Filter Settings]

[Exposure Comp. Reset]

[Auto Exposure in P/A/S/M]

[CreativeVideo Combined Set.]

[Custom] menu ([Focus/Shutter])

character_default : Default settings

[Focus/Shutter Priority]

[Focus Switching for Vert / Hor]

[AF/AE Lock Hold]

[AF+MF]

[MF Assist]

[Focus Ring] (When an interchangeable lens with a focus ring is attached)	[ON] / [OFF]
[AF Mode]	[ON] / [OFF]
[Press Joystick]	[ON] / [OFF]
[MF Assist Display]	[FULL] / [PIP]
This sets the display method of MF Assist (enlarged screen). [Focus Ring]: The screen is enlarged by focusing with the lens. [AF Mode]: The screen is enlarged by pressing []. [Press Joystick]: Press the joystick to enlarge the display. (if [Joystick Setting] is set to [D.FOCUS Movement]) ([Joystick Setting]) [MF Assist Display]: Sets the display method (full screen mode/windowed mode) of MF Assist (enlarged screen).

[MF Guide]

[Focus Ring Lock]

[Show/Hide AF Mode]

[Pinpoint AF Setting]

[AF-Point Scope Setting]

[Shutter AF]

[Human Eye Detection Display]

[Half-Press Shutter]

[Assign REC to Shutter Button]

[Quick AF]

[Eye Sensor AF]

[Looped Focus Frame]

[Enlarged Live Display(Video)]

[Custom] menu ([Operation])

character_default : Default settings

[Q.MENU Settings]

[Touch Settings]

[Touch Screen]	[ON] / [OFF]
[Touch Tab]	[ON] / [OFF]
[Touch AF]	[AF] / [AF+AE]
[Touch Pad AF]	[EXACT] / [OFFSET1] to [OFFSET7] / [OFF]
Enables touch operation on the monitor display. [Touch Screen]: All touch operations. [Touch Tab]: Operations of tabs, such as [] on the right side of the screen. [Touch AF]: Operation to optimize the focus ([AF]) for a touched subject. Alternatively, operation to optimize both the focus and brightness ([AF+AE]). (Focus on and Adjust Brightness for the Touched Position ([AF+AE])) [Touch Pad AF]: Touch pad operation during viewfinder display. (Moving the AF Area Position with the Touch Pad)

[Operation Lock Setup]

[Fn Button Set]

[WB/ISO/Expo. Button]

[WHILE PRESSING] / [AFTER PRESSING1] / character_default [AFTER PRESSING2]

This sets the operation to be performed when [WB] (White balance), [ISO] (ISO sensitivity) or [ icon_expo_s ] (Exposure compensation) is pressed.

[WHILE PRESSING]: Allows you to change the setting while pressing and holding the button. Release the button to confirm the settings value, and to return to the recording screen.

[AFTER PRESSING1]: Press the button to change settings. Press the button again to confirm the settings value, and to return to the recording screen.

[AFTER PRESSING2]: Press the button to change settings. Each press of the button switches the settings value. (Except that of exposure compensation) To confirm your selection and return to the recording screen, press the shutter button halfway.

[ISO Displayed Setting]

[Exposure Comp. Disp. Setting]

[Dial Set.]

[Assign Dial (F/SS)]			[SET1] / [SET2] / [SET3] / [SET4] / [SET5]
Sets the operations to be assigned to the dials in [P]/[A]/[S]/[M] modes. : Program Shift, F: Aperture value, SS: Shutter speed
		[P]	[A]	[S]	[M]
	[SET1]		F	SS	F
	[SET1]		F	SS	SS
	[SET2]	—	F	—	F
	[SET2]		—	SS	SS
	[SET3]	—	—	SS	SS
	[SET3]		F	—	F
	[SET4]	—	—	—	F
	[SET4]		F	SS	SS
	[SET5]		F	SS	F
	[SET5]	—	—	—	SS

[Rotation (F/SS)]			[] / []
Changes the rotational directions of the dials for aperture value and shutter speed adjustment.
[Control Dial Assignment]			[] ([Headphone Volume]) / [/] ([Exposure / Aperture]) / [] ([Exposure Comp.]) / [] ([Sensitivity]) / [] ([Focus Frame Size])
Sets the function to be assigned to on the recording screen. [/]: In [M] mode, this assigns the operation to adjust the aperture value. In other than [M] mode, this assigns the operation of exposure compensation.
[Exposure Comp.]			[] / [] / [OFF]
Assigns exposure compensation to or . (Except in [M] mode) The [Assign Dial (F/SS)] setting takes priority.
[Dial Operation Switch Setup]			[]
[Dial Operation Switch Setup]			[]
In the Fn button [Dial Operation Switch], this sets the functions to be registerd temporarily to or . (Register Functions to the Dials)
[Rotation (Menu Operation)]			[] / [] / [] / []
Changes the rotational direction of the dials when operating menus.

[Joystick Setting]

[Video Rec. Button (Remote)]

[Custom] menu ([Monitor / Display (Photo)])

character_default : Default settings

[Auto Review]

[Duration Time (photo)]

[HOLD] / [5SEC] to [0.5SEC] / character_default [OFF]

[Playback Operation Priority]

[ON] / character_default [OFF]

This displays an image immediately after it is recorded.

[Duration Time (photo)]: Sets the Auto Review when taking pictures.

[Playback Operation Priority]: When this is set to [ON], you can toggle the playback screen during Auto Review, or delete pictures.

If you set [Duration Time (photo)] to [HOLD], the image recorded stays displayed until the shutter button is pressed halfway.

[Playback Operation Priority] will be fixed to [ON].

[Constant Preview]

[ON] / [OFF]
[SET]	[Effect]
	[Preview While MF Assist]
You can always confirm the effects of aperture on the recording screen when in [A]/[M] mode. You can also confirm the shutter speed at the same time when in [M] mode. You can set the combination of the aperture effect and the shutter speed effect in [Effect]. Preview also operates in the MF Assist screen when [Preview While MF Assist] is set to [ON]. The preview of the shutter speed effect does not work when using a flash.

[Histogram]

[ON] / character_default [OFF]

This displays the histogram.

Turning this [ON] displays the histogram transition screen.

Press character_up character_down character_left character_right to set the position.

Positions can be moved to the diagonal directions using the joystick.

You can also move the position by dragging the histogram on the recording screen.

A histogram is a graph that displays brightness along the horizontal axis, and the number of pixels at each brightness level on the vertical axis.

By looking at the distribution of the graph, you can determine the current exposure.

gui_histogram

(A) Dark

(B) Bright

When the recorded image and the histogram do not match each other under the following conditions, the histogram is displayed in orange:

– During exposure compensation

– When the flash fires

– When the standard exposure is not achieved, such as in low light situations.

When the following function is being used, the [Histogram] is not available:

– [WFM/Vector Scope]

The histogram is an approximation in the recording mode.

[Photo Grid Line]

[Live View Boost]

[MODE1] / [MODE2] / character_default [OFF]

[SET]

[P/A/S/M] / character_default [M]

Displays the screen brighter to make it easier to check subjects and compositions even in low-light environment.

[MODE1]: Setting for low brightness, with priority given to a soft display.

[MODE2]: Setting for high brightness, with priority given to image visibility.

You can change the recording mode in which [Live View Boost] works by using [SET].

This mode does not affect recorded images.

Noise may be more noticeable in the screen than in the recorded image.

This function does not work in the following cases:

– When adjusting the exposure (when the shutter button is pressed halfway, for example)

– When recording a video

– When using [Filter Settings]

– When displaying the shutter speed effect of [Constant Preview]

[Night Mode]

[Monitor]

[ON] / character_default [OFF]

[LVF]

[ON] / character_default [OFF]

Displays the monitor and viewfinder in red.

In dark environments, this reduces brightness of the screen that can make the surroundings difficult to see.

You can also set the luminance of the red display.

Press to select [ON] on the monitor or viewfinder (LVF).

Press [DISP.] to display the brightness adjustment screen.

Display the monitor to adjust the monitor, and display the viewfinder to adjust the viewfinder.

Press to adjust luminance and then press or .

This effect is not applied to images output via HDMI.

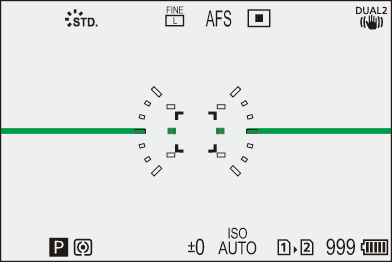

[LVF/Monitor Disp. Set]

[LVF Disp. Set]	[] / []
[Monitor Disp. Set]	[] / []
Selects whether to show the live view without covering the information display, or to display over the entire screen. []: Scales down images slightly so you can better review the composition of the images. []: Scales images to fill the entire screen so you can see their details. You can assign the function that switches the currently displayed monitor or viewfinder display style to an Fn button. ([LVF/Monitor Disp. Set])
[Horizontal Image Flip(Monitor)]	[AUTO] / [ON] / [OFF]
[Vertical Image Flip(Monitor)]	[AUTO] / [ON] / [OFF]
You can set whether the screen flips or not depending on the facing or angle of the monitor during recording. [Horizontal Image Flip(Monitor)] [AUTO]: The screen automatically flips horizontally according to the angle to which the monitor is opened or closed. [ON]: The screen is flipped horizontally all the time. [OFF]: Screen is not flipped. [Vertical Image Flip(Monitor)] [AUTO]: The screen automatically flips vertically according to the angle to which the monitor is rotated. [ON]: The screen is flipped vertically all the time. [OFF]: Screen is not flipped. The settings for this function are not reflected in the playback screen.

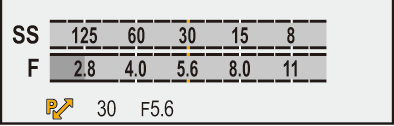

[Expo.Meter]

[Focal Length]

[Blinking Highlights]

[Sheer Overlay]

[ON] / [OFF]
[SET]	[Transparency]
	[Image Select]
	[Reset at Power Off]
	[Disp. Image (shutter-press)]
A picture that has been recorded or an image extracted from a video is overlayed on the recording screen. Use [Image Select] and select a picture or video to display. Press to select a picture or video and then press or to confirm. (When a video is selected) Pause playback at the position you wish to extract a picture. Press to pause playback. To fine-adjust the position, press (rewind frame-by-frame or forward frame-by-frame). (When a video is selected) Set a picture. Press or . If you set [Disp. Image (shutter-press)] to [OFF], [Sheer Overlay] is canceled while the shutter button is being pressed halfway or pressed fully. The picture extracted from video is saved. When the following functions are being used, [Sheer Overlay] is not available: – Video recording – [Stop Motion Animation]

[I.S. Status Scope]

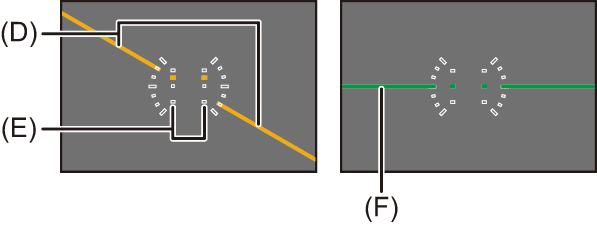

[Level Gauge]

[Luminance Spot Meter]

[Framing Outline]

[Show/Hide Monitor Layout]

[Custom] menu ([Monitor / Display (Video)])

character_default : Default settings

[V-Log View Assist]

[HLG View Assist]

[Anamorphic Desqueeze Display]

[Monochrome Live View]

[Center Marker]

[Safety Zone Marker]

[Frame Marker]

[Zebra Pattern]

[WFM/Vector Scope]

[Color Bars]

[Video-Priority Display]

[Red REC Frame Indicator]

[Custom] menu ([IN/OUT])

character_default : Default settings

[HDMI Rec Output]

[Custom] menu ([Lens / Others])

character_default : Default settings

[Lens Focus Resume]

[Power Zoom Lens]

[Lens Fn Button Setting]

character_default [Focus Stop] / [AF Mode] / [AF Detection Setting] / [Detecting Subject] / [Focus Ring Lock] / [AE LOCK] / [AF LOCK] / [AF/AE LOCK] / [AF-ON] / [AF-ON : Near Shift] / [AF-ON : Far Shift] / [AF-Point Scope] / [Focus Area Set] / [Enlarged Live Display(Video)] / [Image Stabilizer] / [Preview] / [Preview Aperture Effect] / [No Setting] / [Off (Disable Press and Hold)] / [Restore to Default]

When [Focus Stop] is set, focus is fixed while the focus button is being pressed.

[Aperture Ring Increment]

[SMOOTH] / character_default [1/3EV]

Stops for setting the aperture value with the aperture ring can be changed.

[SMOOTH]: You can finely adjust the aperture value.

[1/3EV]: You can set the aperture value at 1/3 EV stops.

This can be used when a lens compatible with a clickless aperture ring (H-X1025/H-X2550: optional) is attached. (As of September 2023)

When taking pictures, this setting will take effect if the aperture ring is set to a position other than [A].

If the position of the aperture ring is set to [A], the aperture value set by the camera will take effect and can be adjusted like with [1/3EV].

During video recording, fine adjustments can be made like with [SMOOTH].

When [SMOOTH] is set, fractions of aperture values are not displayed on the screen.

[Focus Ring Control]

character_default [NON-LINEAR] / [LINEAR]

[SET]

[90°] to [1080°] ( character_default [300°]) / [Maximum]

Sets the amount of movement for focusing using the focus ring. (When using supported lenses)

[NON-LINEAR]: Focus responds by accelerating according to rotation speed of the focus ring.

[LINEAR]: Focus responds at a constant amount according to the rotational angle of the focus ring.

When using lenses equipped with focus clutch mechanisms, set the lens to AF and the camera to MF.

[SET]: Sets the rotational angle of the focus ring for when [LINEAR] is selected.

Angles that cannot be set with the attached lens are not displayed.

For information on lenses that support focus ring control, refer to the following support site:

https://panasonic.jp/support/global/cs/dsc/connect/index.html

(English only)

[AF Micro Adjustment]

[Lens Information]

[Lens Info. Confirmation]

[Vertical Position Info (Video)]

[Tracking]	[ON] / [OFF]
[Full Area AF]	[ON] / [OFF]
[Zone(Horizontal/Vertical)]	[ON] / [OFF]
[Zone]	[ON] / [OFF]
[1-Area+]	[ON] / [OFF]
[Pinpoint]	[ON] / [OFF]
Sets the AF mode items to be displayed on the AF mode selection screen.

[Layout Style]	[MODE1] / [MODE2]
[Front Dial Assignment]	[Item] / [Value]
[Item Customize (Photo)]
[Item Customize (Video)]
Customizes the Quick menu. (Quick Menu Customization)

[Cursor Buttons (Up/Down)]	[] / [OFF]
This sets the operations of the buttons in the exposure compensation screen. Assigning [] lets you set exposure bracketing.
[Front/Rear Dials]	[/] / [/] / [OFF/] / [/] / [/OFF]
This sets the operations of the dials in the exposure compensation screen. Assigning [] lets you adjust flash output.

[Control Panel]	[ON] / [OFF]
[Black Screen]	[ON] / [OFF]
Displays the control panel and black screen when switching between displays using [DISP.] button. (Recording Screen)

[LUT Select]
[LUT View Assist (Monitor)]	[ON] / [OFF]
[LUT View Assist (HDMI)]	[ON] / [OFF]
You can show images with LUT file applied on the monitor/viewfinder, or output them via HDMI. ([V-Log View Assist])

[F/SS/ISO/Exposure Comp.]	[] / []
[White Balance]	[] / []
[Photo Style]	[] / []
[Metering Mode]	[] / []
[AF Mode]	[] / []
Content set in [] mode can be separated from when taking pictures. (Separating Settings for Recording Video and Pictures)

[Cursor]	[] / []
[Joystick]	[] / []
[Touch Screen]	[] / []
[Dial]	[] / []
[DISP. Button]	[] / []
This sets the control functions to be disabled with the Fn button [Operation Lock]. (Only for recording screen) [Cursor]: Cursor buttons, [MENU/SET] button, and [Joystick]: Joystick [Touch Screen]: Touch screen [Dial]: , , and [DISP. Button]: [DISP.] button

[] / [] / [OFF]
[SET]	[Size]	[95%]
		[90%]
		[80%]
This displays the safety zone, which shows a guide to the area that would be shown on a household TV, on the recording screen.

[ON] / [OFF]
[SET]	[Frame Aspect]
	[Frame Color]
	[Frame Mask]
A frame with the set aspect ratio is displayed on the recording screen. [Frame Aspect] can also be customized. ([Frame Marker])

[ZEBRA1] / [ZEBRA2] / [ZEBRA1+2] / [OFF]
[SET]	[Zebra 1]
	[Zebra 2]
Parts that are brighter than the base value are displayed with stripes. ([Zebra Pattern])

[Info Display] (Outputting the Camera Information Display via HDMI)	[ON] / [OFF]
[HDMI Recording Control] (Outputting Control Information to an External Recorder)	[ON] / [OFF]
[Sound Output (HDMI)] (Outputting Audio via HDMI)	[ON] / [OFF]
[Enlarged Live Display] (Outputting the Enlarged Live Display (Video) via HDMI)	[MODE1] / [MODE2] / [OFF]
Sets HDMI output during recording.

[Step Zoom]	[ON] / [OFF]
[Zoom Speed]	[Photo]: [H] / [M] / [L]
[Zoom Speed]	[Video]: [H] / [M] / [L]
[Zoom Ring]	[ON] / [OFF]
This sets the zoom operation when using a lens that supports power zoom (motorized zoom). ([Power Zoom Lens])
