Using AF

icon_mode-photo icon_mode-movie

icon_mode-ia icon_mode-p icon_mode-a icon_mode-s icon_mode-m icon_mode-creative-motion icon_mode-slow-and-quick-motion

AF (Auto Focus) refers to automatic focusing.

Select the focus mode and the AF mode appropriate for the subject and scene.

Set the focus mode to [AFS] or [AFC].

Set the focus mode lever. ( character_reference Selecting the Focus Mode)

Select the AF mode.

Press [ button_af-mode ] to display the AF mode selection screen, and set using button_menu-set or button_joy-stick-push_s . ( character_reference Selecting the AF Mode)

In [iA] mode, each press of [ button_af-mode ] switches between [ icon_23-points-af_blue ] and [ icon_af-tracking_blue ]. ( character_reference AF Mode)

Press the shutter button halfway.

The AF operates.

image_record3

	Focus
	In focus	Not in focus
Focus icon (A)	Lights	Blinking
AF area (B)	Green	Red
AF beep	Two beeps	—

Low illumination AF

In dark environments, low illumination AF automatically operates, and the focus icon is indicated as [ icon_low-af ].

Achieving focus may take more time than usual.

Starlight AF

If the camera detects stars in the night sky after determining low illumination AF, then Starlight AF will be activated.

When focus is achieved, the focus icon will display [ icon_star-af ], and the AF area will be displayed on the area in focus.

Edges of the screen cannot detect Starlight AF.

character_diamond [AF ON] button

You can also activate AF by pressing [AF ON].

image_af-on

icon_hints_s

Subjects and recording conditions that make focusing difficult with AF mode

– Fast-moving subjects

– Extremely bright subjects

– Subjects without contrast

– Subjects recorded through windows

– Subjects near shiny objects

– Subjects in very dark locations

– When recording subjects both distant and near

icon_info_s

When the following operations are performed while recording with [AFC], it may take some time for the camera to focus:

– When zooming from the wide-angle end to the telephoto end

– When the subject is suddenly changed from one far away to one close by

If using the zoom after achieving focus, the focus may be erroneous. In that case, re-adjust the focus.

icon_related-info_s

You can restrict the range for AF to work:

( character_reference [Focus Limiter])

When camera shake reduces, it is possible to focus automatically:

( character_reference [Quick AF])

You can change the settings so that AF does not function when the shutter button is pressed halfway:

( character_reference [Half-Press Shutter])

The AF beep volume and sound can be changed:

( character_reference [Beep])

You can assign the function that makes AF work so that it prioritizes subjects close by to an Fn button.

This function is useful when the camera mistakenly focuses on the background:

( character_reference [AF-ON : Near Shift])

You can assign the function that makes AF work so that it prioritizes subjects far away to an Fn button.

This function is useful when taking pictures through fences or nets:

( character_reference [AF-ON : Far Shift])

[AF-Point Scope]

icon_mode-photo icon_mode-movie_gray

icon_mode-ia icon_mode-p icon_mode-a icon_mode-s icon_mode-m icon_mode-creative-motion_gray icon_mode-slow-and-quick-motion_gray

This magnifies the focus point when the AF mode is [ icon_1-area-plus ], [ icon_1-point-af_blue ], or [ icon_pinpoints-af_blue ]. (In other AF modes, the center of the screen is magnified.)

You can check focus and observe an enlarged subject as with a telephoto lens.

You can also perform the same operation by pressing the Fn button registered with [AF-Point Scope]. ( character_reference Fn Buttons)

Press and hold the AF-Point Scope button.

image_button-af-point-scope

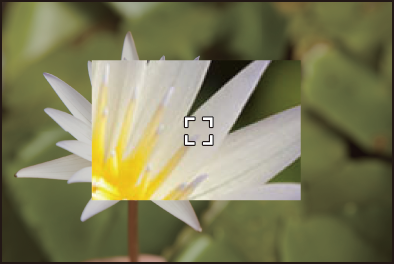

While pressing the button, the focus point is enlarged.

gui_af-point-scope1

When the screen is enlarged, pressing the shutter button halfway re-acquires focus in a small central AF area.

When the screen is enlarged, turn image_front-dial_s or image_rear-dial_s to adjust the magnification.

Use image_front-dial_s for more detailed adjustments.

icon_info_s

When the screen is enlarged, [AFC] changes to [AFS].

When the following function is being used, AF-Point Scope does not work:

– Video recording/SH burst recording

icon_related-info_s

You can change the display method of the magnified screen:

( character_reference [AF-Point Scope Setting])

[AF Custom Setting(Photo)]

icon_mode-photo icon_mode-movie_gray

icon_mode-ia_gray icon_mode-p icon_mode-a icon_mode-s icon_mode-m icon_mode-creative-motion_gray icon_mode-slow-and-quick-motion_gray

You can select features of AF operation when taking pictures with [AFC] that are appropriate for the subject and scene.

Each of these features can be further customized.

Set the focus mode to [AFC].

Set the focus mode lever. ( character_reference Selecting the Focus Mode)

Set [AF Custom Setting(Photo)].

button_menu-set [ icon_picture ] [ icon_photo-focus ] [AF Custom Setting(Photo)]

gui_af-custom-photo2_eng

[Set 1]

Basic general-purpose setting.

[Set 2]

Suggested for situations where the subject moves at a constant speed in one direction.

[Set 3]

Suggested when the subject moves randomly, and other objects may be in the scene.

[Set 4]

Suggested for situations where the speed of the subject changes significantly.

character_diamond Adjusting AF Custom Settings

Press to select the AF Custom setting type.

Press to select items and press to adjust.

A description of the item is displayed on the screen when you press [DISP.].

To reset settings to the default, press [Q].

Press or .

[AF Sensitivity]	Sets the tracking sensitivity for the movement of subjects.
	[+]	When the distance to the subject changes drastically, the camera re-adjusts the focus immediately. You can bring different subjects into focus one after another.
	[−]	When the distance to the subject changes drastically, the camera waits for a short period of time before re-adjusting the focus. This allows you to prevent the focus from being accidentally re-adjusted when, for example, an object moves across the image.
[AF Area Switching Sensitivity]	Sets the sensitivity for switching the AF area to match subject movement. (When AF mode is set to Full Area AF)
	[+]	When the subject moves out of the AF area, the camera immediately switches the AF area to keep the subject in focus.
	[−]	The camera switches the AF area at a gradual pace. Effects caused by a slight movement of the subject or by obstacles in front of the camera will be minimized.
[Moving Subject Prediction]	Sets the tracking method for changes in the speed of subject movement. At larger setting values, the camera tries to maintain focus by responding even to sudden movements of the subject. However, the camera becomes more sensitive to slight movements of the subject, so focusing may become unstable.
	[0]	This is suited to a subject with minimal changes in speed.
	[+1]	These are suited to a subject that changes its speed.
	[+2]

[Focus Limiter]

icon_mode-photo icon_mode-movie

icon_mode-ia icon_mode-p icon_mode-a icon_mode-s icon_mode-m icon_mode-creative-motion icon_mode-slow-and-quick-motion

You can restrict the range for AF to work.

The focusing speed of AF increases when you limit the range where AF works.

Set the focus mode to [AFS] or [AFC].

Set the focus mode lever. ( character_reference Selecting the Focus Mode)

Set [Focus Limiter].

button_menu-set [ icon_picture ]/[ icon_movie ] [ icon_photo-focus ] [Focus Limiter]

[ON]

Enables the following settings.

[OFF]

Disables the following settings.

[SET]

Use the same procedure as MF (Record Using MF) to check the focus, then press [WB] or [ISO] to set the range of operation for AF.

This can also be set by touching [Limit1]/[Limit2].

[Limit1]/[Limit2] can be set from either.

gui_focus-limit

Press or to confirm the setting.

Press [DISP.] to return the operation range to the default setting.

icon_info_s

This can be set when using a lens with a focus ring or a focus lever.

It cannot be set if the focusing distance range selector switch of the lens has been used to limit the operation range.

The setting values are reset when the lens is replaced.

When [Focus Limiter] is working, [ icon_focus_limit ]/[ icon_focus_limit_afc ] is displayed on the screen.

When the following function is being used, [Focus Limiter] is not available:

– [AF+MF]

[AF Assist Light]

icon_mode-photo icon_mode-movie

icon_mode-ia_gray icon_mode-p icon_mode-a icon_mode-s icon_mode-m icon_mode-creative-motion icon_mode-slow-and-quick-motion

When recording in low light conditions, the AF assist light turns on when you press the shutter button halfway, making it easier for the camera to focus.

button_menu-set [ icon_picture ]/[ icon_movie ] [ icon_photo-focus ] Select [AF Assist Light]

Settings: [ON]/[OFF]

image_af-assist_light

icon_info_s

The effective range of the AF assist light is different depending on the lens used.

– When the interchangeable lens (H-ES12060) is attached and at wide-angle end.

Approx. 1.0 m (3.3 feet) to 3.5 m (11 feet)

– When the interchangeable lens (H-FS12060) is attached and at wide-angle end.

Approx. 1.0 m (3.3 feet) to 3.0 m (9.8 feet)

Remove the lens hood.

The AF assist light may be greatly blocked, and it may become harder to focus when a lens with large diameter is used.

[Focus Frame Moving Speed]

icon_mode-photo icon_mode-movie

icon_mode-ia icon_mode-p icon_mode-a icon_mode-s icon_mode-m icon_mode-creative-motion icon_mode-slow-and-quick-motion

Sets the speed when moving the AF area/MF Assist.

button_menu-set [ icon_picture ]/[ icon_movie ] [ icon_photo-focus ] Select [Focus Frame Moving Speed]

Settings: [FAST]/[NORMAL]

[AF Micro Adjustment]

icon_mode-photo icon_mode-movie

icon_mode-ia icon_mode-p icon_mode-a icon_mode-s icon_mode-m icon_mode-creative-motion icon_mode-slow-and-quick-motion

You can make fine adjustments to the focus point when focusing with phase detection AF.

icon_care_s

There is normally no need to adjust the focus point. Adjust only when necessary. If you adjust on a lens that has a correct focus point, there is a risk that the camera will not be able to record with the appropriate focus point.

button_menu-set [] [] Select [AF Micro Adjustment]

gui_af-micro-adjustment03_eng

[ALL]

Adjust uniformly for all lenses.

Used in cases such as when you have attached lenses that are not registered in [ADJUST BY LENS].

[ADJUST BY LENS]

Adjust each lens separately and register the adjustment values on the camera.

When a registered lens is attached, the adjusted value is recalled when it is set in [ADJUST BY LENS].

When using a zoom lens, you can adjust the focus point individually at the wide-angle end and the telephoto end.

If the lens has already been registered, the adjustment value is overwritten.

[OFF]

character_diamond Registering the Adjusted Value

Select [ALL] or [ADJUST BY LENS] and then press [DISP.].

(When [ADJUST BY LENS] is selected) Register the lens.

Press [DISP.] and select [Yes] to register.

If the lens is already registered, the screen moves to the one in Step 3.

(When [ADJUST BY LENS] is selected) Select [Wide Adjustment] or [Tele Adjustment].

Press character_up character_down to select, and then press button_menu-set or button_joy-stick-push_s .

When using a prime lens, [Adjustment] is displayed.

gui_af-micro-adjustment04_eng

Adjust the focus point.

Press character_left character_right to adjust the focus point and then press button_menu-set or button_joy-stick-push_s .

You can also adjust by rotating image_front-dial_s , image_rear-dial_s , or button_control-dial_s .

The focus point is moved backward when adjusted with the [+] side. The focus point is moved forward when adjusted with the [−] side.

gui_af-micro-adjustment02_eng

Record and repeat Step 4 until the suitable focus point is reached.

Check the set focus point in an image recorded with [AFC] of the [Focus/Shutter Priority] set to [FOCUS] and with the focus mode set to [AFC]. ( character_reference [Focus/Shutter Priority])

icon_hints_s

We recommend making the adjustments in the same environment that will be used for recording.

We recommend using a tripod when adjusting.

icon_info_s

You can register a maximum of 40 lenses in [ADJUST BY LENS]. When the upper limit is exceeded, already registered lens information is overwritten.

When a teleconverter is used when adjusted with [ADJUST BY LENS], the combination of the lens and teleconverter is registered.

The focus point for the wide-angle end and the telephoto end cannot be individually adjusted in [ALL].

The registration numbers and lens names registered in [ADJUST BY LENS] are entered automatically and cannot be changed.

character_diamond Initializing

Registered lens information and adjusted values are initialized.

Select [ALL] or [ADJUST BY LENS] and then press [Q].

Select [Yes] to initialize.

icon_info_s

Irrespective of the [ALL]/[ADJUST BY LENS] selection, all of the registered lens information and adjusted values in [AF Micro Adjustment] are initialized.
