[Rec Quality]

icon_mode-photo_grayicon_mode-movie

icon_mode-iaicon_mode-picon_mode-aicon_mode-sicon_mode-micon_mode-creative-motionicon_mode-slow-and-quick-motion

Sets the image quality of videos to be recorded.

The image qualities you can select depend on the recording mode, [System Frequency], and [Rec. File Format] settings.

The [Image Area of Video] setting items you can select depend on the [Rec Quality] settings.

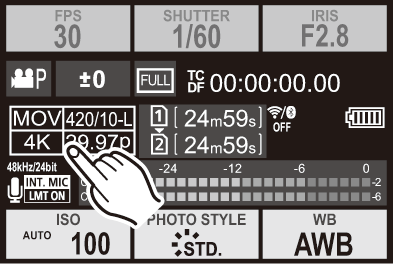

[Rec Quality] settings can also be made using [Filtering] (character_reference[Filtering]) to display only items that meet your conditions and [add to list] (character_reference[add to list]) to register recording qualities you use often.

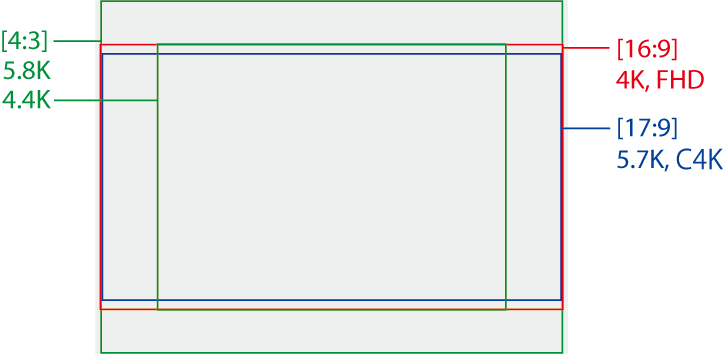

image_anamorphic01

bullet02The above shows some of the recording qualities available.


button_menu-set character_arrow [icon_movie] character_arrow [icon_video-image-format] character_arrow Select [Rec Quality]

gui_rec-quality_eng

bullet02To record video with a bit rate of 72 Mbps or more, you require an SD card with the corresponding Speed Class.

bullet02Video with a bit rate of 800 Mbps or more cannot be recorded to an SD card. You will need a commercially available external SSD for recording. (character_referenceUsing an External SSD (Commercially Available))

bullet02[Apple ProRes] video with a resolution other than FHD cannot be recorded to an SD card. You will need a commercially available external SSD for recording. (character_referenceUsing an External SSD (Commercially Available))

bullet02For information about the cards that can be used (character_referenceSD Cards That Can Be Used with This Camera)


character_diamond[Rec. File Format]: [MP4]

bullet02YUV, Bit value, Image compression:

[10bit] recording quality: 4:2:0, 10 bit, Long GOP

[8bit] recording quality: 4:2:0, 8 bit, Long GOP

bullet02Audio format: AAC (2ch)


(A) Recording frame rate

(B) Bit rate (Mbps)

(C) Video compression format (HEVC: H.265/HEVC, AVC: H.264/MPEG-4 AVC)

[System Frequency]: [59.94Hz (NTSC)]

[Rec Quality]

[Image Area of Video]

Resolution

Aspect ratio

(A)

(B)

(C)

FULL

icon_pixel_by_pixel_table

[4K/10bit/100M/60p]

character_check-mark

character_check-mark

3840×2160

16:9

59.94p

100

HEVC

[4K/10bit/72M/30p]

character_check-mark

character_check-mark

3840×2160

16:9

29.97p

72

HEVC

[4K/8bit/100M/30p]

character_check-mark

character_check-mark

3840×2160

16:9

29.97p

100

AVC

[4K/10bit/72M/24p]

character_check-mark

character_check-mark

3840×2160

16:9

23.98p

72

HEVC

[4K/8bit/100M/24p]

character_check-mark

character_check-mark

3840×2160

16:9

23.98p

100

AVC

[FHD/8bit/28M/60p]

character_check-mark

character_check-mark

1920×1080

16:9

59.94p

28

AVC

[FHD/8bit/20M/30p]

character_check-mark

character_check-mark

1920×1080

16:9

29.97p

20

AVC

[FHD/8bit/24M/24p]

character_check-mark

character_check-mark

1920×1080

16:9

23.98p

24

AVC

[System Frequency]: [50.00Hz (PAL)]

[Rec Quality]

[Image Area of Video]

Resolution

Aspect ratio

(A)

(B)

(C)

FULL

icon_pixel_by_pixel_table

[4K/10bit/100M/50p]

character_check-mark

character_check-mark

3840×2160

16:9

50.00p

100

HEVC

[4K/10bit/72M/25p]

character_check-mark

character_check-mark

3840×2160

16:9

25.00p

72

HEVC

[4K/8bit/100M/25p]

character_check-mark

character_check-mark

3840×2160

16:9

25.00p

100

AVC

[FHD/8bit/28M/50p]

character_check-mark

character_check-mark

1920×1080

16:9

50.00p

28

AVC

[FHD/8bit/20M/25p]

character_check-mark

character_check-mark

1920×1080

16:9

25.00p

20

AVC


character_diamond[Rec. File Format]: [MOV]

bullet02YUV, Bit value, Image compression:

[422/10-I] recording quality: 4:2:2, 10 bit, ALL-Intra

[422/10-L] recording quality: 4:2:2, 10 bit, Long GOP

[420/10-L] recording quality: 4:2:0, 10 bit, Long GOP

bullet02Audio format: LPCM (4ch)

Even if [4ch Mic Input] is set to [OFF], 4 channels are recorded to the audio tracks of the video.


icon_mode-p-motion_table: Only available in Creative Video mode.

(A) Recording frame rate

(B) Bit rate (Mbps)

(C) Video compression format (HEVC: H.265/HEVC, AVC: H.264/MPEG-4 AVC)

[System Frequency]: [59.94Hz (NTSC)]

[Rec Quality]

icon_mode-p-motion_table

[Image Area of Video]

Resolution

Aspect ratio

(A)

(B)

(C)

FULL

icon_pixel_by_pixel_table

[5.8K/30p/420/10-L]

character_check-mark

character_check-mark


5760×4320

4:3

29.97p

200

HEVC

[5.8K/24p/420/10-L]

character_check-mark

character_check-mark


5760×4320

4:3

23.98p

200

HEVC

[5.7K/60p/420/10-L]

character_check-mark

character_check-mark


5728×3024

17:9

59.94p

300

HEVC

[5.7K/48p/420/10-L]

character_check-mark

character_check-mark


5728×3024

17:9

47.95p

300

HEVC

[5.7K/30p/420/10-L]

character_check-mark

character_check-mark


5728×3024

17:9

29.97p

200

HEVC

[5.7K/24p/420/10-L]

character_check-mark

character_check-mark


5728×3024

17:9

23.98p

200

HEVC

[4.4K/60p/420/10-L]

character_check-mark


character_check-mark

4352×3264

4:3

59.94p

300

HEVC

[4.4K/48p/420/10-L]

character_check-mark


character_check-mark

4352×3264

4:3

47.95p

300

HEVC

[C4K/120p/420/10-L]

character_check-mark

character_check-mark

character_check-mark

4096×2160

17:9

119.88p

300

HEVC

[C4K/60p/422/10-I(H)]character_asterisk


character_check-mark

character_check-mark

4096×2160

17:9

59.94p

800

AVC

[C4K/60p/422/10-I(L)]character_asterisk


character_check-mark

character_check-mark

4096×2160

17:9

59.94p

600

AVC

[C4K/60p/422/10-L]


character_check-mark

character_check-mark

4096×2160

17:9

59.94p

200

AVC

[C4K/60p/420/10-L]


character_check-mark

character_check-mark

4096×2160

17:9

59.94p

200

HEVC

[C4K/48p/422/10-I(H)]character_asterisk


character_check-mark

character_check-mark

4096×2160

17:9

47.95p

800

AVC

[C4K/48p/422/10-I(L)]character_asterisk


character_check-mark

character_check-mark

4096×2160

17:9

47.95p

600

AVC

[C4K/48p/422/10-L]


character_check-mark

character_check-mark

4096×2160

17:9

47.95p

200

AVC

[C4K/48p/420/10-L]


character_check-mark

character_check-mark

4096×2160

17:9

47.95p

200

HEVC

[C4K/30p/422/10-I]


character_check-mark

character_check-mark

4096×2160

17:9

29.97p

400

AVC

[C4K/30p/422/10-L]


character_check-mark

character_check-mark

4096×2160

17:9

29.97p

150

AVC

[C4K/30p/420/10-L]


character_check-mark

character_check-mark

4096×2160

17:9

29.97p

150

HEVC

[C4K/24p/422/10-I]


character_check-mark

character_check-mark

4096×2160

17:9

23.98p

400

AVC

[C4K/24p/422/10-L]


character_check-mark

character_check-mark

4096×2160

17:9

23.98p

150

AVC

[C4K/24p/420/10-L]


character_check-mark

character_check-mark

4096×2160

17:9

23.98p

150

HEVC

[4K/120p/420/10-L]

character_check-mark

character_check-mark

character_check-mark

3840×2160

16:9

119.88p

300

HEVC

[4K/60p/422/10-I(H)]character_asterisk


character_check-mark

character_check-mark

3840×2160

16:9

59.94p

800

AVC

[4K/60p/422/10-I(L)]character_asterisk


character_check-mark

character_check-mark

3840×2160

16:9

59.94p

600

AVC

[4K/60p/422/10-L]


character_check-mark

character_check-mark

3840×2160

16:9

59.94p

200

AVC

[4K/60p/420/10-L]


character_check-mark

character_check-mark

3840×2160

16:9

59.94p

200

HEVC

[4K/48p/422/10-I(H)]character_asterisk


character_check-mark

character_check-mark

3840×2160

16:9

47.95p

800

AVC

[4K/48p/422/10-I(L)]character_asterisk


character_check-mark

character_check-mark

3840×2160

16:9

47.95p

600

AVC

[4K/48p/422/10-L]


character_check-mark

character_check-mark

3840×2160

16:9

47.95p

200

AVC

[4K/48p/420/10-L]


character_check-mark

character_check-mark

3840×2160

16:9

47.95p

200

HEVC

[4K/30p/422/10-I]


character_check-mark

character_check-mark

3840×2160

16:9

29.97p

400

AVC

[4K/30p/422/10-L]


character_check-mark

character_check-mark

3840×2160

16:9

29.97p

150

AVC

[4K/30p/420/10-L]


character_check-mark

character_check-mark

3840×2160

16:9

29.97p

150

HEVC

[4K/24p/422/10-I]


character_check-mark

character_check-mark

3840×2160

16:9

23.98p

400

AVC

[4K/24p/422/10-L]


character_check-mark

character_check-mark

3840×2160

16:9

23.98p

150

AVC

[4K/24p/420/10-L]


character_check-mark

character_check-mark

3840×2160

16:9

23.98p

150

HEVC

[FHD/240p/422/10-I]

character_check-mark

character_check-mark


1920×1080

16:9

239.76p

800

AVC

[FHD/240p/422/10-L]

character_check-mark

character_check-mark


1920×1080

16:9

239.76p

200

AVC

[FHD/240p/420/10-L]

character_check-mark

character_check-mark


1920×1080

16:9

239.76p

200

HEVC

[FHD/120p/422/10-I]

character_check-mark

character_check-mark

character_check-mark

1920×1080

16:9

119.88p

400

AVC

[FHD/120p/422/10-L]

character_check-mark

character_check-mark

character_check-mark

1920×1080

16:9

119.88p

150

AVC

[FHD/120p/420/10-L]

character_check-mark

character_check-mark

character_check-mark

1920×1080

16:9

119.88p

150

HEVC

[FHD/60p/422/10-I]


character_check-mark

character_check-mark

1920×1080

16:9

59.94p

200

AVC

[FHD/60p/422/10-L]


character_check-mark

character_check-mark

1920×1080

16:9

59.94p

100

AVC

[FHD/60p/420/10-L]


character_check-mark

character_check-mark

1920×1080

16:9

59.94p

100

HEVC

[FHD/48p/422/10-I]


character_check-mark

character_check-mark

1920×1080

16:9

47.95p

200

AVC

[FHD/48p/422/10-L]


character_check-mark

character_check-mark

1920×1080

16:9

47.95p

100

AVC

[FHD/48p/420/10-L]


character_check-mark

character_check-mark

1920×1080

16:9

47.95p

100

HEVC

[FHD/30p/422/10-I]


character_check-mark

character_check-mark

1920×1080

16:9

29.97p

200

AVC

[FHD/30p/422/10-L]


character_check-mark

character_check-mark

1920×1080

16:9

29.97p

100

AVC

[FHD/30p/420/10-L]


character_check-mark

character_check-mark

1920×1080

16:9

29.97p

100

HEVC

[FHD/24p/422/10-I]


character_check-mark

character_check-mark

1920×1080

16:9

23.98p

200

AVC

[FHD/24p/422/10-L]


character_check-mark

character_check-mark

1920×1080

16:9

23.98p

100

AVC

[FHD/24p/420/10-L]


character_check-mark

character_check-mark

1920×1080

16:9

23.98p

100

HEVC

[System Frequency]: [50.00Hz (PAL)]

[Rec Quality]

icon_mode-p-motion_table

[Image Area of Video]

Resolution

Aspect ratio

(A)

(B)

(C)

FULL

icon_pixel_by_pixel_table

[5.8K/25p/420/10-L]

character_check-mark

character_check-mark


5760×4320

4:3

25.00p

200

HEVC

[5.7K/50p/420/10-L]

character_check-mark

character_check-mark


5728×3024

17:9

50.00p

300

HEVC

[5.7K/25p/420/10-L]

character_check-mark

character_check-mark


5728×3024

17:9

25.00p

200

HEVC

[4.4K/50p/420/10-L]

character_check-mark


character_check-mark

4352×3264

4:3

50.00p

300

HEVC

[C4K/100p/420/10-L]

character_check-mark

character_check-mark

character_check-mark

4096×2160

17:9

100.00p

300

HEVC

[C4K/50p/422/10-I(H)]character_asterisk


character_check-mark

character_check-mark

4096×2160

17:9

50.00p

800

AVC

[C4K/50p/422/10-I(L)]character_asterisk


character_check-mark

character_check-mark

4096×2160

17:9

50.00p

600

AVC

[C4K/50p/422/10-L]


character_check-mark

character_check-mark

4096×2160

17:9

50.00p

200

AVC

[C4K/50p/420/10-L]


character_check-mark

character_check-mark

4096×2160

17:9

50.00p

200

HEVC

[C4K/25p/422/10-I]


character_check-mark

character_check-mark

4096×2160

17:9

25.00p

400

AVC

[C4K/25p/422/10-L]


character_check-mark

character_check-mark

4096×2160

17:9

25.00p

150

AVC

[C4K/25p/420/10-L]


character_check-mark

character_check-mark

4096×2160

17:9

25.00p

150

HEVC

[4K/100p/420/10-L]

character_check-mark

character_check-mark

character_check-mark

3840×2160

16:9

100.00p

300

HEVC

[4K/50p/422/10-I(H)]character_asterisk


character_check-mark

character_check-mark

3840×2160

16:9

50.00p

800

AVC

[4K/50p/422/10-I(L)]character_asterisk


character_check-mark

character_check-mark

3840×2160

16:9

50.00p

600

AVC

[4K/50p/422/10-L]


character_check-mark

character_check-mark

3840×2160

16:9

50.00p

200

AVC

[4K/50p/420/10-L]


character_check-mark

character_check-mark

3840×2160

16:9

50.00p

200

HEVC

[4K/25p/422/10-I]


character_check-mark

character_check-mark

3840×2160

16:9

25.00p

400

AVC

[4K/25p/422/10-L]


character_check-mark

character_check-mark

3840×2160

16:9

25.00p

150

AVC

[4K/25p/420/10-L]


character_check-mark

character_check-mark

3840×2160

16:9

25.00p

150

HEVC

[FHD/200p/422/10-I]

character_check-mark

character_check-mark


1920×1080

16:9

200.00p

800

AVC

[FHD/200p/422/10-L]

character_check-mark

character_check-mark


1920×1080

16:9

200.00p

200

AVC

[FHD/200p/420/10-L]

character_check-mark

character_check-mark


1920×1080

16:9

200.00p

200

HEVC

[FHD/100p/422/10-I]

character_check-mark

character_check-mark

character_check-mark

1920×1080

16:9

100.00p

400

AVC

[FHD/100p/422/10-L]

character_check-mark

character_check-mark

character_check-mark

1920×1080

16:9

100.00p

150

AVC

[FHD/100p/420/10-L]

character_check-mark

character_check-mark

character_check-mark

1920×1080

16:9

100.00p

150

HEVC

[FHD/50p/422/10-I]


character_check-mark

character_check-mark

1920×1080

16:9

50.00p

200

AVC

[FHD/50p/422/10-L]


character_check-mark

character_check-mark

1920×1080

16:9

50.00p

100

AVC

[FHD/50p/420/10-L]


character_check-mark

character_check-mark

1920×1080

16:9

50.00p

100

HEVC

[FHD/25p/422/10-I]


character_check-mark

character_check-mark

1920×1080

16:9

25.00p

200

AVC

[FHD/25p/422/10-L]


character_check-mark

character_check-mark

1920×1080

16:9

25.00p

100

AVC

[FHD/25p/420/10-L]


character_check-mark

character_check-mark

1920×1080

16:9

25.00p

100

HEVC

[System Frequency]: [24.00Hz (CINEMA)]

[Rec Quality]

icon_mode-p-motion_table

[Image Area of Video]

Resolution

Aspect ratio

(A)

(B)

(C)

FULL

icon_pixel_by_pixel_table

[5.8K/24p/420/10-L]

character_check-mark

character_check-mark


5760×4320

4:3

24.00p

200

HEVC

[5.7K/48p/420/10-L]

character_check-mark

character_check-mark


5728×3024

17:9

48.00p

300

HEVC

[5.7K/24p/420/10-L]

character_check-mark

character_check-mark


5728×3024

17:9

24.00p

200

HEVC

[4.4K/48p/420/10-L]

character_check-mark


character_check-mark

4352×3264

4:3

48.00p

300

HEVC

[C4K/120p/420/10-L]

character_check-mark

character_check-mark

character_check-mark

4096×2160

17:9

120.00p

300

HEVC

[C4K/24p/422/10-I]


character_check-mark

character_check-mark

4096×2160

17:9

24.00p

400

AVC

[C4K/24p/422/10-L]


character_check-mark

character_check-mark

4096×2160

17:9

24.00p

150

AVC

[C4K/24p/420/10-L]


character_check-mark

character_check-mark

4096×2160

17:9

24.00p

150

HEVC

[4K/120p/420/10-L]

character_check-mark

character_check-mark

character_check-mark

3840×2160

16:9

120.00p

300

HEVC

[4K/24p/422/10-I]


character_check-mark

character_check-mark

3840×2160

16:9

24.00p

400

AVC

[4K/24p/422/10-L]


character_check-mark

character_check-mark

3840×2160

16:9

24.00p

150

AVC

[4K/24p/420/10-L]


character_check-mark

character_check-mark

3840×2160

16:9

24.00p

150

HEVC

[FHD/120p/422/10-I]

character_check-mark

character_check-mark

character_check-mark

1920×1080

16:9

120.00p

400

AVC

[FHD/120p/422/10-L]

character_check-mark

character_check-mark

character_check-mark

1920×1080

16:9

120.00p

150

AVC

[FHD/120p/420/10-L]

character_check-mark

character_check-mark

character_check-mark

1920×1080

16:9

120.00p

150

HEVC

[FHD/24p/422/10-I]


character_check-mark

character_check-mark

1920×1080

16:9

24.00p

200

AVC

[FHD/24p/422/10-L]


character_check-mark

character_check-mark

1920×1080

16:9

24.00p

100

AVC

[FHD/24p/420/10-L]


character_check-mark

character_check-mark

1920×1080

16:9

24.00p

100

HEVC

  1. [Rec Quality] [(H)] indicates a bit rate of 800 Mbps and [(L)] indicates a bit rate of 600 Mbps.

[(H)] video cannot be recorded to SD cards.


character_diamond[Rec. File Format]: [Apple ProRes]

bullet02Audio format: LPCM (4ch)

Even if [4ch Mic Input] is set to [OFF], 4 channels are recorded to the audio tracks of the video.


icon_mode-p-motion_table: Only available in Creative Video mode.

(A) Recording frame rate

(B) Bit rate

(C) Video compression format (422 HQ: Apple ProRes 422 HQ, 422: Apple ProRes 422)

[System Frequency]: [59.94Hz (NTSC)]

[Rec Quality]

icon_mode-p-motion_table

[Image Area of Video]

Resolution

Aspect ratio

(A)

(B)

(C)

FULL

icon_pixel_by_pixel_table

[5.7K/30p/422 HQ]

character_check-mark

character_check-mark


5728×3024

17:9

29.97p

1.9 Gbps

422 HQ

[5.7K/30p/422]

character_check-mark

character_check-mark


5728×3024

17:9

29.97p

1.3 Gbps

422

[5.7K/24p/422 HQ]

character_check-mark

character_check-mark


5728×3024

17:9

23.98p

1.5 Gbps

422 HQ

[5.7K/24p/422]

character_check-mark

character_check-mark


5728×3024

17:9

23.98p

1.0 Gbps

422

[C4K/60p/422 HQ]


character_check-mark

character_check-mark

4096×2160

17:9

59.94p

1.9 Gbps

422 HQ

[C4K/60p/422]


character_check-mark

character_check-mark

4096×2160

17:9

59.94p

1.3 Gbps

422

[C4K/30p/422 HQ]


character_check-mark

character_check-mark

4096×2160

17:9

29.97p

972 Mbps

422 HQ

[C4K/30p/422]


character_check-mark

character_check-mark

4096×2160

17:9

29.97p

648 Mbps

422

[C4K/24p/422 HQ]


character_check-mark

character_check-mark

4096×2160

17:9

23.98p

778 Mbps

422 HQ

[C4K/24p/422]


character_check-mark

character_check-mark

4096×2160

17:9

23.98p

519 Mbps

422

[FHD/60p/422 HQ]


character_check-mark

character_check-mark

1920×1080

16:9

59.94p

454 Mbps

422 HQ

[FHD/60p/422]


character_check-mark

character_check-mark

1920×1080

16:9

59.94p

302 Mbps

422

[FHD/30p/422 HQ]


character_check-mark

character_check-mark

1920×1080

16:9

29.97p

227 Mbps

422 HQ

[FHD/30p/422]


character_check-mark

character_check-mark

1920×1080

16:9

29.97p

151 Mbps

422

[FHD/24p/422 HQ]


character_check-mark

character_check-mark

1920×1080

16:9

23.98p

181 Mbps

422 HQ

[FHD/24p/422]


character_check-mark

character_check-mark

1920×1080

16:9

23.98p

121 Mbps

422

[System Frequency]: [50.00Hz (PAL)]

[Rec Quality]

icon_mode-p-motion_table

[Image Area of Video]

Resolution

Aspect ratio

(A)

(B)

(C)

FULL

icon_pixel_by_pixel_table

[5.7K/25p/422 HQ]

character_check-mark

character_check-mark


5728×3024

17:9

25.00p

1.6 Gbps

422 HQ

[5.7K/25p/422]

character_check-mark

character_check-mark


5728×3024

17:9

25.00p

1.1 Gbps

422

[C4K/50p/422 HQ]


character_check-mark

character_check-mark

4096×2160

17:9

50.00p

1.6 Gbps

422 HQ

[C4K/50p/422]


character_check-mark

character_check-mark

4096×2160

17:9

50.00p

1.1 Gbps

422

[C4K/25p/422 HQ]


character_check-mark

character_check-mark

4096×2160

17:9

25.00p

811 Mbps

422 HQ

[C4K/25p/422]


character_check-mark

character_check-mark

4096×2160

17:9

25.00p

541 Mbps

422

[FHD/50p/422 HQ]


character_check-mark

character_check-mark

1920×1080

16:9

50.00p

378 Mbps

422 HQ

[FHD/50p/422]


character_check-mark

character_check-mark

1920×1080

16:9

50.00p

252 Mbps

422

[FHD/25p/422 HQ]


character_check-mark

character_check-mark

1920×1080

16:9

25.00p

189 Mbps

422 HQ

[FHD/25p/422]


character_check-mark

character_check-mark

1920×1080

16:9

25.00p

126 Mbps

422

[System Frequency]: [24.00Hz (CINEMA)]

[Rec Quality]

icon_mode-p-motion_table

[Image Area of Video]

Resolution

Aspect ratio

(A)

(B)

(C)

FULL

icon_pixel_by_pixel_table

[5.7K/24p/422 HQ]

character_check-mark

character_check-mark


5728×3024

17:9

24.00p

1.5 Gbps

422 HQ

[5.7K/24p/422]

character_check-mark

character_check-mark


5728×3024

17:9

24.00p

1.0 Gbps

422

[C4K/24p/422 HQ]


character_check-mark

character_check-mark

4096×2160

17:9

24.00p

779 Mbps

422 HQ

[C4K/24p/422]


character_check-mark

character_check-mark

4096×2160

17:9

24.00p

519 Mbps

422

[FHD/24p/422 HQ]


character_check-mark

character_check-mark

1920×1080

16:9

24.00p

182 Mbps

422 HQ

[FHD/24p/422]


character_check-mark

character_check-mark

1920×1080

16:9

24.00p

121 Mbps

422


bullet02In this document, videos are indicated as follows according to their resolution:

– 5.8K (5760×4320) video: 5.8K video

– 5.7K (5728×3024) video: 5.7K video

– 4.4K (4352×3264) video: 4.4K video

– C4K (4096×2160) video: C4K video

– 4K (3840×2160) video: 4K video

– Full High Definition (1920×1080) video: FHD video


icon_info_s

bullet02Since the camera employs the VBR recording format, the bit rate is changed automatically depending on the subject to record. As a result, video recording time is shortened when a fast-moving subject is recorded.

bullet02Videos in ALL-Intra and 4:2:2 10-bit formats and videos whose [Rec. File Format] is [Apple ProRes] are intended for editing on a PC used for video production.

icon_related-info_s

bullet02You can register a combination of [System Frequency], [Rec. File Format], [Image Area of Video], and [Rec Quality] to My List. (character_reference[add to list])


character_diamond[Filtering]

When [Rec. File Format] is set to [MOV] or [Apple ProRes], you can specify items such as frame rate, number of pixels (resolution), and compression format (YUV, bit value, image compression), and just display recording qualities that meet those conditions.


  1. In the [Rec Quality] setting screen, press [DISP.].

gui_favorite-registration-video1_ntsc_eng

  1. Press character_upcharacter_down to select a setting item and then press button_menu-set or button_joy-stick-push_s.

bullet02Settings: [Frame Rate]/[Resolution]/[Codec]

  1. Press character_upcharacter_down to select the filtering conditions and then press button_menu-set or button_joy-stick-push_s.

  1. Press [DISP.] to confirm the setting.

bullet02You are returned to the [Rec Quality] setting screen.


Clearing the filtering conditions

Select [ANY] in Step 3.

bullet02The filtering conditions are also cleared when you do the following:

– Change the [Rec. File Format]

– Change the [System Frequency]

– Select a recording quality from [Rec Quality (My List)]


icon_info_s

bullet02When you change recording quality using a filter, the current filtering conditions are stored.


character_diamond[add to list]

Select a recording quality and register it in My List. The recording quality you register can be set in [Rec Quality (My List)].


In the [Rec Quality] setting screen, press [Q].

bullet02The following settings are also registered at the same time:

– [System Frequency]

– [Rec. File Format]

– [Image Area of Video]

gui_favorite-registration-video1_ntsc_eng


Setting or deleting in My List

  1. Select [Rec Quality (My List)].

bullet02button_menu-set character_arrow [icon_movie] character_arrow [icon_video-image-format] character_arrow [Rec Quality (My List)]

  1. Press character_upcharacter_down to select a setting item and then press button_menu-set or button_joy-stick-push_s.

bullet02You cannot select setting items that have different system frequencies.

bullet02To delete from My List, select the item and press [Q].


Setting from the control panel

It is possible to display the My List of recording qualities from the control panel in [icon_mode-p-motion_table]/[S&Q] mode or when [Video-Priority Display] is set.


Touch the recording quality item.

bullet02When already registered in My List, the [Rec Quality (My List)] setting screen is displayed.

When not yet registered, the [Rec Quality] setting screen is displayed.

bullet02[Rec Quality (My List)] and [Rec Quality] switch each time you press the [DISP.] button.

bullet02The next time the setting screen is displayed, the screen last used is displayed.

gui_video_control_panel1


icon_info_s

bullet02Up to 12 types of recording quality can be registered.
