Connecting to “LUMIX Lab”

character_bullet-largeInstalling “LUMIX Lab”

character_bullet-largeConnecting to a Smartphone (Bluetooth Connection)


Support is now available for “Panasonic LUMIX Lab” (“LUMIX Lab” hereunder), the smartphone app. You can perform [LUT Library] operations and transfer images by connecting to a smartphone on which “LUMIX Lab” is installed.


Installing “LUMIX Lab”

“LUMIX Lab” is an application for smartphones provided by Panasonic.


icon_care_s

Supported OS

Android™: Android 10 or higher

iOS: iOS 15 or higher


  1. Connect the smartphone to a network.

  1. (Android) Select “Google Play™ Store”.

(iOS) Select “App Store”.

  1. Enter “LUMIX” or “panasonic lumix lab” into the search box.

  1. Select and install the “Panasonic LUMIX Lab” icon_lumix-lab.


icon_info_s

bullet02This can also be downloaded via the QR code displayed with [REAL TIME LUT].

bullet02Use the latest version.

bullet02Supported OSs are current as of October 2024 and are subject to change.

bullet02Read the [Help] in the “LUMIX Lab” menu for further details on how to operate.

bullet02The app may not operate correctly depending on your smartphone.

For information on the “LUMIX Lab”, refer to the following support site:

https://panasonic.jp/support/global/cs/dsc/

(English only)


Connecting to a Smartphone (Bluetooth Connection)

Follow a simple connection setup procedure (pairing) to connect to a smartphone that supports Bluetooth Low Energy.

bullet02For the first-time connection, pairing settings are required.

When connecting the second and subsequent times, the connection is automatic when you turn on the camera’s Bluetooth function.


icon_care_s

Supported smartphones

Android™: Android 10 or higher with Bluetooth 4.0 or higher (excluding those that do not support Bluetooth Low Energy)

iOS: iOS 15 or higher

bullet02Turn on the Bluetooth function on the smartphone beforehand.

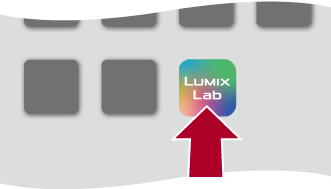

  1. On the smartphone, start up “LUMIX Lab”.

image_lab-connect01

  1. View the content in the displayed guidance and start using the app.

  1. Switch to the [Camera] screen and select [Pair The Camera].

image_lab-connect02

(A) [Pair The Camera]

  1. Set the camera to Bluetooth pairing standby state.

character_bullet-largebutton_menu-set character_arrow [icon_setup-menu] character_arrow [icon_setup-inout] character_arrow [Bluetooth] character_arrow [Bluetooth Function] character_arrow [ON]

bullet02The camera enters the pairing standby state.

bullet02When the camera is detected, it is displayed in “LUMIX Lab”.

  1. Select the camera to be connected in “LUMIX Lab”.

bullet02Pairing is executed when you select [Pairing] in the confirmation screen.


icon_info_s

bullet02The paired smartphone is registered as a paired device.

bullet02Even if you set up pairing with more than one smartphone, you can only connect to one smartphone at a time.

bullet02When pairing takes some time, canceling the pairing settings on both the smartphone and camera and re-establishing the connection may result in the camera being detected correctly.

bullet02During Bluetooth connection, [icon_bluetooth_s] is displayed in the recording screen.

When the Bluetooth function is enabled, but a connection is not established with the smartphone, [icon_bluetooth_s] appears translucent.

bullet02Up to 16 smartphones can be registered.

If you try to register more than 16 smartphones, the registration information will be deleted from the oldest first.

bullet02It is not possible to connect “LUMIX Lab” and “LUMIX Sync” to the camera at the same time.


character_diamondEnd Bluetooth Connection

To terminate the Bluetooth connection, turn off the Bluetooth function of the camera.


button_menu-set character_arrow [icon_setup-menu] character_arrow [icon_setup-inout] character_arrow [Bluetooth] character_arrow [Bluetooth Function] character_arrow Select [OFF]


icon_info_s

bullet02Even if you terminate the connection, the pairing information for it will not be deleted.


character_diamondCanceling Pairing

  1. Cancel the pairing setting of the camera.

bullet02button_menu-set character_arrow [icon_setup-menu] character_arrow [icon_setup-inout] character_arrow [Bluetooth] character_arrow [Pairing] character_arrow [Delete]

  1. Select the smartphone for which to cancel the pairing.


icon_info_s

bullet02Also cancel the pairing setting on the smartphone.

bullet02When [Reset] in the [Setup] ([Setting]) menu is used to reset the network settings, the information for registered devices is deleted.
