Importing Images to a PC

If you connect the camera to a PC, you can copy the recorded images to the PC.

You will need to use software that is compatible with the recorded video format in order to play back or edit video on the PC.

You can also use software for processing and editing RAW images. ( character_reference Installing Software)

Copying Images to a PC

After connecting to the PC, you can copy the recorded images by dragging files and folders on this camera to the PC.

icon_care_s

The camera can be connected to a PC running any of the following OSs which can detect mass storage devices.

Supported OS

Windows: Windows 10, Windows 11

Mac: macOS 10.15.3 to 10.15.7, 11.0 to 11.7, 12.0 to 12.6, 13.0 to 13.2

Mac:

Supported by “Final Cut Pro X”.

For details on “Final Cut Pro X”, please contact Apple Inc.

Getting started:

Turn on the camera and PC.

Connect the camera and PC with the USB connection cable. (USB port)

Press to select [PC(Storage)] and then press or .

Windows: The drive (“LUMIX”) is displayed in [This PC].

Mac: The drive (“LUMIX”) is displayed on the desktop.

Drag the files and folders from the camera to the PC.

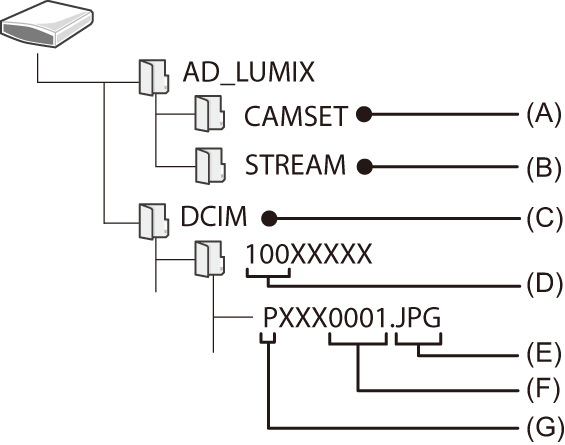

character_diamond Folder Structure Inside Card

image_folder

(A) The camera’s setup information

(B) Streaming Settings

(D) Folder number

(E) JPG: JPEG format pictures

RW2: RAW format pictures

MP4: MP4 videos

MOV: MOV videos, Apple ProRes videos

(F) File number

(G) Color space

P: sRGB

_: AdobeRGB

icon_hints_s

If [USB Mode] is set to [PC(Storage)] in the [Setup] ([IN/OUT]) menu, the camera will be automatically connected to the PC without the [USB Mode] selection screen being displayed. ( character_reference [USB Mode])

icon_info_s

Take care not to turn off the camera while images are being imported.

After importing of the images is completed, perform the operation to safely remove the USB connection cable on the PC.

Turn off the camera and disconnect the USB connection cable before removing the card from the camera. Otherwise, the recorded data may be damaged.

Installing Software

Install the software to process and edit RAW images.

icon_care_s

To download the software, your PC needs to be able to connect to the internet.

Supported OSs are current as of April 2023 and are subject to change.

character_diamond SILKYPIX Developer Studio SE

This software processes and edits RAW images.

Edited images can be saved in a format (JPEG, TIFF, etc.) that can be displayed on a PC.

Check the following site and then download and install the software:

http://www.isl.co.jp/SILKYPIX/english/p/

Operating environment

Supported OS

Windows: Windows 10 (64 bit), Windows 11

Mac: macOS 10.13 to 10.15, 11, 12, 13

For more information such as how to use “SILKYPIX Developer Studio”, refer to the Help or the Adwaa’s support site.
