Panasonic

[Filter Settings]

character_bullet-large[Simultaneous Record w/o Filter]


icon_mode-photoicon_mode-movie

icon_mode-ia_grayicon_mode-picon_mode-aicon_mode-sicon_mode-micon_mode-creative-motionicon_mode-slow-and-quick-motion_gray

This mode records with additional image effects (filters).

You can adjust the effect for each filter.

In addition, you can simultaneously take pictures without effects.


  1. Set the [Filter Effect].

character_bullet-largebutton_menu-set character_arrow [icon_picture]/[icon_movie] character_arrow [icon_photo-quality] character_arrow [Filter Settings] character_arrow [Filter Effect] character_arrow [SET]

gui_photo-filter1_eng

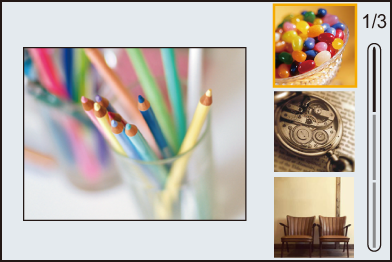

  1. Select the filter.

character_bullet-largePress character_upcharacter_down to select, and then press button_menu-set or button_joy-stick-push_s.

character_bullet-largeYou can also select the image effect (filter) by touching the sample picture.


bullet02Press [DISP.] to switch the screen in the order of normal display and guide display.

The guide display shows the description of each filter.

gui_cre-con-1


character_diamondAdjusting the Filter Effect

You can adjust the filter effect.


  1. Select the filter.

  1. On the recording screen, press [WB].

  1. Rotate image_front-dial_s, image_rear-dial_s or button_control-dial_s to set.

bullet02To return to the recording screen, press [WB] again.

bullet02When the filter effect is adjusted, the filter icon on the recording screen is indicated with [character_asterisk-3].

gui_creative-contorl-ajust7


Filter

Items that can be adjusted

[Expressive]

Vividness

[Retro]

Coloring

[Old Days]

Contrast

[High Key]

Coloring

[Low Key]

Coloring

[Sepia]

Contrast

[Cross Process]

Coloring

[Bleach Bypass]

Contrast

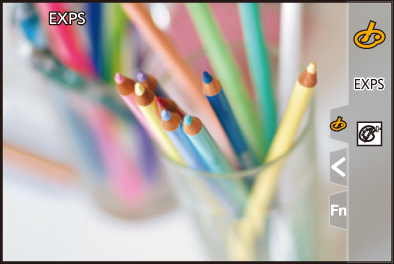

character_diamondSetting a Filter with Touch Operation

icon_care_s

bullet02The default settings are for the Touch Tab to not be displayed.

Set [Touch Tab] to [ON] in [Touch Settings] in the [Custom] ([Operation]) menu. (character_reference[Touch Settings])


  1. Touch [icon_touch-tab-cre-con_l].


  1. Touch the item to set.


[icon_touch-filter-on]: Filter on/off


[icon_touch-pop-filter]: Filter


[icon_touch-panorama-ajust]: Filter effect adjustment

gui_filter-select-touch


icon_info_s

bullet02White balance will be fixed to [AWB] and the flash will be fixed to [icon_forced-flash-off] (Forced Flash Off).

bullet02The upper limit to ISO sensitivity is [6400].

bullet02Depending on the filter, the recording screen may seem as if frames are missed.

bullet02[Filter Effect] is not available when using the following function:

– High Resolution mode

– [Live View Composite]

– [Live Cropping]

icon_related-info_s

bullet02When displaying the [Filter Effect] setting screen using the Fn button, pressing [DISP.] displays the filter selection screen.


[Simultaneous Record w/o Filter]

icon_mode-photoicon_mode-movie_gray

icon_mode-ia_grayicon_mode-picon_mode-aicon_mode-sicon_mode-micon_mode-creative-motion_grayicon_mode-slow-and-quick-motion_gray

You can simultaneously take pictures with no added filter effects.


button_menu-set character_arrow [icon_picture]/[icon_movie] character_arrow [icon_photo-quality] character_arrow [Filter Settings] character_arrow Select [Simultaneous Record w/o Filter]


Settings: [ON]/[OFF]


icon_info_s

bullet02[Simultaneous Record w/o Filter] is not available when using the following functions:

– Burst recording

– [Time Lapse Shot]

– [Stop Motion Animation]

– [RAW+FINE]/[RAW+STD.]/[RAW] ([Picture Quality])

– [Bracketing]
