Recording Using Touch Functions

character_bullet-largeTouch AF/Touch Shutter

character_bullet-largeTouch AE


Touch AF/Touch Shutter

icon_mode-photoicon_mode-movie_gray

icon_mode-iaicon_mode-picon_mode-aicon_mode-sicon_mode-micon_mode-creative-motion_grayicon_mode-slow-and-quick-motion_gray

Touch functions allow you to focus on the point that you touch, release the shutter, etc.


icon_care_s

bullet02With the default settings, the Touch Tab is not displayed.

Set [Touch Tab] to [ON] in [Touch Settings] in the [Custom] ([Operation]) menu. (character_reference[Touch Settings])

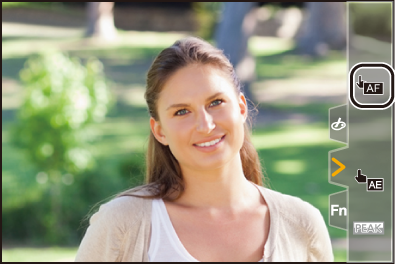

  1. Touch [icon_touch-tab_l].

  1. Touch the icon.

character_bullet-largeThe icon switches each time you touch it.

gui_touch-shutter1


icon_touch-touch-af-on-mark (Touch AF)

Focus on the touched position.


icon_touch-touch-shutter-on-mark (Touch Shutter)

Record with focus on the touched position.


icon_touch-touch-shutter-off-mark (OFF)

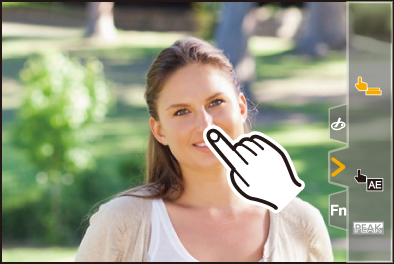

  1. (When set to anything other than OFF) Touch the subject.

gui_touch-shutter3


icon_info_s

bullet02When the Touch Shutter fails, the AF area first turns red and then disappears.

icon_related-info_s

bullet02For information about operations to move the AF area (character_referenceAF Area Operations)

bullet02It is also possible to optimize the focus and brightness on the touched position:

(character_referenceFocus on and Adjust Brightness for the Touched Position ([AF+AE]))


Touch AE

icon_mode-photoicon_mode-movie

icon_mode-iaicon_mode-picon_mode-aicon_mode-sicon_mode-micon_mode-creative-motionicon_mode-slow-and-quick-motion

This function adjusts the brightness according to a touched position.

When a subject’s face appears dark, you can make the screen brighter to match the face.


icon_care_s

bullet02With the default settings, the Touch Tab is not displayed.

Set [Touch Tab] to [ON] in [Touch Settings] in the [Custom] ([Operation]) menu. (character_reference[Touch Settings])


  1. Touch [icon_touch-tab_l].

  1. Touch [icon_touch-touch-ae-on-mark].

character_bullet-largeThe Touch AE settings screen appears.

image_touch-ae-2

  1. Touch the subject to which you wish to adjust the brightness.

bullet02To return the position to which to adjust the brightness to the center, touch [Reset].

gui_touch-ae-4_eng

  1. Touch [Set].


character_diamondHow to Disable Touch AE

Touch [icon_ae-select-off_s].


icon_info_s

bullet02When the following function is being used, Touch AE is not available:

– [Live Cropping]

icon_related-info_s

bullet02You can also adjust both the focus and brightness to those of the position you touch. (At this time, Touch AE is not available):

(character_referenceFocus on and Adjust Brightness for the Touched Position ([AF+AE]))
