Quick Menu Customization

Register to the Quick Menu

You can change Quick menu items depending on the recording mode.

Additionally, you can change the items to display on the Quick menu and their order to suit your preferences.

For information about Quick menu operation methods (Quick Menu)

Register to the Quick Menu

Change the menus to be displayed in the Quick menu.

These can be set separately for []/[S&Q] mode (Video) and for other recording modes (Photo).

1. Select [Q.MENU Settings].

[] [] [Q.MENU Settings] [Item Customize (Photo)]/[Item Customize (Video)]

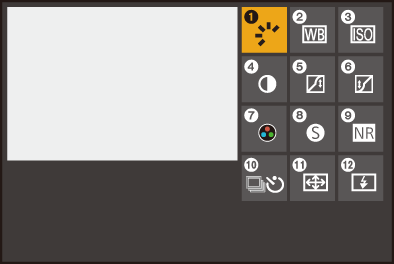

2. Select the item position (1 to 12).

Press to select the position and then press or .

Selection is also possible by rotating .

Directions on the diagonal can also be selected using the joystick.

3. Find the function to register.

Rotate to select the sub tab where the function to register is categorized (Menu Items That Can Be Registered) and then press or .

You can also select by pressing to select the sub tab, pressing or rotating , and then pressing .

Each press of [Q] switches between tabs [1] and [2].

4. Register menu items.

Press to select an item and then press or .

Selection is also possible by rotating or .

Select items with [>] by selecting the item again.

Menu Items That Can Be Registered

[1] tab

[Image Quality]

[Exposure Comp.] (Exposure Compensation)

[Dual Native ISO Setting] ([Dual Native ISO Setting])

[Sensitivity] (ISO Sensitivity)

[White Balance] (White Balance (WB))

[Photo Style] ([Photo Style])

[Metering Mode] ([Metering Mode])

[Aspect Ratio] ([Aspect Ratio])

[Picture Quality] ([Picture Quality])

[Picture Size] ([Picture Size])

[Long Exposure NR] ([Long Exposure NR])

[Min. Shutter Speed] ([Min. Shutter Speed])

[i.Dynamic Range] ([i.Dynamic Range])

[Color Shading Compensation] ([Color Shading Compensation])

[Filter Effect] ([Filter Settings])

[Exposure Mode] (Setting the Exposure for Recording Videos)

[Synchro Scan] ([Synchro Scan])

[Focus/Shutter]

[AF Mode] (Selecting the AF Mode)

[AF Detection Setting] (Automatic Detection)

[Detecting Subject] (Automatic Detection)

[AF Custom Setting(Photo)] ([AF Custom Setting(Photo)])

[AF Custom Setting(Video)] ([AF Custom Setting(Video)])

[Focus Peaking] ([Focus Peaking])

[Focus Peaking Sensitivity] ([Focus Peaking])

[1-Area AF Moving Speed] ([1-Area AF Moving Speed])

[Flash]

[Flash Mode] ([Flash Mode])

[Flash Adjust.] ([Flash Adjust.])

[Wireless Flash Setup] (Recording Using a Wireless Flash)

[Others (Photo)]

[Drive Mode Setting] (Selecting the Drive Mode)

[Bracketing] (Bracket Recording)

[Silent Mode] ([Silent Mode])

[Image Stabilizer] ([Operation Mode])

[Shutter Type] ([Shutter Type])

[Ex. Tele Conv.] (Extended Tele Conversion)

[Image Format]

[Rec. File Format] ([Rec. File Format])

[Rec Quality] ([Rec Quality])

[Rec Quality (My List)] ([add to list])

[Slow & Quick Setting] (Slow & Quick Video)

[Time Code Display] (Time Code)

[Audio]

[Audio Information] ([Audio Information])

[Sound Rec Level Disp.] ([Sound Rec Level Disp.])

[Sound Rec Level Adj.] ([Sound Rec Level Adj.])

[Sound Rec Quality] ([Sound Rec Quality])

[Sound Rec Level Limiter] ([Sound Rec Level Limiter])

[4ch Mic Input] ([4ch Mic Input])

[XLR Mic Adaptor Setting] (XLR Microphone Adaptor (Optional))

[Sound Monitoring Channel] ([Sound Monitoring Channel])

[Others (Video)]

[Image Stabilizer] ([Operation Mode])

[E-Stabilization (Video)] ([E-Stabilization (Video)])

[Boost I.S. (Video)] ([Boost I.S. (Video)])

[Image Area of Video] ([Image Area of Video])

[Focus Transition] ([Focus Transition])

[Live Cropping] ([Live Cropping])

[2] tab

[Monitor / Display]

[Constant Preview] ([Constant Preview])

[Level Gauge] ([Level Gauge])

[Histogram] ([Histogram])

[Luminance Spot Meter] ([Luminance Spot Meter])

[Frame Marker] ([Frame Marker])

[Photo Grid Line] ([Photo Grid Line])

[Live View Boost] ([Live View Boost])

[Monochrome Live View] ([Monochrome Live View])

[Night Mode] ([Night Mode])

[LVF/Monitor Disp. Set] ([LVF/Monitor Disp. Set])

[Video-Priority Display] ([Video-Priority Display])

[Zebra Pattern] ([Zebra Pattern])

[LUT View Assist (Monitor)] ([LUT View Assist (Monitor)])

[LUT View Assist (HDMI)] ([LUT View Assist (HDMI)])

[HLG View Assist (Monitor)] ([HLG View Assist])

[HLG View Assist (HDMI)] ([HLG View Assist])

[Sheer Overlay] ([Sheer Overlay])

[I.S. Status Scope] ([I.S. Status Scope])

[WFM/Vector Scope] ([WFM/Vector Scope])

[Anamorphic Desqueeze Display] ([Anamorphic Desqueeze Display])

[Color Bars] (Color Bars/Test Tone)

[Lens / Others]

[Focus Ring Control] ([Focus Ring Control])

[Lens Information] ([Lens Information])

[Card/File]

[Destination Card Slot] (Switching the Card to Display)

[IN/OUT]

[Streaming] (Streaming Function)

[Wi-Fi] (Wi-Fi / Bluetooth)

[Fan Mode] ([Fan Mode])

[Others]

[No Setting]

– Set when not using.

Quick Menu Detailed Settings

Change the appearance of the Quick menu and the operation of during menu display.

[] [] Select [Q.MENU Settings]

[Layout Style]

Changes the appearance of the Quick menu.

[MODE1]: Displays the live view and the menu simultaneously.

[MODE2]: Displays the menu in full screen.

[Front Dial Assignment]

Changes the operation of in the Quick menu.

[Item]: Selects menu items.

[Value]: Selects setting values.

[Item Customize (Photo)]

Customizes the Quick menu to display when the mode dial is set to [iA]/[P]/[A]/[S]/[M].

[Item Customize (Video)]

Customizes the Quick menu to display when the mode dial is set to []/[S&Q].
