[LUT Library] Function Has Been Enhanced

icon_mode-photo icon_mode-movie

icon_mode-ia icon_mode-p icon_mode-a icon_mode-s icon_mode-m icon_mode-creative-motion icon_mode-slow-and-quick-motion

Using the “Panasonic LUMIX Lab” smartphone app, you can register LUT files on the smartphone in the [LUT Library] on the camera. ( character_reference LUT Library Operations)

Insert a card on which a LUT file is saved into the camera.

Select [LUT Library].

button_menu-set [] [ icon_photo-quality ] [LUT Library]

gui_lut-library-06_eng

Select the registration destination.

Press character_up character_down to select, and then press button_menu-set or button_joy-stick-push_s .

If you select a registered item, the LUT file will be registered by overwriting.

gui_lut-library-07_eng

Select [Load].

Press button_menu-set or button_joy-stick-push_s .

You can change the display order of LUT files by selecting [Sorting].

You can change the registered name of LUT files by selecting [Edit Title].

The registered LUT file is deleted when you select [Delete].

gui_lut-library-08_eng

Select [Card Slot 1] or [Card Slot 2].

gui_lut-library-04_eng

Select the LUT file to load.

Press character_up character_down to select, and then press button_menu-set or button_joy-stick-push_s .

gui_lut-library-09_eng

icon_info_s

The firmware update registers 3 sample LUT files.

Up to 39 LUT files can be registered.

[Sorting], [Delete] and [Edit Title] are not possible with [Vlog_709].

[Sorting] and [Delete] are possible with the sample LUTs, but the default settings are restored when [Reset] is performed.

With LUT files that have the Photo Style information (base Photo Style) set at the time of creation (“.cube” format only), the base Photo Style icon is displayed.

The [LUT Library] is returned to the default settings when setup and custom settings are reset. Registered LUTs are deleted.

Base Photo Style of LUT files

With Real Time LUT, the Photo Style information (base Photo Style) set in the LUT file is recognized to determine the Photo Style.

You can add the base Photo Style information to the LUT files (“.cube” format only) you create yourself. Open the LUT file with a text editor and insert the Photo Style information under the title line.

If there is a feature for selecting the character code in the text editor, select UTF-8.

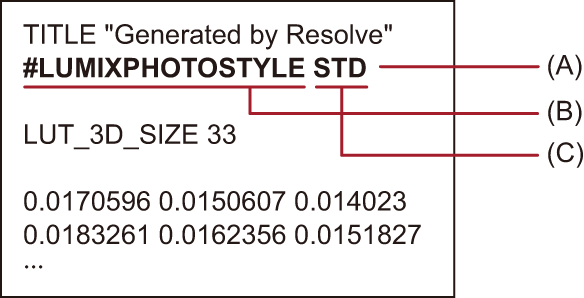

For example: LUT file (“.cube” format)

image_lut_file_cube

(A) Photo Style information

(B) Identifier tag

A half-width space is required between the identifier tag and the Photo Style tag.

If the Photo Style information is absent or if it is not set correctly, [V-Log] is used as the base Photo Style.

List of Photo Style Information

#LUMIXPHOTOSTYLE STD: [Standard]

#LUMIXPHOTOSTYLE VIVD: [Vivid]

#LUMIXPHOTOSTYLE NAT: [Natural]

#LUMIXPHOTOSTYLE LCLASN: [L.ClassicNeo]

#LUMIXPHOTOSTYLE FLAT: [Flat]

#LUMIXPHOTOSTYLE LAND: [Landscape]

#LUMIXPHOTOSTYLE PORT: [Portrait]

#LUMIXPHOTOSTYLE MONO: [Monochrome]

#LUMIXPHOTOSTYLE LMONO: [L.Monochrome]

#LUMIXPHOTOSTYLE LMONOD: [L.Monochrome D]

#LUMIXPHOTOSTYLE LMONOS: [L.Monochrome S]

#LUMIXPHOTOSTYLE LEICAMONO: [LEICA Monochrome]

#LUMIXPHOTOSTYLE CNED2: [Cinelike D2]

#LUMIXPHOTOSTYLE CNEV2: [Cinelike V2]

#LUMIXPHOTOSTYLE 709L: [Like709]

#LUMIXPHOTOSTYLE 2100HLG: [Like2100(HLG)]

#LUMIXPHOTOSTYLE 2100HLGF: [Like2100(HLG) Full Range]

#LUMIXPHOTOSTYLE VLOG: [V-Log]
