Taking Burst Pictures

icon_mode-photoicon_mode-movie_gray

icon_mode-iaicon_mode-picon_mode-aicon_mode-sicon_mode-micon_mode-creative-motion_grayicon_mode-slow-and-quick-motion_gray

Takes pictures continuously while the shutter button is pressed and held.

You can select burst recording settings to suit the recording conditions, including [H], [M], and [L] which enable burst recording with high image quality, and SH burst recording which takes burst pictures at ultra high speeds using an electronic shutter.


  1. Set the drive mode to [icon_burst1] (Burst Shot 1) or [icon_burst2] (Burst Shot 2).

character_bullet-largeSet the drive mode dial. (character_referenceSelecting the Drive Mode)


bullet02Configure the burst settings for each of [icon_burst1] and [icon_burst2].

  1. Select the burst rate.

character_bullet-largebutton_menu-set character_arrow [icon_picture] character_arrow [icon_photo-other] character_arrow [Burst Shot Setting] character_arrow [Burst Shot 1 Setting]/[Burst Shot 2 Setting]


bullet02With the default settings, [H] is set for [icon_burst1] and [SH] is set for [icon_burst2].

gui_photo-burst1_eng


[SH]

Takes burst pictures at ultra high speed with the electronic shutter, 30 frames/second.


[H]

Takes high-speed burst pictures.


[M]

Takes medium-speed burst pictures.


[L]

Takes low-speed burst pictures.


  1. Close the menu.

character_bullet-largePress the shutter button halfway.

  1. Start recording.

bullet02Takes burst pictures while the shutter button is pressed fully.


character_diamondBurst Rate


Mechanical shutter, electronic front curtain

Electronic shutter

Live View when taking burst pictures

[SH]

30 frames/second

None

[H]

(High speed)

9 frames/second ([AFS]/[MF])

7 frames/second ([AFC])

9 frames/second ([AFS]/[MF])

8 frames/second ([AFC])

None ([AFS]/[MF])

Available ([AFC])

[M]

(Medium speed)

5 frames/second

Available

[L]

(Low speed)

2 frames/second

Available

bullet02The burst rate may be lower depending on the settings for recording such as [Picture Size] and focus mode.


character_diamondMaximum Number of Frames Recordable


[Picture Quality]


[FINE]/[STD.]

[RAW+FINE]/[RAW+STD.]

[RAW]

[SH]

200 framescharacter_asterisk1

[H]

(High speed)

300 frames or morecharacter_asterisk2

200 frames or morecharacter_asterisk2

[M]

(Medium speed)

[L]

(Low speed)

bullet02When recording under the test conditions specified by Panasonic.

Recording conditions may reduce the maximum number of frames recordable.

  1. Recording stops when the maximum number of frames recordable is reached.

  1. The burst rate will become lower during recording but pictures can continue to be taken until the card becomes full.


character_diamondNumber of Pictures That Can Be Taken Continuously

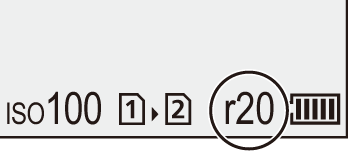

When you press the shutter button halfway, the number of pictures that can be taken continuously will appear on the recording screen.


Example) When 20 frames: [r20]

gui_burst-half_s

bullet02Once recording starts, the number of pictures that can be taken continuously will decrease.

– During [H]/[M]/[L] burst recording: When [r0] appears, the burst rate decreases.

– During SH burst recording: When [r0] appears, the burst recording stops.

bullet02When [r99+] is displayed on the recording screen, you can take 100 or more burst pictures.


character_diamondFocus when Taking Burst Pictures

Focus mode

[Focus/Shutter Priority] (character_reference[Focus/Shutter Priority])

[SH]

[H]

[M]/[L]

[AFS]

[FOCUS]

Fixed to the focus of the first frame

[BALANCE]

[RELEASE]

[AFC]

[FOCUS]

Estimated focus

Normal focus

[BALANCE]

Estimated focus

[RELEASE]

[MF]

Focus set with manual focus

bullet02When the subject is dark with [AFC], the focus is fixed to that of the first frame.

bullet02With estimated focus, the burst rate takes priority and the focus is estimated to the extent possible.

bullet02With normal focus, the burst rate may become slow.


character_diamondExposure when Taking Burst Pictures

Focus mode

[SH]

[H]

[M]/[L]

[AFS]

Fixed to the exposure of the first frame

The exposure is adjusted for each frame

[AFC]

The exposure is adjusted for each frame

[MF]

Fixed to the exposure of the first frame


icon_info_s

bullet02It may take a while to save burst pictures.

If you continue to take burst pictures while saving is in progress, the maximum number of frames recordable will be reduced.

When taking burst pictures, we recommend using a high-speed card.

bullet02Taking burst pictures does not work while you are using the following function:

– [Live View Composite]


Notes on SH burst recording

bullet02[Shutter Type] is fixed to [ELEC.].

bullet02There are limits on the shutter speed you can set during SH burst recording.

– [SH]: To a minimum of 1/30

bullet02The aperture will be fixed during burst recording.

bullet02The images recorded will be saved as a set of burst group pictures. (character_referenceGroup Images)
