Fn Buttons

character_bullet-largeRegister Functions to the Fn Buttons

character_bullet-largeUse the Fn Buttons


You can register functions to the Fn (Function) buttons. Additionally, you can register other functions to specialized buttons such as [WB] button, in the same way as with the Fn buttons.

Different functions can be set for both during recording and playback.


character_diamondFn Button Default Settings

parts_fn-button-location

Fn buttons

[Setting in REC mode]

[Setting in PLAY mode]

(1)

[Fn2]

[Preview]

[No Setting]

(2)

[WB]

[White Balance]

[No Setting]

(3)

[ISO]

[Sensitivity]

[No Setting]

(4)

[icon_expo_s]

[Exposure Comp.]

[No Setting]

(5)

Video rec. button

[Video Record]

[Video Record]

(6)

[LVF]

[LVF/Monitor Switch]

[LVF/Monitor Switch]

(7)

[button_af-mode]

[AF Mode]

[Card Slot Change]

(8)

[AF ON]

[AF-ON]

[Ratingcharacter_star-black3]

(9)

[Q]

[Q.MENU]

[Send Image (Smartphone)]

(10)

[Fn1]/[button_return]/[button_delete_s]

[Level Gauge]

bullet02Cannot be used as Fn buttons during playback.


parts_fn-button-location2

Fn buttons

[Setting in REC mode]

[Setting in PLAY mode]

(11)

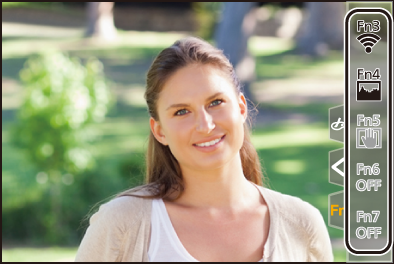

[Fn3]

[Wi-Fi]

bullet02Cannot be used as Fn buttons during playback.

[Fn4]

[Histogram]

[Fn5]

[Boost I.S. (Video)]

[Fn6]

[Off (Disable Press and Hold)]

[Fn7]

[Off (Disable Press and Hold)]

(12)

image_fn-joystick

[No Setting]

(13)

image_fn-cursor

[No Setting]


Register Functions to the Fn Buttons

icon_care_s

bullet02With default settings, [Fn12] to [Fn16] on the joystick cannot be used.

When using functions, set the [Joystick Setting] in the [Custom] ([Operation]) menu to [Fn]. (character_reference[Joystick Setting])


  1. Select [Fn Button Set].

character_bullet-largebutton_menu-set character_arrow [icon_custom-menu] character_arrow [icon_custom-menu-operation] character_arrow [Fn Button Set] character_arrow [Setting in REC mode]/[Setting in PLAY mode]

  1. Select the button.

character_bullet-largePress character_upcharacter_down to select the button and then press button_menu-set or button_joy-stick-push_s.

character_bullet-largeSelection is also possible by rotating image_rear-dial_s or button_control-dial_s.


bullet02Press [DISP.] to change the page.

gui_fn-button-set02_eng

  1. Find the function to register.

character_bullet-largeRotate image_front-dial_s to select the sub tab where the function to register is categorized (character_referenceSetting Items ([Fn Button Set]/[Setting in REC mode]), Setting Items ([Fn Button Set]/[Setting in PLAY mode])) and then press button_menu-set or button_joy-stick-push_s.

character_bullet-largeYou can also select by pressing character_left to select the sub tab, pressing character_upcharacter_down or rotating button_control-dial_s, and then pressing character_right.

character_bullet-largeSwitch the [1] to [3] tabs by pressing [Q].

gui_fn-button-set05_eng

  1. Register the function.

character_bullet-largePress character_upcharacter_down to select a function and then press button_menu-set or button_joy-stick-push_s.

character_bullet-largeSelection is also possible by rotating image_rear-dial_s or button_control-dial_s.


bullet02Select items with [>] by selecting the item again.

bullet02Depending on the button, some functions cannot be registered.


icon_info_s

bullet02You can also touch [icon_fn-set] on the control panel (character_referenceControl Panel) to display the screen in Step 2.

bullet02You can also press and hold the Fn button (2 sec.) to display the screen in Step 4.

(This may not be displayed depending on the registered function and on the button type.)

icon_related-info_s

bullet02You can assign a function to the focus button of an interchangeable lens:

(character_reference[Lens Fn Button Setting])


character_diamondSetting Items ([Fn Button Set]/[Setting in REC mode])


[1] tab

icon_photo-quality[Image Quality]

bullet02[Exposure Comp.] (character_referenceExposure Compensation)

bullet02[Dual Native ISO Setting] (character_reference[Dual Native ISO Setting])

bullet02[Sensitivity] (character_referenceISO Sensitivity)

bullet02[White Balance] (character_referenceWhite Balance (WB))

bullet02[Photo Style] (character_reference[Photo Style])

bullet02[Apply LUT]

– Applies the LUT file that was set in [LUT] with either [REAL TIME LUT] or [MY PHOTO STYLE]. (character_referenceAdjusting Image Quality)

bullet02[Metering Mode] (character_reference[Metering Mode])

bullet02[Aspect Ratio] (character_reference[Aspect Ratio])

bullet02[Picture Quality] (character_reference[Picture Quality])

bullet02[Picture Size] (character_reference[Picture Size])

bullet02[1 Shot Spot Metering]

– Records with the metering mode set to [icon_spot] (Spot metering) once only. (character_reference[Metering Mode])

bullet02[Long Exposure NR] (character_reference[Long Exposure NR])

bullet02[Min. Shutter Speed] (character_reference[Min. Shutter Speed])

bullet02[1 Shot RAW+JPG]

– Records a RAW image and a JPEG image simultaneously once only. (character_reference[Picture Quality])

bullet02[i.Dynamic Range] (character_reference[i.Dynamic Range])

bullet02[Color Shading Compensation] (character_reference[Color Shading Compensation])

bullet02[Filter Effect] (character_reference[Filter Settings])

bullet02[One Push AE]

– Adjusts the aperture value and shutter speed to the settings suited for the standard exposure determined by the camera. (character_referenceExposure Compensation)

bullet02[Touch AE] (character_referenceTouch AE)

bullet02[AWB Lock] (character_reference[AWB Lock Setting])

bullet02[Exposure Mode] (character_referenceSetting the Exposure for Recording Videos)

bullet02[Synchro Scan] (character_reference[Synchro Scan])


icon_custom-menu-focus-release[Focus/Shutter]

bullet02[AF Mode] (character_referenceSelecting the AF Mode)

bullet02[AF Detection Setting] (character_referenceAutomatic Detection)

bullet02[Detecting Subject] (character_referenceAutomatic Detection)

bullet02[AF Custom Setting(Photo)] (character_reference[AF Custom Setting(Photo)])

bullet02[AF Custom Setting(Video)] (character_reference[AF Custom Setting(Video)])

bullet02[Focus Limiter] (character_reference[Focus Limiter])

bullet02[Focus Limiter Range Set] (character_reference[Focus Limiter])

bullet02[Focus Peaking] (character_reference[Focus Peaking])

bullet02[Focus Peaking Sensitivity] (character_reference[Focus Peaking])

bullet02[1-Area AF Moving Speed] (character_reference[1-Area AF Moving Speed])

bullet02[Focus Ring Lock] (character_reference[Focus Ring Lock])

bullet02[AE LOCK] (character_referenceLocking Focus and Exposure (AF/AE Lock))

bullet02[AF LOCK] (character_referenceLocking Focus and Exposure (AF/AE Lock))

bullet02[AF/AE LOCK] (character_referenceLocking Focus and Exposure (AF/AE Lock))

bullet02[AF-ON] (character_reference[AF ON] button)

bullet02[AF-ON : Near Shift]

– AF operates giving priority to close-up subjects. (character_referenceUsing AF)

bullet02[AF-ON : Far Shift]

– AF operates giving priority to distant subjects. (character_referenceUsing AF)

bullet02[Focus Area Set]

– Displays the AF area/MF Assist movement screens. (character_referenceAF Area Operations, Operations on the MF Assist Screen)

bullet02[Enlarged Live Display(Video)] (character_reference[Enlarged Live Display(Video)])


icon_photo-flash[Flash]

bullet02[Flash Mode] (character_reference[Flash Mode])

bullet02[Flash Adjust.] (character_reference[Flash Adjust.])

bullet02[Wireless Flash Setup] (character_referenceRecording Using a Wireless Flash)


icon_photo-other[Others (Photo)]

bullet02[Drive Mode Setting] (character_referenceSelecting the Drive Mode)

bullet02[Bracketing] (character_referenceBracket Recording)

bullet02[Silent Mode] (character_reference[Silent Mode])

bullet02[Image Stabilizer] (character_reference[Operation Mode])

bullet02[Shutter Type] (character_reference[Shutter Type])

bullet02[Ex. Tele Conv.] (character_referenceExtended Tele Conversion)

bullet02[Live View Composite] (character_reference[Live View Composite])


[2] tab

icon_video-image-format[Image Format]

bullet02[Rec. File Format] (character_reference[Rec. File Format])

bullet02[Rec Quality] (character_reference[Rec Quality])

bullet02[Rec Quality (My List)] (character_referenceSetting or deleting in My List)

bullet02[Slow & Quick Setting] (character_referenceSlow & Quick Video)

bullet02[Time Code Display] (character_referenceTime Code)


icon_video-audio[Audio]

bullet02[Audio Information] (character_reference[Audio Information])

bullet02[Sound Rec Level Disp.] (character_reference[Sound Rec Level Disp.])

bullet02[Mute Sound Input] (character_reference[Mute Sound Input])

bullet02[Sound Rec Level Adj.] (character_reference[Sound Rec Level Adj.])

bullet02[Sound Rec Quality] (character_reference[Sound Rec Quality])

bullet02[Sound Rec Level Limiter] (character_reference[Sound Rec Level Limiter])

bullet02[4ch Mic Input] (character_reference[4ch Mic Input])

bullet02[XLR Mic Adaptor Setting] (character_referenceXLR Microphone Adaptor (Optional))

bullet02[Sound Monitoring Channel] (character_reference[Sound Monitoring Channel])


icon_video-other[Others (Video)]

bullet02[Image Stabilizer] (character_reference[Operation Mode])

bullet02[E-Stabilization (Video)] (character_reference[E-Stabilization (Video)])

bullet02[Boost I.S. (Video)] (character_reference[Boost I.S. (Video)])

bullet02[Image Area of Video] (character_reference[Image Area of Video])

bullet02[Focus Transition] (character_reference[Focus Transition])

bullet02[Live Cropping] (character_reference[Live Cropping])


icon_custom-menu-operation[Operation]

bullet02[Q.MENU] (character_referenceQuick Menu)

bullet02[Rec / Playback Switch]

– Switches to the playback screen. (character_referencePlaying Back Pictures, Playing Back Videos)

bullet02[Video Record] (character_referenceBasic Video Operations)

bullet02[Video Record(Creative Video)]

– Video recording is started or stopped only in the [icon_mode-p-motion_table] mode. (character_referenceSetting the Exposure for Recording Videos)

bullet02[LVF/Monitor Switch] (character_referenceSwitching Between the Monitor and Viewfinder)

bullet02[Operation Lock]

– A certain type of operation is disabled. Set the type of operation to be disabled in [Operation Lock Setup]. (character_reference[Operation Lock Setup])

bullet02[Dial Operation Switch] (character_referenceTemporarily Change Dial Operation)


icon_video-display-output[Monitor / Display]

bullet02[Preview] (character_referencePreview Mode)

bullet02[Preview Aperture Effect]

– The aperture effect can be previewed while the Fn button is being pressed. (character_referencePreview Mode)

bullet02[Constant Preview] (character_reference[Constant Preview])

bullet02[Level Gauge] (character_reference[Level Gauge])

bullet02[Histogram] (character_reference[Histogram])

bullet02[Luminance Spot Meter] (character_reference[Luminance Spot Meter])

bullet02[Frame Marker] (character_reference[Frame Marker])

bullet02[Photo Grid Line] (character_reference[Photo Grid Line])

bullet02[Live View Boost] (character_reference[Live View Boost])

bullet02[Monochrome Live View] (character_reference[Monochrome Live View])

bullet02[Night Mode] (character_reference[Night Mode])

bullet02[LVF/Monitor Disp. Set]

– Switches the displayed monitor or viewfinder display style. (character_reference[LVF/Monitor Disp. Set])

bullet02[Video-Priority Display] (character_reference[Video-Priority Display])

bullet02[Zebra Pattern] (character_reference[Zebra Pattern])

bullet02[LUT View Assist (Monitor)] (character_reference[LUT View Assist (Monitor)])

bullet02[LUT View Assist (HDMI)] (character_reference[LUT View Assist (HDMI)])

bullet02[LUT Select] (character_reference[LUT Select])

bullet02[HLG View Assist (Monitor)] (character_reference[HLG View Assist])

bullet02[HLG View Assist (HDMI)] (character_reference[HLG View Assist])

bullet02[Sheer Overlay] (character_reference[Sheer Overlay])

bullet02[I.S. Status Scope] (character_reference[I.S. Status Scope])

bullet02[WFM/Vector Scope] (character_reference[WFM/Vector Scope])

bullet02[Anamorphic Desqueeze Display] (character_reference[Anamorphic Desqueeze Display])

bullet02[Color Bars] (character_referenceColor Bars/Test Tone)


[3] tab

icon_custom-menu-lens-other[Lens / Others]

bullet02[Focus Ring Control] (character_reference[Focus Ring Control])

bullet02[AF Micro Adjustment] (character_reference[AF Micro Adjustment])

bullet02[Lens Information] (character_reference[Lens Information])


icon_setup-cardfile[Card/File]

bullet02[Destination Card Slot]

– Changes the priority of cards for recording. This can be used if [Double Card Slot Function] (character_reference[Double Card Slot Function]) is set to [Relay Rec].


icon_setup-inout[IN/OUT]

bullet02[Streaming] (character_referenceStreaming Function)

bullet02[Wi-Fi] (character_referenceWi-Fi / Bluetooth)

bullet02[Fan Mode] (character_reference[Fan Mode])


icon_custom-menu[Setting]

bullet02[Save to Custom Mode] (character_referenceRegistering Instant Customization)


icon_setup-others[Others]

bullet02[No Setting]

– Set when not using as an Fn button.

bullet02[Off (Disable Press and Hold)]

– The button does not work as an Fn button. The function registering screen is not displayed when you press and hold (2 seconds) the Fn button.

bullet02[Restore to Default]

– Restore the default settings for the Fn button. (character_referenceFn Button Default Settings)


character_diamondSetting Items ([Fn Button Set]/[Setting in PLAY mode])


[1] tab

icon_playback-playback-mode[Playback Mode]

bullet02[Magnify from AF Point] (character_reference[Magnify from AF Point])

bullet02[LUT View Assist (Monitor)] (character_reference[LUT View Assist (Monitor)])

bullet02[HLG View Assist (Monitor)] (character_reference[HLG View Assist (Monitor)])

bullet02[Anamorphic Desqueeze Display] (character_reference[Anamorphic Desqueeze Display])


icon_playback-process-image[Process Image]

bullet02[RAW Processing] (character_reference[RAW Processing])


icon_playback-adddelete-info[Add/Delete Info.]

bullet02[Delete Single] (character_referenceDeleting Images)

bullet02[Protect] (character_reference[Protect])

bullet02[Ratingcharacter_star-black1] (character_reference[Rating])

bullet02[Ratingcharacter_star-black2] (character_reference[Rating])

bullet02[Ratingcharacter_star-black3] (character_reference[Rating])

bullet02[Ratingcharacter_star-black4] (character_reference[Rating])

bullet02[Ratingcharacter_star-black5] (character_reference[Rating])


icon_playback-edit-image[Edit Image]

bullet02[Copy] (character_reference[Copy])


icon_custom-menu-operation[Operation]

bullet02[Rec / Playback Switch]

– Switches to the recording screen. (character_referenceBasic Picture Operations, Basic Video Operations)

bullet02[LVF/Monitor Switch] (character_referenceSwitching Between the Monitor and Viewfinder)

bullet02[Video Record] (character_referenceBasic Video Operations)

bullet02[Video Record(Creative Video)]

– Video recording is started or stopped only in the [icon_mode-p-motion_table] mode. (character_referenceSetting the Exposure for Recording Videos)


icon_video-display-output[Monitor / Display]

bullet02[Night Mode] (character_reference[Night Mode])


icon_setup-cardfile[Card/File]

bullet02[Card Slot Change] (character_referenceSwitching the Card to Display)


icon_setup-inout[IN/OUT]

bullet02[Sound Monitoring Channel(Play)] (character_reference[Sound Monitoring Channel(Play)])

bullet02[Wi-Fi] (character_referenceWi-Fi / Bluetooth)

bullet02[Fan Mode] (character_reference[Fan Mode])

bullet02[Send Image (Smartphone)] (character_referenceSending Images on the Camera to a Smartphone with Simple Operations)

bullet02[LUT View Assist (HDMI)] (character_reference[V-Log View Assist])

bullet02[HLG View Assist (HDMI)] (character_reference[HLG View Assist])


[2] tab

icon_setup-others[Others]

bullet02[No Setting]

– Set when not using as an Fn button.

bullet02[Off (Disable Press and Hold)]

– The button does not work as an Fn button. The function registering screen is not displayed when you press and hold (2 seconds) the Fn button.

bullet02[Restore to Default]

– Restore the default settings for the Fn button. (character_referenceFn Button Default Settings)


Use the Fn Buttons

During recording, pressing the Fn buttons enables usage of the functions registered in [Setting in REC mode], and during playback, usage of the functions registered in [Setting in PLAY mode].


  1. Press the Fn button.

  1. Select a setting item.

character_bullet-largePress character_leftcharacter_right to select a setting item and then press button_menu-set or button_joy-stick-push_s.

character_bullet-largeSelection is also possible by rotating image_front-dial_s, image_rear-dial_s or button_control-dial_s.


bullet02Display and selection methods of a setting item differ depending on the menu item.


character_diamondUse [Fn3] to [Fn7] (Touch Icons)

During recording, you can use the Fn buttons within the Touch Tab.


icon_care_s

bullet02With the default settings, the Touch Tab is not displayed. Set [Touch Tab] to [ON] in [Touch Settings] in the [Custom] ([Operation]) menu. (character_reference[Touch Settings])


  1. Touch [icon_touch-tab-fn_s].


  1. Touch one of [Fn3] to [Fn7].

gui_touch-fn
