Wi-Fi Connections

character_bullet-large[Via Network]

character_bullet-large[Direct]

character_bullet-largeConnect to Wi-Fi Using Previously Saved Settings

character_bullet-largeFn Button Assigned with [Wi-Fi]


When [New Connection] has been selected in [Wi-Fi Function] in [LAN / Wi-Fi] of the [Setup] ([IN/OUT]) menu, select the connection method from either [Via Network] or [Direct] to connect.

On the other hand, when you use [Select a destination from History] or [Select a destination from Favorite], the camera connects to the selected device with the previously-used settings.


[Via Network]

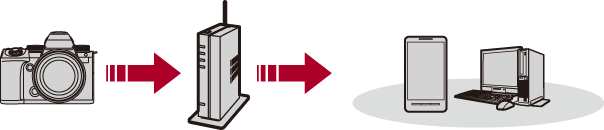

Connect the camera and destination device through the wireless access point.

image_ap


Select the method for connecting to a wireless access point.


Settings: [WPS (Push-Button)]/[WPS (PIN code)]/[From List] (character_reference[WPS (Push-Button)], [WPS (PIN code)], [From List])


icon_info_s

bullet02After selecting [Via Network] once, the camera will connect to the previously-used wireless access point.

To change the wireless access point used for connection, press [DISP.] and change the connection destination.

bullet02Check the operating instructions and settings of the wireless access point.


character_diamond[WPS (Push-Button)]

Press the WPS button on the wireless access point to set up a connection.


Press the wireless access point WPS button until it switches to WPS mode.


Example)

image_wps-push


character_diamond[WPS (PIN code)]

Enter a PIN code into the wireless access point to set up a connection.


  1. On the camera screen, select the wireless access point you are connecting to.

  1. Enter the PIN code displayed on the camera screen into the wireless access point.

  1. Press button_menu-set or button_joy-stick-push_s of the camera.


character_diamond[From List]

Searches for a wireless access point to use, and connects to this.


icon_care_s

bullet02Confirm the encryption key of the wireless access point.


  1. Select the wireless access point you are connecting to.

bullet02Press [DISP.] to run a wireless access point search again.

bullet02If no wireless access point is found (character_referenceConnecting by Manual Input)

  1. (If network authentication is encrypted) Enter the encryption key.

bullet02How to enter characters (character_referenceEntering Characters)


character_diamondConnecting by Manual Input

icon_care_s

bullet02Check the SSID, network authentication, encryption, and encryption key of the wireless access point you are using.


  1. In the screen in Step 1 of “[From List]”, select [Manual Input]. (character_reference[From List])

  1. Enter the SSID of the wireless access point you are connecting to, and then select [Set].

bullet02How to enter characters (character_referenceEntering Characters)

  1. Select the network authentication.


[WPA3-SAE]/[WPA2-PSK]/[WPA2/WPA-PSK]

Supported encryption: [TKIP], [AES]


[No Encryption]


  1. (When other than [No Encryption] is selected) Enter the encryption key and then select [Set].


[Direct]

Directly connect the camera and the destination device.

image_direct


Select the method for connecting with the destination device.


[WPS Connection]

[WPS (Push-Button)]: Press the WPS button on the destination device to connect.

bullet02On the camera, press [DISP.] to extend the connection wait time.

[WPS (PIN code)]: Enter the PIN code into the camera, and connect.


[Manual Connection]

Search for the camera on the destination device to connect.

  1. Select the network authentication.

[WPA3]/[WPA3/WPA2]

bullet02If [Wi-Fi Password] in [LAN / Wi-Fi Setup] is [OFF], this is not displayed if the connected device is [Smartphone].

  1. Enter the SSID and password displayed on the camera into the device.

bullet02If [Wi-Fi Password] in [LAN / Wi-Fi Setup] is [OFF], the password is not displayed if the connected device is [Smartphone].

Select the SSID to establish a connection. (character_referenceConnecting to a Smartphone ([Wi-Fi connection]))

gui_wi-fi-con-direct-manual01_eng



icon_info_s

bullet02Please also refer to the operating instructions for the device to be connected.


Connect to Wi-Fi Using Previously Saved Settings

Use the Wi-Fi connection history to connect using the same settings as previously.


  1. Display the Wi-Fi connection history.

character_bullet-largebutton_menu-set character_arrow [icon_setup-menu] character_arrow [icon_setup-inout] character_arrow [LAN / Wi-Fi] character_arrow [Wi-Fi Function] character_arrow [Select a destination from History]/[Select a destination from Favorite]

  1. Select the History item to connect to.

bullet02Press [DISP.] to confirm details of the connection history.


character_diamondRegister to Favorite

You can register the Wi-Fi connection history to Favorite.


  1. Display the Wi-Fi connection history.

bullet02button_menu-set character_arrow [icon_setup-menu] character_arrow [icon_setup-inout] character_arrow [LAN / Wi-Fi] character_arrow [Wi-Fi Function] character_arrow [Select a destination from History]

  1. Select the History item to register and then press character_right.

  1. Enter a registration name and then select [Set].

bullet02How to enter characters (character_referenceEntering Characters)

bullet02A maximum of 30 characters can be entered. A two-byte character is treated as two characters.


character_diamondEditing Items Registered in Favorite

  1. Display items registered to Favorite.

bullet02button_menu-set character_arrow [icon_setup-menu] character_arrow [icon_setup-inout] character_arrow [LAN / Wi-Fi] character_arrow [Wi-Fi Function] character_arrow [Select a destination from Favorite]

  1. Select the History item to edit in Favorite and then press character_right.


[Remove from Favorite]


[Change the Order in Favorite]

Specify the destination location of the desired item to change the display order.


[Change the Registered Name]

Enter characters to change the registered name.

bullet02How to enter characters (character_referenceEntering Characters)



icon_info_s

bullet02The number of items that can be saved in History is limited. Register frequently-used connection settings to Favorite.

bullet02When [Reset] in the [Setup] ([Setting]) menu is used to reset the network settings, the content registered in History and Favorite is deleted.

bullet02If the device you want to connect to (PC, etc.) is connected to a wireless access point other than the camera, you cannot connect the device to the camera using [Direct].

Change the Wi-Fi settings of the device you want to connect to so that the access point to be used is set to the camera. You can also select [New Connection] and reconnect the devices. (character_referenceSending Images from the Camera to a PC)

bullet02It may be difficult to connect to networks to which many devices are connected. In these cases, connect using [New Connection].

bullet02When the following functions are being used, [Wi-Fi Function] is not available:

– [Streaming Function]

– [Auto Transfer]


Fn Button Assigned with [Wi-Fi]

You can perform the following operations by pressing the Fn button assigned with [Wi-Fi] after connecting to Wi-Fi. (character_referenceFn Buttons)

gui_wi-fi-after-connection_01_eng


[Terminate the Connection]

Terminates the Wi-Fi connection.


[Change the Destination]

Terminates the Wi-Fi connection, and allows you to select a different Wi-Fi connection.


[Change Settings for Sending Images]

Sets the image size, file format, and other items for sending recorded images. (character_referenceImage Send Settings)


[Register the Current Destination to Favorite]

Registers the current connection destination or method so that you can easily connect with the same connection settings next time.


[Network Address Display (Wi-Fi)]

Displays the MAC address and IP address of the camera when connecting via Wi-Fi. (character_reference[Network Address Display (Wi-Fi)])



bullet02Depending on the Wi-Fi function being used or the connection destination, you may not be able to perform some of these operations.
