Fn Buttons

Register Functions to the Fn Buttons

Use the Fn Buttons

You can register functions to the Fn (Function) buttons. Additionally, you can register other functions to specialized buttons such as [WB] button, in the same way as with the Fn buttons.

Different functions can be set for each of the photo mode, video/S&Q mode, and for playback.

Fn Button Default Settings

Register Functions to the Fn Buttons

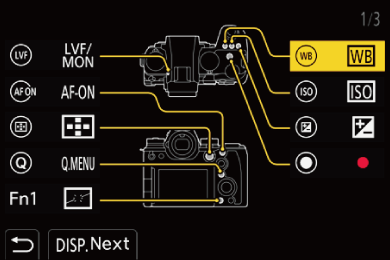

1. Select [Fn Button Set].

[] [] [Fn Button Set] [Setting in Photo Mode]/[Setting in Video/S&Q Mode]/[Setting in Playback Mode]

2. Select the button.

Press to select the button and then press or .

Selection is also possible by rotating or .

Press [DISP.] to change the page.

3. Find the function to register.

Rotate to select the sub tab where the function to register is categorized (Setting Items ([Fn Button Set]/[Setting in Photo Mode]/[Setting in Video/S&Q Mode]), Setting Items ([Fn Button Set]/[Setting in Playback Mode])) and then press or .

You can also select by pressing to select the sub tab, pressing or rotating , and then pressing .

Switch the [1] to [3] tabs by pressing [Q].

4. Register the function.

Press to select a function and then press or .

Selection is also possible by rotating or .

Select items with [>] by selecting the item again.

Depending on the button, some functions cannot be registered.

Setting Items ([Fn Button Set]/[Setting in Photo Mode]/[Setting in Video/S&Q Mode])

[1] tab

[Image Quality]

[Exposure Comp.] (Exposure Compensation)

[Dual Native ISO Setting] ([Dual Native ISO Setting])

[Sensitivity] (ISO Sensitivity)

[White Balance] (White Balance (WB))

[Photo Style] ([Photo Style])

[Apply LUT]

– Applies the LUT file that was set in [LUT] with either [REAL TIME LUT] or [MY PHOTO STYLE]. (Adjusting Image Quality)

[REAL TIME LUT] ([REAL TIME LUT])

[Metering Mode] ([Metering Mode])

[Aspect Ratio] ([Aspect Ratio])

[Rec. File Format(Photo)] ([Rec. File Format(Photo)])

[Switch JPEG/HEIF] ([Switch JPEG/HEIF])

[JPEG/HEIF Picture Quality] ([JPEG/HEIF Picture Quality])

[HEIF Format] (HLG Recording (HEIF Format))

[Picture Size] ([Picture Size])

[1 Shot Spot Metering]

– Records with the metering mode set to [] (Spot metering) once only. ([Metering Mode])

[Long Exposure NR] ([Long Exposure NR])

[Min. Shutter Speed] ([Min. Shutter Speed])

[1 Shot RAW+JPEG]/[1 Shot RAW+HEIF]

– Records a RAW image and a JPEG/HEIF image simultaneously once only. ([Rec. File Format(Photo)])

[i.Dynamic Range] ([i.Dynamic Range])

[Color Shading Compensation] ([Color Shading Compensation])

[Filter Effect] ([Filter Settings])

[One Push AE]

– Adjusts the aperture value and shutter speed to the settings suited for the standard exposure determined by the camera. (Exposure Compensation)

[Touch AE] (Touch AE)

[AWB Lock] ([AWB Lock Setting])

[Exposure Control(Photo Mode)] ([Exposure Control(Photo Mode)])

[Exposure Control(Video Mode)] ([Exposure Control(Video Mode)])

[Synchro Scan(Photo)] ([Synchro Scan(Photo)])

[Synchro Scan(Video)] ([Synchro Scan(Video)])

[Focus/Shutter]

[AF Mode] (Selecting the AF Mode)

[AF Detection Setting] (Automatic Detection)

[Detecting Subject] (Automatic Detection)

[AF Custom Setting(Photo)] ([AF Custom Setting(Photo)])

[AF Custom Setting(Video)] ([AF Custom Setting(Video)])

[Focus Limiter] ([Focus Limiter])

[Focus Limiter Range Set] ([Focus Limiter])

[Focus Peaking] ([Focus Peaking])

[Focus Peaking Sensitivity] ([Focus Peaking])

[Focus Frame Moving Speed] ([Focus Frame Moving Speed])

[Focus Ring Lock] ([Focus Ring Lock])

[AE LOCK] (Locking Focus and Exposure (AF/AE Lock))

[AF LOCK] (Locking Focus and Exposure (AF/AE Lock))

[AF/AE LOCK] (Locking Focus and Exposure (AF/AE Lock))

[AF-ON] ([AF ON] button)

[AF-ON : Near Shift]

– AF operates giving priority to close-up subjects. (Using AF)

[AF-ON : Far Shift]

– AF operates giving priority to distant subjects. (Using AF)

[AF-Point Scope] ([AF-Point Scope])

[Focus Area Set]

– Displays the AF area/MF Assist movement screens. (AF Area Operations, Operations on the MF Assist Screen)

[Enlarged Live Display(Video)] ([Enlarged Live Display(Video)])

[Flash]

[Flash Mode] ([Flash Mode])

[Flash Adjust.] ([Flash Adjust.])

[Wireless Flash Setup] (Recording Using a Wireless Flash)

[2] tab

[Others (Photo)]

[Drive Mode Setting] (Selecting the Drive Mode)

[Bracketing] (Bracket Recording)

[Silent Mode] ([Silent Mode])

[Image Stabilizer] ([Operation Mode])

[Shutter Type] ([Shutter Type])

[Hybrid Zoom(Photo)] ([Hybrid Zoom(Photo)])

[Crop Zoom]

– Can be set for [Crop Zoom(Photo)], [Zoom Control], [Zoom In(Tele)], [Zoom Out(Wide)], [Crop Zoom Increment(Step)], and [Zoom Speed(Photo)]. ([Crop Zoom(Photo)])

[Live View Composite] ([Live View Composite])

[Image Format]

[Rec. File Format(Video)] ([Rec. File Format(Video)])

[Rec Quality] ([Rec Quality])

[Rec Quality (My List)] (Setting or deleting in My List)

[Proxy Recording] (Proxy Recording)

[Slow & Quick Setting] (Slow & Quick Video)

[Time Code Display] (Time Code)

[Audio]

[Audio Information] ([Audio Information])

[Sound Rec Level Disp.] ([Sound Rec Level Disp.])

[Mute Sound Input] ([Mute Sound Input])

[Sound Rec Level Adj.] ([Sound Rec Level Adj.])

[Sound Rec Quality] ([Sound Rec Quality])

[Sound Rec Level Limiter] ([Sound Rec Level Limiter])

[4ch Audio Recording] ([4ch Audio Recording])

[XLR Mic Adaptor Setting] (XLR Microphone Adaptor (Optional))

[Sound Monitoring Channel] ([Sound Monitoring Channel])

[Others (Video)]

[Image Stabilizer] ([Operation Mode])

[E-Stabilization (Video)] ([E-Stabilization (Video)])

[Boost I.S. (Video)] ([Boost I.S. (Video)])

[Image Area of Video] ([Image Area of Video])

[Hybrid Zoom(Video)] ([Hybrid Zoom(Video)])

[Crop Zoom]

– Can be set for [Crop Zoom(Video)], [Zoom Control], [Zoom In(Tele)], [Zoom Out(Wide)], [Crop Zoom Increment(Step)], and [Zoom Speed(Video)]. ([Crop Zoom(Video)])

[Focus Transition] ([Focus Transition])

[Live Cropping] ([Live Cropping])

[Live Cropping Settings] ([Live Cropping])

[Operation]

[Q.MENU] (Quick Menu)

[Rec / Playback Switch]

– Switches to the playback screen. (Playing Back Pictures, Playing Back Videos)

[Video Record] (Basic Video Operations)

[LVF/Monitor Switch] (Switching Between the Monitor and Viewfinder)

[Dial Operation Switch] (Temporarily Change Dial Operation)

[Monitor / Display]

[Preview] (Preview Mode)

[Preview Aperture Effect]

– The aperture effect can be previewed while the Fn button is being pressed. (Preview Mode)

[Constant Preview] ([Constant Preview])

[Level Gauge] ([Level Gauge])

[Histogram] ([Histogram])

[Luminance Spot Meter] ([Luminance Spot Meter])

[Frame Marker] ([Frame Marker])

[Photo Grid Line] ([Photo Grid Line])

[3] tab

[Monitor / Display]

[Live View Boost] ([Live View Boost])

[Monochrome Live View] ([Monochrome Live View])

[Night Mode] ([Night Mode])

[LVF/Monitor Disp. Set]

– Switches the displayed monitor or viewfinder display style. ([LVF/Monitor Disp. Set])

[Image Flip(Monitor)]

– You can make a setting that flips the monitor screen. ([Horizontal Image Flip(Monitor)], [Vertical Image Flip(Monitor)])

[Zebra Pattern] ([Zebra Pattern])

[LUT View Assist (Monitor)] ([LUT View Assist (Monitor)])

[LUT View Assist (HDMI)] ([LUT View Assist (HDMI)])

[LUT Select(LUT View Assist)] ([Log View Assist])

[HLG View Assist (Monitor)] ([HLG View Assist])

[HLG View Assist (HDMI)] ([HLG View Assist])

[Sheer Overlay] ([Sheer Overlay])

[I.S. Status Scope] ([I.S. Status Scope])

[False Color] ([False Color])

[WFM/Vector Scope] ([WFM/Vector Scope])

[Anamorphic Desqueeze Display] ([Anamorphic Desqueeze Display])

[Color Bars] (Color Bars/Test Tone)

[Lens / Others]

[Focus Ring Control] ([Focus Ring Control])

[AF Micro Adjustment] ([AF Micro Adjustment])

[Lens Information] ([Lens Information])

[Card/File]

[Destination Card Slot]

– Changes the priority of cards for recording. This can be used if [Double Card Slot Function] ([Double Card Slot Function]) is set to [Relay Rec].

[IN/OUT]

[Streaming] (Streaming Function)

[Wi-Fi] (Wi-Fi / Bluetooth)

[Fan Mode] ([Fan Mode])

[Setting]

[Save to Custom Mode] (Registering Instant Customization)

[Others]

[No Setting]

– Set when not using as an Fn button.

[Off (Disable Press and Hold)]

– The button does not work as an Fn button. The function registering screen is not displayed when you press and hold (2 seconds) the Fn button.

[Same Setting as Photo Mode]

– Linked to the menus set in [Setting in Photo Mode]. (Only in [Setting in Video/S&Q Mode])

[Restore to Default]

– Restore the default settings for the Fn button. (Fn Button Default Settings)

Setting Items ([Fn Button Set]/[Setting in Playback Mode])

[1] tab

[Playback Mode]

[Magnify from AF Point] ([Magnify from AF Point])

[LUT View Assist (Monitor)] ([LUT View Assist (Monitor)])

[HLG View Assist (Monitor)] ([HLG View Assist (Monitor)])

[Anamorphic Desqueeze Display] ([Anamorphic Desqueeze Display])

[Process Image]

[RAW Processing] ([RAW Processing])

[HEIF to JPEG Conversion] ([HEIF to JPEG Conversion])

[Add/Delete Info.]

[Delete Single] (Deleting Images)

[Protect] ([Protect])

[Rating1] ([Rating])

[Rating2] ([Rating])

[Rating3] ([Rating])

[Rating4] ([Rating])

[Rating5] ([Rating])

[Edit Image]

[Copy] ([Copy])

[Operation]

[Rec / Playback Switch]

– Switches to the recording screen. (Basic Picture Operations, Basic Video Operations)

[LVF/Monitor Switch] (Switching Between the Monitor and Viewfinder)

[Video Record] (Basic Video Operations)

[Monitor / Display]

[Night Mode] ([Night Mode])

[Card/File]

[Card Slot Change] (Switching the Card to Display)

[IN/OUT]

[Sound Monitoring Channel(Play)] ([Sound Monitoring Channel(Play)])

[Wi-Fi] (Wi-Fi / Bluetooth)

[Fan Mode] ([Fan Mode])

[Send Image (Smartphone)] (Sending Images on the Camera to a Smartphone with Simple Operations)

[Send Images to Frame.io] ([Send Images to Frame.io])

[LUT View Assist (HDMI)] ([Log View Assist])

[HLG View Assist (HDMI)] ([HLG View Assist])

[2] tab

[Others]

[No Setting]

– Set when not using as an Fn button.

[Off (Disable Press and Hold)]

– The button does not work as an Fn button. The function registering screen is not displayed when you press and hold (2 seconds) the Fn button.

[Restore to Default]

– Restore the default settings for the Fn button. (Fn Button Default Settings)

Use the Fn Buttons

You can use the functions assigned with each of the settings when you press the Fn buttons.

In [] mode: Functions assigned in [Setting in Photo Mode]

In []/[S&Q] mode: Functions assigned in [Setting in Video/S&Q Mode]

During playback: Functions assigned in [Setting in Playback Mode]

1. Press the Fn button.

2. Select a setting item.

Press to select a setting item and then press or .

Selection is also possible by rotating , or .

Display and selection methods of a setting item differ depending on the menu item.

Use [Fn3] to [Fn7] (Touch Icons)

During recording, you can use the Fn buttons within the Touch Tab.

1. Touch [].

2. Touch one of [Fn3] to [Fn7].
