Slow & Quick Video

icon_mode-photo_grayicon_mode-movie_grayicon_mode-sq

icon_mode-iaicon_mode-picon_mode-aicon_mode-sicon_mode-m

In the [S&Q] mode, the camera records at a different frame rate to the recording frame rate, enabling the creation of slow motion video and quick motion video in the MOV format.



Slow Motion Video (Overcrank Recording)

Set a number of frames that is higher than the recording frame rate of the [Rec Quality].

For example: When recording at 60 fps when set to a 29.97p [Rec Quality], the speed is halved.


Quick Motion Video (Undercrank Recording)

Set a number of frames that is lower than the recording frame rate of the [Rec Quality].

For example: When recording at 15 fps when set to a 29.97p [Rec Quality], the speed is doubled.



icon_care_s

bullet02Slow & Quick video with a recording quality with the ALL-Intra image compression system cannot be recorded to SD cards. Use CFexpress cards.

bullet02The volume of data recorded increases when you record slow motion video, so if the card writing speed is insufficient, recording may stop.


  1. Set to [S&Q] mode.

(character_referencePhoto/Video/S&Q Switch)


bullet02[Rec. File Format(Video)] changes to [MOV].

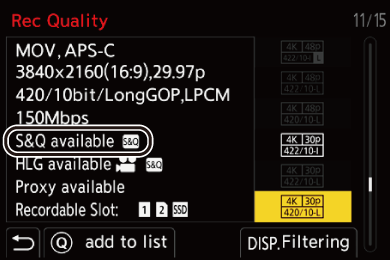

  1. Select a recording quality with which you can record Slow & Quick video.

character_bullet-largebutton_menu-set character_arrow [icon_movie] character_arrow [icon_video-image-format] character_arrow [Rec Quality]


bullet02Items available for recording with Slow & Quick video are indicated as [S&Q available].

bullet02Recording qualities with which you can record Slow & Quick video (character_reference List of Recording Qualities That Enable Special Videos to be Recorded)

gui_rec-quality-s_and_q_eng

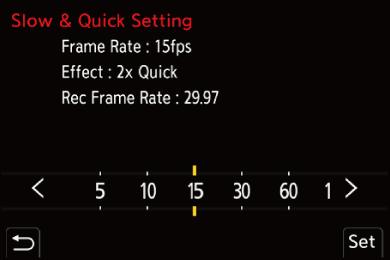

  1. Set the frame rate.

character_bullet-largebutton_menu-set character_arrow [icon_movie] character_arrow [icon_video-image-format] character_arrow [Slow & Quick Setting]

character_bullet-largeRotate image_front-dial_s, image_rear-dial_s or button_control-dial_s to select a numeric value, then press button_menu-set or button_joy-stick-push_s.

gui_variable_frame3_eng


character_diamondFrame Rate Combinations and Playback Speeds

Frame rate

[System Frequency]: [59.94Hz (NTSC)]

C4K/29.97p

Cs4K/29.97p

4K/29.97p

C4K/23.98p

Cs4K/23.98p

4K/23.98p

FHD/59.94p

FHD/29.97p

FHD/23.98p

1 fps

30× Quick

24× Quick

60× Quick

30× Quick

24× Quick

2 fps

15× Quick

12× Quick

30× Quick

15× Quick

12× Quick

5 fps

6× Quick

4.8× Quick

12× Quick

6× Quick

4.8× Quick

10 fps

3× Quick

2.4× Quick

6× Quick

3× Quick

2.4× Quick

15 fps

2× Quick

1.6× Quick

4× Quick

2× Quick

1.6× Quick

30 fps

1× Normal

1.25× Slow

2× Quick

1× Normal

1.25× Slow

60 fps

2× Slow

2.5× Slow

1× Normal

2× Slow

2.5× Slow

100 fps



1.67× Slow

3.33× Slow

4.17× Slow

120 fps



2× Slow

4× Slow

5× Slow

150 fps



2.5× Slow

5× Slow

6.25× Slow

180 fps



3× Slow

6× Slow

7.5× Slow

Frame rate

[System Frequency]: [50.00Hz (PAL)]

C4K/25.00p

Cs4K/25.00p

4K/25.00p

FHD/50.00p

FHD/25.00p

1 fps

25× Quick

50× Quick

25× Quick

2 fps

12.5× Quick

25× Quick

12.5× Quick

5 fps

5× Quick

10× Quick

5× Quick

10 fps

2.5× Quick

5× Quick

2.5× Quick

15 fps

1.67× Quick

3.33× Quick

1.67× Quick

30 fps

1.2× Slow

1.67× Quick

1.2× Slow

60 fps

2.4× Slow

1.2× Slow

2.4× Slow

100 fps


2× Slow

4× Slow

120 fps


2.4× Slow

4.8× Slow

150 fps


3× Slow

6× Slow

180 fps


3.6× Slow

7.2× Slow

Frame rate

[System Frequency]: [24.00Hz (CINEMA)]

C4K/24.00p

Cs4K/24.00p

4K/24.00p

FHD/24.00p

1 fps

24× Quick

24× Quick

2 fps

12× Quick

12× Quick

5 fps

4.8× Quick

4.8× Quick

10 fps

2.4× Quick

2.4× Quick

15 fps

1.6× Quick

1.6× Quick

30 fps

1.25× Slow

1.25× Slow

60 fps

2.5× Slow

2.5× Slow

100 fps


4.17× Slow

120 fps


5× Slow

150 fps


6.25× Slow

180 fps


7.5× Slow



character_diamondShutter Speeds When Recording Slow & Quick Video

When recording Slow & Quick video, the minimum shutter speed changes depending on the frame rate of [Slow & Quick Setting].

Frame rate

Minimum shutter speed

[AFS]/[AFC]

[MF]

1 fps

1/30 of a second

1 second

2 fps

1/2 of a second

5 fps

1/5 of a second

10 fps

1/10 of a second

15 fps

1/15 of a second

30 fps

1/30 of a second

60 fps

1/60 of a second

1/60 of a second

100 fps

1/100 of a second

1/100 of a second

120 fps

1/125 of a second

1/125 of a second

150 fps


1/160 of a second

180 fps


1/200 of a second


icon_info_s

bullet02Audio will not be recorded during Slow & Quick recording.

bullet02When the resolution is set to C4K/4K [Rec Quality], [Image Area of Video] is fixed to [APS-C].

bullet02[PIXEL/PIXEL] in [Image Area of Video] cannot be selected.

bullet02The mode switches to MF when you set to a frame rate of 150 fps or more.

(The camera automatically focuses when [AF ON] is pressed, but only before starting recording.)

bullet02Depending on the [Rec Quality] and [Slow & Quick Setting] frame rate settings, the following crop zoom rate is used for recording:

– FHD video: Approx. 1.22× (151 fps or higher)
