[Rec Quality]

icon_mode-photo_gray icon_mode-movie icon_mode-sq

icon_mode-ia icon_mode-p icon_mode-a icon_mode-s icon_mode-m

Sets the image quality of videos to be recorded.

The image qualities you can select depend on the recording mode, [System Frequency], and [Rec. File Format(Video)] settings.

The [Image Area of Video] setting items you can select depend on the [Rec Quality] settings.

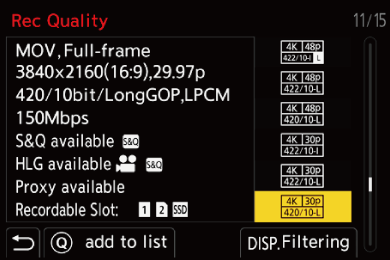

[Rec Quality] settings can also be made using [Filtering] ( character_reference [Filtering]) to display only items that meet your conditions and [add to list] ([add to list]) to register recording qualities you use often.

Set to [] or [S&Q] mode.

( character_reference Photo/Video/S&Q Switch)

Set [Rec Quality].

button_menu-set [ icon_movie ] [ icon_video-image-format ] [Rec Quality]

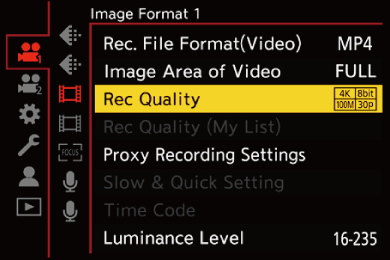

gui_rec-quality_eng

To record video with a bit rate of 72 Mbps or more, you require an SD card with the corresponding Speed Class.

Video with a bit rate of 800 Mbps or more cannot be recorded to an SD card. Use a CFexpress card.

[Apple ProRes] video with a resolution other than FHD cannot be recorded to an SD card. Use a CFexpress card.

For information about the cards that can be used ( character_reference SD Cards That Can Be Used with This Camera)

character_diamond [Rec. File Format(Video)]: [MP4]

YUV, Bit value, Image compression:

– [10bit] recording quality: 4:2:0, 10 bit, Long GOP

– [8bit] recording quality: 4:2:0, 8 bit, Long GOP

Audio format: AAC (2ch)

(A) Recording frame rate

(B) Bit rate (Mbps)

[System Frequency]: [59.94Hz (NTSC)]
[Rec Quality]	[Image Area of Video]		Resolution	Aspect ratio	(A)	(B)	(C)
[Rec Quality]	FULL	APS-C	Resolution	Aspect ratio	(A)	(B)	(C)
[4K/10bit/100M/60p]			3840×2160	16:9	59.94p	100	HEVC
[4K/10bit/72M/30p]			3840×2160	16:9	29.97p	72	HEVC
[4K/8bit/100M/30p]			3840×2160	16:9	29.97p	100	AVC
[4K/10bit/72M/24p]			3840×2160	16:9	23.98p	72	HEVC
[4K/8bit/100M/24p]			3840×2160	16:9	23.98p	100	AVC
[FHD/8bit/28M/60p]			1920×1080	16:9	59.94p	28	AVC
[FHD/8bit/20M/30p]			1920×1080	16:9	29.97p	20	AVC
[FHD/8bit/24M/24p]			1920×1080	16:9	23.98p	24	AVC

[System Frequency]: [50.00Hz (PAL)]
[Rec Quality]	[Image Area of Video]		Resolution	Aspect ratio	(A)	(B)	(C)
[Rec Quality]	FULL	APS-C	Resolution	Aspect ratio	(A)	(B)	(C)
[4K/10bit/100M/50p]			3840×2160	16:9	50.00p	100	HEVC
[4K/10bit/72M/25p]			3840×2160	16:9	25.00p	72	HEVC
[4K/8bit/100M/25p]			3840×2160	16:9	25.00p	100	AVC
[FHD/8bit/28M/50p]			1920×1080	16:9	50.00p	28	AVC
[FHD/8bit/20M/25p]			1920×1080	16:9	25.00p	20	AVC

character_diamond [Rec. File Format(Video)]: [MOV]

YUV, Bit value, Image compression:

– [422/10-I] recording quality: 4:2:2, 10 bit, ALL-Intra

– [422/10-L] recording quality: 4:2:2, 10 bit, Long GOP

– [420/10-L] recording quality: 4:2:0, 10 bit, Long GOP

– [420/8-L] recording quality: 4:2:0, 8 bit, Long GOP

Audio format: LPCM (2ch/4ch)

4-channel audio can be recorded when the XLR Microphone Adaptor (DMW-XLR2: optional) is connected by setting [4ch Audio Recording] to [XLR] or [XLR+CAMERA].

icon_mode-video : Only able to set or record when in [] mode.

(A) Recording frame rate

(B) Bit rate (Mbps)

[System Frequency]: [59.94Hz (NTSC)]
[Rec Quality]	[Image Area of Video]		Resolution	Aspect ratio	(A)	(B)	(C)
[Rec Quality]	FULL	APS-C	Resolution	Aspect ratio	(A)	(B)	(C)
[6K/30p/420/10-L]			5952×3968	3:2	29.97p	200	HEVC
[6K/24p/420/10-L]			5952×3968	3:2	23.98p	200	HEVC
[6K/30p/420/10-L]			5952×3136	17:9	29.97p	200	HEVC
[6K/24p/420/10-L]			5952×3136	17:9	23.98p	200	HEVC
[6K/60p/420/10-L]			5952×2512	2.4:1	59.94p	300	HEVC
[6K/48p/420/10-L]			5952×2512	2.4:1	47.95p	300	HEVC
[6K/30p/420/10-L]			5952×2512	2.4:1	29.97p	200	HEVC
[6K/24p/420/10-L]			5952×2512	2.4:1	23.98p	200	HEVC
[5.9K/30p/420/10-L]			5888×3312	16:9	29.97p	200	HEVC
[5.9K/24p/420/10-L]			5888×3312	16:9	23.98p	200	HEVC
[3.3K/48p/422/10-I(H)]			3328×2496	4:3	47.95p	800	AVC
[3.3K/48p/422/10-I(L)]			3328×2496	4:3	47.95p	600	AVC
[3.3K/48p/422/10-L]			3328×2496	4:3	47.95p	200	AVC
[3.3K/48p/420/10-L]			3328×2496	4:3	47.95p	200	HEVC
[3.3K/30p/422/10-I]			3328×2496	4:3	29.97p	400	AVC
[3.3K/30p/422/10-L]			3328×2496	4:3	29.97p	150	AVC
[3.3K/30p/420/10-L]			3328×2496	4:3	29.97p	150	HEVC
[3.3K/24p/422/10-I]			3328×2496	4:3	23.98p	400	AVC
[3.3K/24p/422/10-L]			3328×2496	4:3	23.98p	150	AVC
[3.3K/24p/420/10-L]			3328×2496	4:3	23.98p	150	HEVC
[C4K/60p/422/10-I(H)]			4096×2160	17:9	59.94p	800	AVC
[C4K/60p/422/10-I(L)]			4096×2160	17:9	59.94p	600	AVC
[C4K/60p/422/10-L]			4096×2160	17:9	59.94p	200	AVC
[C4K/60p/420/10-L]			4096×2160	17:9	59.94p	200	HEVC
[C4K/60p/420/8-L]			4096×2160	17:9	59.94p	150	AVC
[C4K/48p/422/10-I(H)]			4096×2160	17:9	47.95p	800	AVC
[C4K/48p/422/10-I(L)]			4096×2160	17:9	47.95p	600	AVC
[C4K/48p/422/10-L]			4096×2160	17:9	47.95p	200	AVC
[C4K/48p/420/10-L]			4096×2160	17:9	47.95p	200	HEVC
[C4K/30p/422/10-I]			4096×2160	17:9	29.97p	400	AVC
[C4K/30p/422/10-L]			4096×2160	17:9	29.97p	150	AVC
[C4K/30p/420/10-L]			4096×2160	17:9	29.97p	150	HEVC
[C4K/30p/420/8-L]			4096×2160	17:9	29.97p	100	AVC
[C4K/24p/422/10-I]			4096×2160	17:9	23.98p	400	AVC
[C4K/24p/422/10-L]			4096×2160	17:9	23.98p	150	AVC
[C4K/24p/420/10-L]			4096×2160	17:9	23.98p	150	HEVC
[C4K/24p/420/8-L]			4096×2160	17:9	23.98p	100	AVC
[Cs4K/60p/422/10-I(H)]			4096×1728	2.4:1	59.94p	800	AVC
[Cs4K/60p/422/10-I(L)]			4096×1728	2.4:1	59.94p	600	AVC
[Cs4K/60p/422/10-L]			4096×1728	2.4:1	59.94p	200	AVC
[Cs4K/60p/420/10-L]			4096×1728	2.4:1	59.94p	200	HEVC
[Cs4K/60p/420/8-L]			4096×1728	2.4:1	59.94p	150	AVC
[Cs4K/48p/422/10-I(H)]			4096×1728	2.4:1	47.95p	800	AVC
[Cs4K/48p/422/10-I(L)]			4096×1728	2.4:1	47.95p	600	AVC
[Cs4K/48p/422/10-L]			4096×1728	2.4:1	47.95p	200	AVC
[Cs4K/48p/420/10-L]			4096×1728	2.4:1	47.95p	200	HEVC
[Cs4K/30p/422/10-I]			4096×1728	2.4:1	29.97p	400	AVC
[Cs4K/30p/422/10-L]			4096×1728	2.4:1	29.97p	150	AVC
[Cs4K/30p/420/10-L]			4096×1728	2.4:1	29.97p	150	HEVC
[Cs4K/30p/420/8-L]			4096×1728	2.4:1	29.97p	100	AVC
[Cs4K/24p/422/10-I]			4096×1728	2.4:1	23.98p	400	AVC
[Cs4K/24p/422/10-L]			4096×1728	2.4:1	23.98p	150	AVC
[Cs4K/24p/420/10-L]			4096×1728	2.4:1	23.98p	150	HEVC
[Cs4K/24p/420/8-L]			4096×1728	2.4:1	23.98p	100	AVC
[4K/60p/422/10-I(H)]			3840×2160	16:9	59.94p	800	AVC
[4K/60p/422/10-I(L)]			3840×2160	16:9	59.94p	600	AVC
[4K/60p/422/10-L]			3840×2160	16:9	59.94p	200	AVC
[4K/60p/420/10-L]			3840×2160	16:9	59.94p	200	HEVC
[4K/60p/420/8-L]			3840×2160	16:9	59.94p	150	AVC
[4K/48p/422/10-I(H)]			3840×2160	16:9	47.95p	800	AVC
[4K/48p/422/10-I(L)]			3840×2160	16:9	47.95p	600	AVC
[4K/48p/422/10-L]			3840×2160	16:9	47.95p	200	AVC
[4K/48p/420/10-L]			3840×2160	16:9	47.95p	200	HEVC
[4K/30p/422/10-I]			3840×2160	16:9	29.97p	400	AVC
[4K/30p/422/10-L]			3840×2160	16:9	29.97p	150	AVC
[4K/30p/420/10-L]			3840×2160	16:9	29.97p	150	HEVC
[4K/30p/420/8-L]			3840×2160	16:9	29.97p	100	AVC
[4K/24p/422/10-I]			3840×2160	16:9	23.98p	400	AVC
[4K/24p/422/10-L]			3840×2160	16:9	23.98p	150	AVC
[4K/24p/420/10-L]			3840×2160	16:9	23.98p	150	HEVC
[4K/24p/420/8-L]			3840×2160	16:9	23.98p	100	AVC
[FHD/120p/422/10-I]			1920×1080	16:9	119.88p	400	AVC
[FHD/120p/422/10-L]			1920×1080	16:9	119.88p	150	AVC
[FHD/120p/420/10-L]			1920×1080	16:9	119.88p	150	HEVC
[FHD/60p/422/10-I]			1920×1080	16:9	59.94p	200	AVC
[FHD/60p/422/10-L]			1920×1080	16:9	59.94p	100	AVC
[FHD/60p/420/10-L]			1920×1080	16:9	59.94p	100	HEVC
[FHD/60p/420/8-L]			1920×1080	16:9	59.94p	50	AVC
[FHD/48p/422/10-I]			1920×1080	16:9	47.95p	200	AVC
[FHD/48p/422/10-L]			1920×1080	16:9	47.95p	100	AVC
[FHD/48p/420/10-L]			1920×1080	16:9	47.95p	100	HEVC
[FHD/30p/422/10-I]			1920×1080	16:9	29.97p	200	AVC
[FHD/30p/422/10-L]			1920×1080	16:9	29.97p	100	AVC
[FHD/30p/420/10-L]			1920×1080	16:9	29.97p	100	HEVC
[FHD/30p/420/8-L]			1920×1080	16:9	29.97p	25	AVC
[FHD/24p/422/10-I]			1920×1080	16:9	23.98p	200	AVC
[FHD/24p/422/10-L]			1920×1080	16:9	23.98p	100	AVC
[FHD/24p/420/10-L]			1920×1080	16:9	23.98p	100	HEVC
[FHD/24p/420/8-L]			1920×1080	16:9	23.98p	25	AVC

[System Frequency]: [50.00Hz (PAL)]
[Rec Quality]	[Image Area of Video]		Resolution	Aspect ratio	(A)	(B)	(C)
[Rec Quality]	FULL	APS-C	Resolution	Aspect ratio	(A)	(B)	(C)
[6K/25p/420/10-L]			5952×3968	3:2	25.00p	200	HEVC
[6K/25p/420/10-L]			5952×3136	17:9	25.00p	200	HEVC
[6K/50p/420/10-L]			5952×2512	2.4:1	50.00p	300	HEVC
[6K/25p/420/10-L]			5952×2512	2.4:1	25.00p	200	HEVC
[5.9K/25p/420/10-L]			5888×3312	16:9	25.00p	200	HEVC
[3.3K/50p/422/10-I(H)]			3328×2496	4:3	50.00p	800	AVC
[3.3K/50p/422/10-I(L)]			3328×2496	4:3	50.00p	600	AVC
[3.3K/50p/422/10-L]			3328×2496	4:3	50.00p	200	AVC
[3.3K/50p/420/10-L]			3328×2496	4:3	50.00p	200	HEVC
[3.3K/25p/422/10-I]			3328×2496	4:3	25.00p	400	AVC
[3.3K/25p/422/10-L]			3328×2496	4:3	25.00p	150	AVC
[3.3K/25p/420/10-L]			3328×2496	4:3	25.00p	150	HEVC
[C4K/50p/422/10-I(H)]			4096×2160	17:9	50.00p	800	AVC
[C4K/50p/422/10-I(L)]			4096×2160	17:9	50.00p	600	AVC
[C4K/50p/422/10-L]			4096×2160	17:9	50.00p	200	AVC
[C4K/50p/420/10-L]			4096×2160	17:9	50.00p	200	HEVC
[C4K/50p/420/8-L]			4096×2160	17:9	50.00p	150	AVC
[C4K/25p/422/10-I]			4096×2160	17:9	25.00p	400	AVC
[C4K/25p/422/10-L]			4096×2160	17:9	25.00p	150	AVC
[C4K/25p/420/10-L]			4096×2160	17:9	25.00p	150	HEVC
[C4K/25p/420/8-L]			4096×2160	17:9	25.00p	100	AVC
[Cs4K/50p/422/10-I(H)]			4096×1728	2.4:1	50.00p	800	AVC
[Cs4K/50p/422/10-I(L)]			4096×1728	2.4:1	50.00p	600	AVC
[Cs4K/50p/422/10-L]			4096×1728	2.4:1	50.00p	200	AVC
[Cs4K/50p/420/10-L]			4096×1728	2.4:1	50.00p	200	HEVC
[Cs4K/50p/420/8-L]			4096×1728	2.4:1	50.00p	150	AVC
[Cs4K/25p/422/10-I]			4096×1728	2.4:1	25.00p	400	AVC
[Cs4K/25p/422/10-L]			4096×1728	2.4:1	25.00p	150	AVC
[Cs4K/25p/420/10-L]			4096×1728	2.4:1	25.00p	150	HEVC
[Cs4K/25p/420/8-L]			4096×1728	2.4:1	25.00p	100	AVC
[4K/50p/422/10-I(H)]			3840×2160	16:9	50.00p	800	AVC
[4K/50p/422/10-I(L)]			3840×2160	16:9	50.00p	600	AVC
[4K/50p/422/10-L]			3840×2160	16:9	50.00p	200	AVC
[4K/50p/420/10-L]			3840×2160	16:9	50.00p	200	HEVC
[4K/50p/420/8-L]			3840×2160	16:9	50.00p	150	AVC
[4K/25p/422/10-I]			3840×2160	16:9	25.00p	400	AVC
[4K/25p/422/10-L]			3840×2160	16:9	25.00p	150	AVC
[4K/25p/420/10-L]			3840×2160	16:9	25.00p	150	HEVC
[4K/25p/420/8-L]			3840×2160	16:9	25.00p	100	AVC
[FHD/100p/422/10-I]			1920×1080	16:9	100.00p	400	AVC
[FHD/100p/422/10-L]			1920×1080	16:9	100.00p	150	AVC
[FHD/100p/420/10-L]			1920×1080	16:9	100.00p	150	HEVC
[FHD/50p/422/10-I]			1920×1080	16:9	50.00p	200	AVC
[FHD/50p/422/10-L]			1920×1080	16:9	50.00p	100	AVC
[FHD/50p/420/10-L]			1920×1080	16:9	50.00p	100	HEVC
[FHD/50p/420/8-L]			1920×1080	16:9	50.00p	50	AVC
[FHD/25p/422/10-I]			1920×1080	16:9	25.00p	200	AVC
[FHD/25p/422/10-L]			1920×1080	16:9	25.00p	100	AVC
[FHD/25p/420/10-L]			1920×1080	16:9	25.00p	100	HEVC
[FHD/25p/420/8-L]			1920×1080	16:9	25.00p	25	AVC

[System Frequency]: [24.00Hz (CINEMA)]
[Rec Quality]	[Image Area of Video]		Resolution	Aspect ratio	(A)	(B)	(C)
[Rec Quality]	FULL	APS-C	Resolution	Aspect ratio	(A)	(B)	(C)
[6K/24p/420/10-L]			5952×3968	3:2	24.00p	200	HEVC
[6K/24p/420/10-L]			5952×3136	17:9	24.00p	200	HEVC
[6K/48p/420/10-L]			5952×2512	2.4:1	48.00p	300	HEVC
[6K/24p/420/10-L]			5952×2512	2.4:1	24.00p	200	HEVC
[5.9K/24p/420/10-L]			5888×3312	16:9	24.00p	200	HEVC
[3.3K/48p/422/10-I(H)]			3328×2496	4:3	48.00p	800	AVC
[3.3K/48p/422/10-I(L)]			3328×2496	4:3	48.00p	600	AVC
[3.3K/48p/422/10-L]			3328×2496	4:3	48.00p	200	AVC
[3.3K/48p/420/10-L]			3328×2496	4:3	48.00p	200	HEVC
[3.3K/24p/422/10-I]			3328×2496	4:3	24.00p	400	AVC
[3.3K/24p/422/10-L]			3328×2496	4:3	24.00p	150	AVC
[3.3K/24p/420/10-L]			3328×2496	4:3	24.00p	150	HEVC
[C4K/48p/422/10-I(H)]			4096×2160	17:9	48.00p	800	AVC
[C4K/48p/422/10-I(L)]			4096×2160	17:9	48.00p	600	AVC
[C4K/48p/422/10-L]			4096×2160	17:9	48.00p	200	AVC
[C4K/48p/420/10-L]			4096×2160	17:9	48.00p	200	HEVC
[C4K/24p/422/10-I]			4096×2160	17:9	24.00p	400	AVC
[C4K/24p/422/10-L]			4096×2160	17:9	24.00p	150	AVC
[C4K/24p/420/10-L]			4096×2160	17:9	24.00p	150	HEVC
[C4K/24p/420/8-L]			4096×2160	17:9	24.00p	100	AVC
[Cs4K/48p/422/10-I(H)]			4096×1728	2.4:1	48.00p	800	AVC
[Cs4K/48p/422/10-I(L)]			4096×1728	2.4:1	48.00p	600	AVC
[Cs4K/48p/422/10-L]			4096×1728	2.4:1	48.00p	200	AVC
[Cs4K/48p/420/10-L]			4096×1728	2.4:1	48.00p	200	HEVC
[Cs4K/24p/422/10-I]			4096×1728	2.4:1	24.00p	400	AVC
[Cs4K/24p/422/10-L]			4096×1728	2.4:1	24.00p	150	AVC
[Cs4K/24p/420/10-L]			4096×1728	2.4:1	24.00p	150	HEVC
[Cs4K/24p/420/8-L]			4096×1728	2.4:1	24.00p	100	AVC
[4K/48p/422/10-I(H)]			3840×2160	16:9	48.00p	800	AVC
[4K/48p/422/10-I(L)]			3840×2160	16:9	48.00p	600	AVC
[4K/48p/422/10-L]			3840×2160	16:9	48.00p	200	AVC
[4K/48p/420/10-L]			3840×2160	16:9	48.00p	200	HEVC
[4K/24p/422/10-I]			3840×2160	16:9	24.00p	400	AVC
[4K/24p/422/10-L]			3840×2160	16:9	24.00p	150	AVC
[4K/24p/420/10-L]			3840×2160	16:9	24.00p	150	HEVC
[4K/24p/420/8-L]			3840×2160	16:9	24.00p	100	AVC
[FHD/48p/422/10-I]			1920×1080	16:9	48.00p	200	AVC
[FHD/48p/422/10-L]			1920×1080	16:9	48.00p	100	AVC
[FHD/48p/420/10-L]			1920×1080	16:9	48.00p	100	HEVC
[FHD/24p/422/10-I]			1920×1080	16:9	24.00p	200	AVC
[FHD/24p/422/10-L]			1920×1080	16:9	24.00p	100	AVC
[FHD/24p/420/10-L]			1920×1080	16:9	24.00p	100	HEVC
[FHD/24p/420/8-L]			1920×1080	16:9	24.00p	25	AVC

[Rec Quality] [(H)] indicates a bit rate of 800 Mbps and [(L)] indicates a bit rate of 600 Mbps.

[(H)] video cannot be recorded to SD cards.

character_diamond [Rec. File Format(Video)]: [Apple ProRes]

Audio format: LPCM (2ch/4ch)

4-channel audio can be recorded when the XLR Microphone Adaptor (DMW-XLR2: optional) is connected by setting [4ch Audio Recording] to [XLR] or [XLR+CAMERA].

icon_mode-video : Only able to set or record when in [] mode.

(A) Recording frame rate

(B) Bit rate

(C) Video compression format (RAW HQ: Apple ProRes RAW HQ, RAW: Apple ProRes RAW, 422 HQ: Apple ProRes 422 HQ, 422: Apple ProRes 422)

[System Frequency]: [59.94Hz (NTSC)]
[Rec Quality]	[Image Area of Video]		Resolution	Aspect ratio	(A)	(B)	(C)
[Rec Quality]	FULL	APS-C	Resolution	Aspect ratio	(A)	(B)	(C)
[5.8K/30p/RAW HQ]			5776×3056	17:9	29.97p	4.2 Gbps	RAW HQ
[5.8K/30p/RAW]			5776×3056	17:9	29.97p	2.8 Gbps	RAW
[5.8K/30p/422 HQ]			5776×3056	17:9	29.97p	1.9 Gbps	422 HQ
[5.8K/30p/422]			5776×3056	17:9	29.97p	1.3 Gbps	422
[5.8K/24p/RAW HQ]			5776×3056	17:9	23.98p	3.4 Gbps	RAW HQ
[5.8K/24p/RAW]			5776×3056	17:9	23.98p	2.3 Gbps	RAW
[5.8K/24p/422 HQ]			5776×3056	17:9	23.98p	1.6 Gbps	422 HQ
[5.8K/24p/422]			5776×3056	17:9	23.98p	1.0 Gbps	422
[3.3K/30p/422 HQ]			3328×2496	4:3	29.97p	913 Mbps	422 HQ
[3.3K/30p/422]			3328×2496	4:3	29.97p	609 Mbps	422
[3.3K/24p/422 HQ]			3328×2496	4:3	23.98p	730 Mbps	422 HQ
[3.3K/24p/422]			3328×2496	4:3	23.98p	487 Mbps	422
[C4K/60p/RAW HQ]			4096×2160	17:9	59.94p	4.2 Gbps	RAW HQ
[C4K/60p/RAW]			4096×2160	17:9	59.94p	2.8 Gbps	RAW
[C4K/60p/422 HQ]			4096×2160	17:9	59.94p	1.9 Gbps	422 HQ
[C4K/60p/422]			4096×2160	17:9	59.94p	1.3 Gbps	422
[C4K/30p/RAW HQ]			4096×2160	17:9	29.97p	2.1 Gbps	RAW HQ
[C4K/30p/RAW]			4096×2160	17:9	29.97p	1.4 Gbps	RAW
[C4K/30p/422 HQ]			4096×2160	17:9	29.97p	972 Mbps	422 HQ
[C4K/30p/422]			4096×2160	17:9	29.97p	648 Mbps	422
[C4K/24p/RAW HQ]			4096×2160	17:9	23.98p	1.7 Gbps	RAW HQ
[C4K/24p/RAW]			4096×2160	17:9	23.98p	1.1 Gbps	RAW
[C4K/24p/422 HQ]			4096×2160	17:9	23.98p	778 Mbps	422 HQ
[C4K/24p/422]			4096×2160	17:9	23.98p	519 Mbps	422
[Cs4K/60p/422 HQ]			4096×1728	2.4:1	59.94p	1.6 Gbps	422 HQ
[Cs4K/60p/422]			4096×1728	2.4:1	59.94p	1.0 Gbps	422
[Cs4K/30p/422 HQ]			4096×1728	2.4:1	29.97p	778 Mbps	422 HQ
[Cs4K/30p/422]			4096×1728	2.4:1	29.97p	519 Mbps	422
[Cs4K/24p/422 HQ]			4096×1728	2.4:1	23.98p	622 Mbps	422 HQ
[Cs4K/24p/422]			4096×1728	2.4:1	23.98p	415 Mbps	422
[4K/60p/422 HQ]			3840×2160	16:9	59.94p	1.8 Gbps	422 HQ
[4K/60p/422]			3840×2160	16:9	59.94p	1.2 Gbps	422
[4K/30p/422 HQ]			3840×2160	16:9	29.97p	911 Mbps	422 HQ
[4K/30p/422]			3840×2160	16:9	29.97p	608 Mbps	422
[4K/24p/422 HQ]			3840×2160	16:9	23.98p	729 Mbps	422 HQ
[4K/24p/422]			3840×2160	16:9	23.98p	486 Mbps	422
[FHD/60p/422 HQ]			1920×1080	16:9	59.94p	454 Mbps	422 HQ
[FHD/60p/422]			1920×1080	16:9	59.94p	302 Mbps	422
[FHD/30p/422 HQ]			1920×1080	16:9	29.97p	227 Mbps	422 HQ
[FHD/30p/422]			1920×1080	16:9	29.97p	151 Mbps	422
[FHD/24p/422 HQ]			1920×1080	16:9	23.98p	181 Mbps	422 HQ
[FHD/24p/422]			1920×1080	16:9	23.98p	121 Mbps	422

[System Frequency]: [50.00Hz (PAL)]
[Rec Quality]	[Image Area of Video]		Resolution	Aspect ratio	(A)	(B)	(C)
[Rec Quality]	FULL	APS-C	Resolution	Aspect ratio	(A)	(B)	(C)
[5.8K/25p/RAW HQ]			5776×3056	17:9	25.00p	3.5 Gbps	RAW HQ
[5.8K/25p/RAW]			5776×3056	17:9	25.00p	2.4 Gbps	RAW
[5.8K/25p/422 HQ]			5776×3056	17:9	25.00p	1.6 Gbps	422 HQ
[5.8K/25p/422]			5776×3056	17:9	25.00p	1.1 Gbps	422
[3.3K/50p/422 HQ]			3328×2496	4:3	50.00p	1.5 Gbps	422 HQ
[3.3K/50p/422]			3328×2496	4:3	50.00p	1.0 Gbps	422
[3.3K/25p/422 HQ]			3328×2496	4:3	25.00p	761 Mbps	422 HQ
[3.3K/25p/422]			3328×2496	4:3	25.00p	508 Mbps	422
[C4K/50p/RAW HQ]			4096×2160	17:9	50.00p	3.5 Gbps	RAW HQ
[C4K/50p/RAW]			4096×2160	17:9	50.00p	2.4 Gbps	RAW
[C4K/50p/422 HQ]			4096×2160	17:9	50.00p	1.6 Gbps	422 HQ
[C4K/50p/422]			4096×2160	17:9	50.00p	1.1 Gbps	422
[C4K/25p/RAW HQ]			4096×2160	17:9	25.00p	1.8 Gbps	RAW HQ
[C4K/25p/RAW]			4096×2160	17:9	25.00p	1.2 Gbps	RAW
[C4K/25p/422 HQ]			4096×2160	17:9	25.00p	811 Mbps	422 HQ
[C4K/25p/422]			4096×2160	17:9	25.00p	541 Mbps	422
[Cs4K/50p/422 HQ]			4096×1728	2.4:1	50.00p	1.3 Gbps	422 HQ
[Cs4K/50p/422]			4096×1728	2.4:1	50.00p	865 Mbps	422
[Cs4K/25p/422 HQ]			4096×1728	2.4:1	25.00p	649 Mbps	422 HQ
[Cs4K/25p/422]			4096×1728	2.4:1	25.00p	433 Mbps	422
[4K/50p/422 HQ]			3840×2160	16:9	50.00p	1.5 Gbps	422 HQ
[4K/50p/422]			3840×2160	16:9	50.00p	1.0 Gbps	422
[4K/25p/422 HQ]			3840×2160	16:9	25.00p	760 Mbps	422 HQ
[4K/25p/422]			3840×2160	16:9	25.00p	507 Mbps	422
[FHD/50p/422 HQ]			1920×1080	16:9	50.00p	378 Mbps	422 HQ
[FHD/50p/422]			1920×1080	16:9	50.00p	252 Mbps	422
[FHD/25p/422 HQ]			1920×1080	16:9	25.00p	189 Mbps	422 HQ
[FHD/25p/422]			1920×1080	16:9	25.00p	126 Mbps	422

[System Frequency]: [24.00Hz (CINEMA)]
[Rec Quality]	[Image Area of Video]		Resolution	Aspect ratio	(A)	(B)	(C)
[Rec Quality]	FULL	APS-C	Resolution	Aspect ratio	(A)	(B)	(C)
[5.8K/24p/RAW HQ]			5776×3056	17:9	24.00p	3.4 Gbps	RAW HQ
[5.8K/24p/RAW]			5776×3056	17:9	24.00p	2.3 Gbps	RAW
[5.8K/24p/422 HQ]			5776×3056	17:9	24.00p	1.6 Gbps	422 HQ
[5.8K/24p/422]			5776×3056	17:9	24.00p	1.0 Gbps	422
[3.3K/24p/422 HQ]			3328×2496	4:3	24.00p	731 Mbps	422 HQ
[3.3K/24p/422]			3328×2496	4:3	24.00p	487 Mbps	422
[C4K/24p/RAW HQ]			4096×2160	17:9	24.00p	1.7 Gbps	RAW HQ
[C4K/24p/RAW]			4096×2160	17:9	24.00p	1.1 Gbps	RAW
[C4K/24p/422 HQ]			4096×2160	17:9	24.00p	779 Mbps	422 HQ
[C4K/24p/422]			4096×2160	17:9	24.00p	519 Mbps	422
[Cs4K/24p/422 HQ]			4096×1728	2.4:1	24.00p	623 Mbps	422 HQ
[Cs4K/24p/422]			4096×1728	2.4:1	24.00p	415 Mbps	422
[4K/24p/422 HQ]			3840×2160	16:9	24.00p	730 Mbps	422 HQ
[4K/24p/422]			3840×2160	16:9	24.00p	487 Mbps	422
[FHD/24p/422 HQ]			1920×1080	16:9	24.00p	182 Mbps	422 HQ
[FHD/24p/422]			1920×1080	16:9	24.00p	121 Mbps	422

In this document, videos are indicated as follows according to their resolution:

– 6K (5952×3968) video: 6K video (3:2)

– 6K (5952×3136) video: 6K video (17:9)

– 6K (5952×2512) video: 6K video (2.4:1)

– 5.9K (5888×3312) video: 5.9K video

– 5.8K (5776×3056) video: 5.8K video

– 3.3K (3328×2496) video: 3.3K video

– C4K (4096×2160) video: C4K video

– Cs4K (4096×1728) video: Cs4K video

– 4K (3840×2160) video: 4K video

– Full High Definition (1920×1080) video: FHD video

icon_info_s

Since the camera employs the VBR recording format, the bit rate is changed automatically depending on the subject to record. As a result, video recording time is shortened when a fast-moving subject is recorded.

Videos in ALL-Intra and 4:2:2 10-bit formats and videos whose [Rec. File Format(Video)] is [Apple ProRes] are intended for editing on a PC used for video production.

icon_related-info_s

You can register a combination of [System Frequency], [Rec. File Format(Video)], [Image Area of Video], and [Rec Quality] to My List. ( character_reference [add to list])

character_diamond [Filtering]

When [Rec. File Format(Video)] is set to [MOV] or [Apple ProRes], you can specify items such as frame rate, number of pixels (resolution), and compression format (YUV, bit value, image compression), and just display recording qualities that meet those conditions.

In the [Rec Quality] setting screen, press [DISP.].

gui_favorite-registration-video1_ntsc_eng

Press to select a setting item and then press or .

Settings: [Frame Rate]/[Resolution]/[Codec]/[Hybrid Log Gamma]/[Proxy Recording]

Press to select the filtering conditions and then press or .

Press [DISP.] to confirm the setting.

You are returned to the [Rec Quality] setting screen.

Clearing the filtering conditions

Select [ANY] in Step 3.

The filtering conditions are also cleared when you do the following:

– Change the [Rec. File Format(Video)]

– Change the [System Frequency]

– Select a recording quality from [Rec Quality (My List)]

icon_info_s

When you change recording quality using a filter, the current filtering conditions are stored.

character_diamond [add to list]

Select a recording quality and register it in My List. The recording quality you register can be set in [Rec Quality (My List)].

In the [Rec Quality] setting screen, press [Q].

The following settings are also registered at the same time:

– [System Frequency]

– [Rec. File Format(Video)]

– [Image Area of Video]

gui_favorite-registration-video1_ntsc_eng

Setting or deleting in My List

Select [Rec Quality (My List)].

button_menu-set [ icon_movie ] [ icon_video-image-format ] [Rec Quality (My List)]

Press to select a setting item and then press or .

You cannot select setting items that have different system frequencies.

To delete from My List, select the item and press [Q].

Setting from the control panel

It is possible to display the My List of recording qualities from the control panel in [ icon_mode-video ]/[S&Q] mode.

Touch the recording quality item.

When already registered in My List, the [Rec Quality (My List)] setting screen is displayed.

When not yet registered, the [Rec Quality] setting screen is displayed.

[Rec Quality (My List)] and [Rec Quality] switch each time you press the [DISP.] button.

The next time the setting screen is displayed, the screen last used is displayed.

gui_video_control_panel1

icon_info_s

Up to 12 types of recording quality can be registered.
