Quick Menu Customization

You can change the items to display on the Quick menu and their order to suit your preferences.

For information about Quick menu operation methods (Quick Menu)

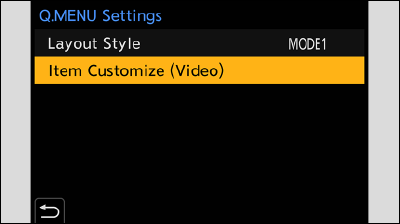

1Select [Q.MENU Settings].

[MENU/SET] [] [] [Q.MENU Settings] [Item Customize (Video)]

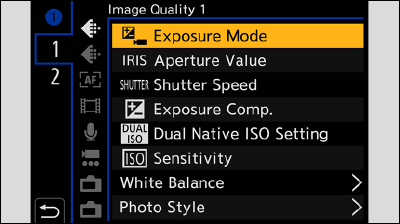

2Select the item position ( to ).

Press to select the position and then press [MENU/SET].

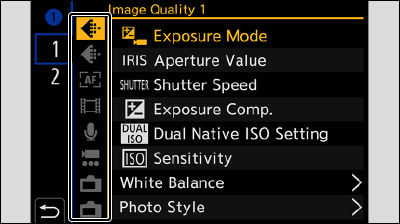

3Find the function to register.

You can select by pressing to select the sub tab, pressing or rotating , and then pressing .

Each press of [Q.MENU] switches between tabs [1] and [2].



4Register menu items.

Press to select an item and then press [MENU/SET].

Selection is also possible by rotating .

Select items with [] by selecting the item again.



Menu Items That Can Be Registered

[1] tab

[Image Quality]

[Exposure Mode] ([Exposure Mode])

[Aperture Value] ([Exposure Mode])

[Shutter Speed] ([Exposure Mode])

[Exposure Comp.] (Exposure Compensation)

[Dual Native ISO Setting] ([Dual Native ISO Setting])

[Sensitivity] (ISO Sensitivity)

[White Balance] (White Balance (WB))

[Photo Style] ([Photo Style])

[Metering Mode] ([Metering Mode])

[i.Dynamic Range] ([i.Dynamic Range])

[Filter Effect] ([Filter Settings])

[Synchro Scan] ([Synchro Scan])



[Focus]

[Focus Mode] (Selecting the Focus Mode)

[AF Mode] (Selecting the AF Mode)

[AF Custom Setting(Video)] ([AF Custom Setting(Video)])

[Focus Peaking] ([Focus Peaking])

[Focus Peaking Sensitivity] ([Focus Peaking Sensitivity])

[1-Area AF Moving Speed] ([1-Area AF Moving Speed])



[Image Format]

[Rec. File Format] ([Rec. File Format])

[Rec Quality] ([Rec Quality])

[Rec Quality (My List)] ([add to list])

[Variable Frame Rate] ([Variable Frame Rate])

[Time Code Display] ([Time Code Display])



[Audio]

[Sound Rec Level Disp.] ([Sound Rec Level Disp.])

[Sound Rec Level Adj.] ([Sound Rec Level Adj.])

[Sound Rec Level Limiter] ([Sound Rec Level Limiter])

[XLR Mic Adaptor Setting] (XLR Microphone Adaptor (Optional))

[Special Mic. Directivity Adjust] (Setting the Sound Pickup Range (DMW-MS2: Optional))



[Others (Video)]

[Image Stabilizer] ([Image Stabilizer])

[E-Stabilization (Video)] ([E-Stabilization (Video)])

[Boost I.S. (Video)] ([Boost I.S. (Video)])

[Image Area of Video] ([Image Area of Video])

[Focus Transition] ([Focus Transition])

[Live Cropping] ([Live Cropping])



[Monitor / Display]

[Level Gauge] ([Level Gauge])

[Histogram] ([Histogram])

[Luminance Spot Meter] ([Luminance Spot Meter])

[Frame Marker] ([Frame Marker])

[Zebra Pattern] ([Zebra Pattern])

[LUT View Assist (HDMI)] ([LUT View Assist (HDMI)])

[LUT View Assist (SDI)] ([LUT View Assist (SDI)])

[HLG View Assist (HDMI)] ([HLG View Assist])

[HLG View Assist (SDI)] ([HLG View Assist])

[Anamorphic Desqueeze Display] ([Anamorphic Desqueeze Display])

[Color Bars] (Color bars / Test Tone)



[2] tab

[Lens / Others]

[Focus Ring Control] ([Focus Ring Control])



[Card/File]

[Destination Card Slot]

–Changes the priority of cards for recording. This can be used if [Double Card Slot Function] ([Double Card Slot Function]) is set to [Relay Rec].



[IN/OUT]

[LAN / Wi-Fi] ([LAN / Wi-Fi])

[Fan Mode] ([Fan Mode])



[Others]

[No Setting]

–Set when not registering any function.



Quick Menu Detailed Settings

[MENU/SET] [] [] Select [Q.MENU Settings]
