DC-BS1H

ISO Sensitivity

You can set light sensitivity (ISO sensitivity). With the default settings, you can set 100 to 51200 in 1/3 EV increments. This camera supports Dual Native ISO which enables recording at high sensitivity with reduced noise by switching the base sensitivity. The base sensitivity can also be fixed as necessary.

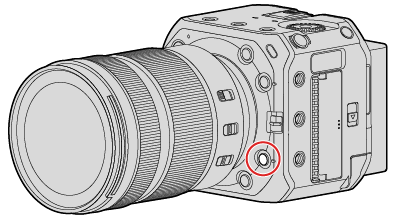

1Press [Fn4].

At default setting, [Sensitivity] is assigned to [Fn4].

About Fn buttons (Fn Buttons)

You can also set it from the menu screen.

[MENU/SET] arrow_menu [menuicon_video] arrow_menu [menuicon_imagequality] arrow_menu Select [Sensitivity]

img_ch5_04

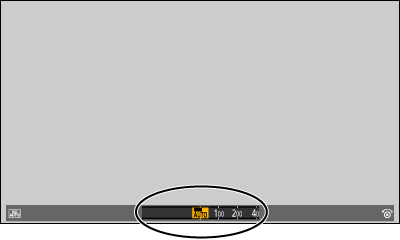

2Select ISO sensitivity.

Rotate icon_controldial.

sc_ill_isosensitivity



3Confirm your selection.

Press [MENU/SET].



Setting Items (ISO Sensitivity)

[AUTO]

The ISO sensitivity is automatically adjusted according to the brightness.

Maximum [6400]*1

[100] to [51200]

The ISO sensitivity is fixed at the selected value.

The available ISO sensitivity range changes according to the setting of [Dual Native ISO Setting] in the [Video] ([Image Quality]) menu. ([Dual Native ISO Setting])

You can extend the ISO sensitivity range in between a lower limit of [50] and an upper limit of [204800] by setting [Extended ISO] ([Extended ISO]) to [ON] in the [Custom] ([Image Quality]) menu.

*1Default setting. The upper limit can be changed with [ISO Sensitivity (video)]. ([ISO Sensitivity (video)])



When the following functions are being used, the ISO sensitivity that can be set is restricted.

[High Dynamic] ([Filter Settings]): Down to a lower limit of [400], up to an upper limit of [6400]

Other than [High Dynamic] ([Filter Settings]): Up to an upper limit of [6400]

[Cinelike D2] / [Cinelike V2] ([Photo Style]): Down to a lower limit of [200] (The lower limit changes to [100] when [Extended ISO] is set.)

[Like709] ([Photo Style]): Down to a lower limit of [100]

[V-Log] ([Photo Style]): Down to a lower limit of [640], up to an upper limit of [51200] (The lower limit changes to [320] when [Extended ISO] is set.)

[Like2100(HLG)] ([Photo Style]): Down to a lower limit of [400].



[ISO Sensitivity (video)]

Sets the lower and upper limits for ISO sensitivity when ISO sensitivity is set to [AUTO].



[MENU/SET] arrow_menu [menuicon_video] arrow_menu [menuicon_imagequality] arrow_menu Select [ISO Sensitivity (video)]

[ISO Auto Lower Limit Setting]

Sets the lower limit for ISO sensitivity when ISO sensitivity is [AUTO].

Set in the range between [100] and [25600].

[ISO Auto Upper Limit Setting]

Sets the upper limit for ISO sensitivity when ISO sensitivity is [AUTO].

Set to [AUTO] or in the range between [200] and [51200].



[Dual Native ISO Setting]

You can set whether to switch the base sensitivity automatically or to fix it.



[MENU/SET] arrow_menu [menuicon_video] arrow_menu [menuicon_imagequality] arrow_menu Select [Dual Native ISO Setting]

[AUTO]

The base sensitivity is automatically switched according to the brightness.

ISO sensitivity that can be set:

[AUTO] / [100] to [51200].

(When [Extended ISO] is set: [AUTO] / [50] to [204800].)

[LOW]

Sets the base sensitivity for low sensitivity.

ISO sensitivity that can be set:

[AUTO] / [100] to [800].

(When [Extended ISO] is set: [AUTO] / [50] to [800].)

[HIGH]

Sets the base sensitivity for high sensitivity.

ISO sensitivity that can be set:

[AUTO] / [640] to [51200].

(When [Extended ISO] is set: [AUTO] / [320] to [204800].)
