Multi manual function

Operate the multidial to change settings and perform other operations without displaying the menu.

You can also switch between the functions and adjust their settings.

Displaying the operation icon screen

Adjusting headphone volume

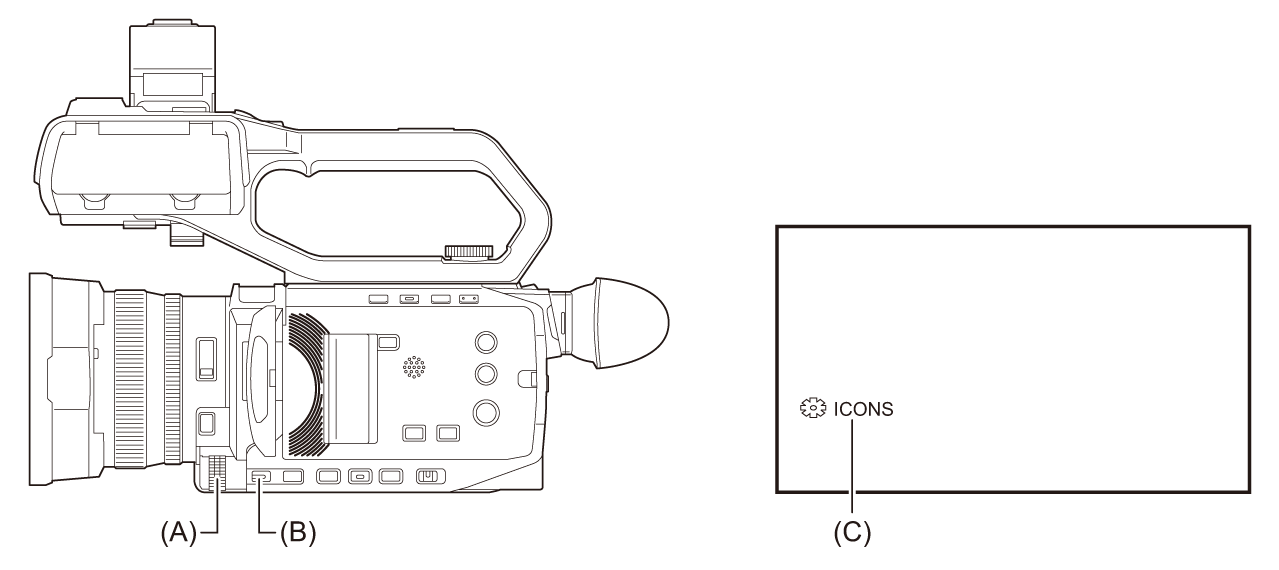

(A) Multidial

(B) <EXIT> button

(C) Multi manual function

You can execute the following functions.

[ ICONS]:

Displays the operation icon screen.

[ GAIN]:

Sets the gain value. (Gain)

[ SHUTTER]:

Sets the shutter speed. (Setting the shutter speed)

[ WB]:

Sets the variable value for the white balance. (Setting the variable value for the white balance)

[ IRIS]:

Sets the iris value. (Iris)

[ AE LEVEL]:

Sets the exposure compensation value (AE level (exposure compensation))

[ AREA]:

Adjusts the area size of the area mode function. (Area mode function)

[ AUDIO MON]:

Adjusts the headphone volume.

To change the function you adjust

1. Make the settings to enable selection of the multi manual function.

Set items other than [ ICONS] and [ AUDIO MON] as follows.

[ GAIN]

Set to manual gain mode (Gain)

[ SHUTTER]

Set to manual shutter mode (Setting the shutter speed)

[ WB]

Press the <WHITE BAL> button and the USER button assigned to [AWB] to switch white balance to “VAR” (Setting the variable value for the white balance)

[ IRIS]

Set to manual iris mode (Iris)

[ AE LEVEL]

Set one of iris, gain, or shutter to auto and set [AE LEVEL] to [ON]. (AE level (exposure compensation))

[ AREA]

Press the USER button assigned to [AREA] to turn the area function on (Area mode function)

If [ ICONS] is selected, turn the multidial to select the operation icon.

2. Turn the multidial to select the function you want to set, then press the multidial to confirm.

The screen display for the selected function is highlighted in orange.

3. Press the multidial to end the settings.

Displaying the operation icon screen

1. Turn the multidial to display the [ ICONS].

2. Press the multidial.

The operation icon screen is displayed.

Adjusting headphone volume

Adjust the headphone volume during recording.

1. Connect the headphones to the headphone terminal.

2. Turn the multidial to display [ AUDIO MON].

3. Press the multidial.

4. Turn the multidial to adjust the volume.

There is no change to the sound that is actually recorded.

5. Press the multidial.

The setting changes to the value displayed and exits.

Press the <EXIT> button to exit without changing the setting.
