Specifications
General
|
Signal system
|
PAL/NTSC
|
|
Operating temperature range
|
 5 °C to 35 °C
|
|
Operating humidity range
|
10 % to 80 % RH
(no condensation)
|
|
HDMI AV output
|
Output connector:
Type A (19 pin) 1 system
|
|
USB slot
|
USB2.0
1 system
|
|
Ethernet
|
10BASE-T/100BASE-TX
1 system
|
|
Wireless LAN
|
Standard Compliance:
IEEE802.11 n/g/b/a
|
|
Frequency range:
2.4 GHz/5 GHz band
|
|
Security:
WPA™/WPA2™
(Encryption Type: TKIP/AES, Authentication Type: PSK), WEP (64 bit/128 bit)
|
|
Power supply
|
DC 12 V (DC IN terminal)
|
|
Power consumption*
|
MST60 Approx. 9 W
MS10 Approx. 7 W
|
|
Power consumption in standby mode*
|
MST60 Approx. 0.5 W
MS10 Approx. 0.4 W
|
|
Power consumption in quick start standby mode*
|
MST60 Approx. 5 W
MS10 Approx. 3 W
|
|
AC Adaptor
|
Power source:
100 V to 240 V, 50/60 Hz, 0.6 A
DC output: DC 12 V 2 A
|
|
Dimensions (W HD)
|
126 mm29 mm126 mm
|
|
Mass
|
MST60 Approx. 200 g
MS10 Approx. 190 g
|
* Using supplied AC adaptor
Specifications are subject to change without notice.
File format
|
File format
|
Extension
|
Reference
|
|
MP3
|
“.MP3”, “.mp3”
|
This unit supports ID3 tags, but only titles, artist names and album names can be displayed.
|
|
JPEG
|
“.JPG”, “.jpg”
|
MOTION JPEG and Progressive JPEG are not supported.
You may not be able to play back the file if you have edited the folder structure or the file name on a PC or other device.
|
|
MKV
|
“.MKV”, “.mkv”
|
The video file and subtitles text file are inside the same folder, and the file names are the same except for the file extensions.
Some MKV/Xvid files may not play back, depending on the video resolution and frame rate condition.
|
|
Subtitles text file
“.SRT”, “.srt”, “.SSA”, “.ssa”, “.ASS”, “.ass”
|
|
Xvid
|
“.AVI”, “.avi”
|
|
Subtitles text file
“.SRT”, “.srt”, “.SUB”, “.sub”, “.TXT”, “.txt”
|
|
FLAC
|
“.FLAC”, “.flac”
|
Maximum sampling rate:
192 kHz/24 bit
|
|
WAV
|
“.WAV”, “.wav”
|
Maximum sampling rate:
192 kHz/24 bit
|
|
MPO
|
“.MPO”, “.mpo”
|
3D still picture
|
|
AAC
|
“.M4A”, “.m4a”, “.AAC”, “.aac”
|
This unit supports ID3 tags.
Maximum sampling rate:
48 kHz/320 kbps
|
|
WMA
|
“.WMA”, “.wma”
|
This unit supports ID3 tags.
Maximum sampling rate:
48 kHz/355 kbps
|
With certain recording states and folder structures, the play order may differ or playback may not be possible.
Audio information
The audio output differs depending on the settings on the unit.
“Digital Audio Output”
The number of channels listed is the maximum possible number of output channels when connected to amplifier/receiver compatible with the respective audio format.
|
|
“Digital Audio Output”
|
|
“Bitstream”
|
“PCM”
|
|
Output channel
|
Outputs using original audio
|
2ch PCM*
|
* MST60: The maximum possible number of Dolby sound is 5.1ch PCM.
Supported format for DLNA
File formats that are not supported by your DLNA server cannot be played.
Video
|
Container
|
Video codec
|
Audio codec
|
Example of file extension
|
|
AVCHD
|
H.264
|
Dolby Digital
|
.mts
|
|
MP4
|
H.264
|
AAC
|
.mp4
|
|
PS
|
MPEG2
|
Dolby Digital
Linear PCM
|
.mpg
.mpeg
|
|
TS
|
MPEG2
H.264
|
AAC
Dolby Digital
|
.m2ts
.ts
|
|
Format
|
Example of file extension
|
|
JPEG
|
.jpg
|
Audio
|
Audio codec
|
Example of file extension
|
|
MP3
|
.mp3
|
|
FLAC
|
.flac
|
|
AAC
|
.m4a
|
|
WMA
|
.wma
|
|
Linear PCM
|
—
|

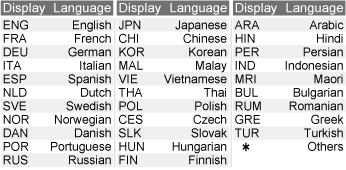

Display languages list
