Turning the unit on/off

Turning the unit on and off with the power button

Turning the unit on and off with the LCD monitor/viewfinder

Turning the unit on and off with the power button

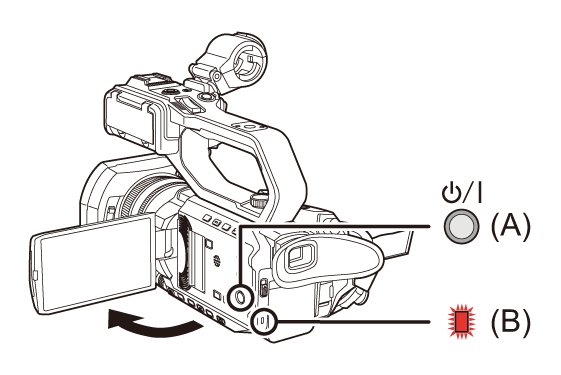

Open the LCD monitor and press the power button (A) to turn on the unit.

The status indicator (B) lights on.

co_body_power_on_off

character_diamond To turn off the unit

Hold down the power button until the status indicator goes off.

The [TIME ZONE] screen is displayed when the power is turned on for the first time. ( character_reference [TIME ZONE])

Set the time zone, date, and time.

The built-in battery (rechargeable battery) will discharge. The setting for date/time may be initialized when the unit is not turned on for approximately 4 months.

Set the date/time again after charging the built-in battery. ( character_reference Setting the date/time of the internal clock)

Turning the unit on and off with the LCD monitor/viewfinder

Opening the LCD monitor or extending the viewfinder turns on the unit. Closing the LCD monitor/viewfinder turns off the unit.

During normal use, you may find it convenient to turn the unit on/off using the LCD monitor or viewfinder.

(For the icon_model-x2100 / icon_model-x1600 )

The unit will not turn off unless the LCD monitor is closed and the viewfinder is retracted.

The unit will not turn off during recording or while connected to a network even if the LCD monitor is closed and the viewfinder is retracted.

In the following cases, opening the LCD monitor or extending the viewfinder does not turn on the unit. Press the power button to turn on the unit.

– When the unit is originally purchased

– When you have turned off the unit using the power button

(For the icon_model-x1200 )

The unit will not turn off during recording even if the LCD monitor is closed.

In the following cases, opening the LCD monitor does not turn on the unit. Press the power button to turn on the unit.

– When the unit is originally purchased

– When you have turned off the unit using the power button
