[录制质量]
设置要录制的视频的画质。
可以选择的画质取决于拍摄模式、[系统频率]和[录制文件格式]设置。
可以选择的[视频图像区域]设置项目取决于[录制质量]设置。
也可以使用[筛选]（

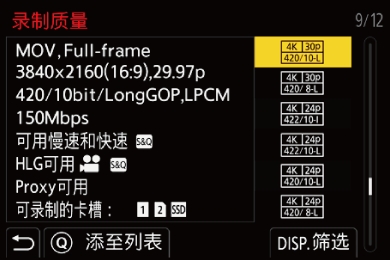

[筛选]）进行[录制质量]设置以便仅显示满足条件的项目，并使用[添至列表]（[添至列表]）进行设置以注册通常使用的录制质量。
-
设置为[
]或[S&Q]模式。
-

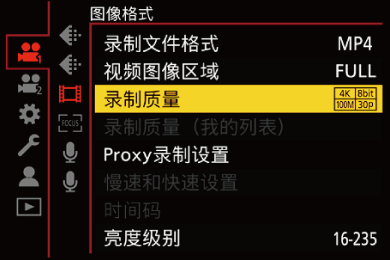

设置[录制质量]。
[
] [
] [录制质量]
要录制具有72 Mbps或以上比特率的视频，需要使用具有相应速度等级的SD卡。
具有800 Mbps或以上比特率的视频无法录制到SD卡中。使用CFexpress记忆卡。
无法将分辨率不是FHD的[Apple ProRes]视频录制到SD卡。使用CFexpress记忆卡。
分辨率为FHD、录制帧速率为120.00p/119.88p/100.00p的[Apple ProRes]视频无法录制到SD卡上。使用CFexpress记忆卡。
有关可以使用的记忆卡的信息（可与本相机配合使用的SD卡）
[录制文件格式]: [MP4]
YUV、位值、图像压缩:
– [10bit]录制质量: 4:2:0，10位，Long GOP
– [8bit]录制质量: 4:2:0，8位，Long GOP
音频格式: AAC（2ch）
(A) 拍摄帧率
(B) 比特率（Mbps）
(C) 视频压缩格式（HEVC: H.265/HEVC，AVC: H.264/MPEG-4 AVC）
|
[系统频率]: [59.94Hz (NTSC)] |
||||||||
|
[录制质量] |
[视频图像区域] |
分辨率 |
高宽比 |
（A） |
（B） |
（C） |
||
|
FULL |
APS-C |
|
||||||
|
[8K/10bit/300M/30p] |
|
|
|
7680×4320 |
16:9 |
29.97p |
300 |
HEVC |
|
[8K/10bit/300M/24p] |
|
|
|
7680×4320 |
16:9 |
23.98p |
300 |
HEVC |
|
[4K/10bit/100M/60p] |
|
|
|
3840×2160 |
16:9 |
59.94p |
100 |
HEVC |
|
[4K/10bit/72M/30p] |
|
|
|
3840×2160 |
16:9 |
29.97p |
72 |
HEVC |
|
[4K/8bit/100M/30p] |
|
|
|
3840×2160 |
16:9 |
29.97p |
100 |
AVC |
|
[4K/10bit/72M/24p] |
|
|
|
3840×2160 |
16:9 |
23.98p |
72 |
HEVC |
|
[4K/8bit/100M/24p] |
|
|
|
3840×2160 |
16:9 |
23.98p |
100 |
AVC |
|
[FHD/8bit/28M/60p] |
|
|
|
1920×1080 |
16:9 |
59.94p |
28 |
AVC |
|
[FHD/8bit/20M/30p] |
|
|
|
1920×1080 |
16:9 |
29.97p |
20 |
AVC |
|
[FHD/8bit/24M/24p] |
|
|
|
1920×1080 |
16:9 |
23.98p |
24 |
AVC |
|
[系统频率]: [50.00Hz (PAL)] |
||||||||
|
[录制质量] |
[视频图像区域] |
分辨率 |
高宽比 |
（A） |
（B） |
（C） |
||
|
FULL |
APS-C |
|
||||||
|
[8K/10bit/300M/25p] |
|
|
|
7680×4320 |
16:9 |
25.00p |
300 |
HEVC |
|
[4K/10bit/100M/50p] |
|
|
|
3840×2160 |
16:9 |
50.00p |
100 |
HEVC |
|
[4K/10bit/72M/25p] |
|
|
|
3840×2160 |
16:9 |
25.00p |
72 |
HEVC |
|
[4K/8bit/100M/25p] |
|
|
|
3840×2160 |
16:9 |
25.00p |
100 |
AVC |
|
[FHD/8bit/28M/50p] |
|
|
|
1920×1080 |
16:9 |
50.00p |
28 |
AVC |
|
[FHD/8bit/20M/25p] |
|
|
|
1920×1080 |
16:9 |
25.00p |
20 |
AVC |
[录制文件格式]: [MOV]
YUV、位值、图像压缩:
– [422/10-I]录制质量: 4:2:2，10位，ALL-Intra
– [422/10-L]录制质量: 4:2:2，10位，Long GOP
– [420/10-L]录制质量: 4:2:0，10位，Long GOP
– [420/8-L]录制质量: 4:2:0，8位，Long GOP
音频格式: LPCM（2ch/4ch）
当XLR麦克风适配器（DMW-XLR2: 可选件）通过将[4ch音频录制]设置为[XLR]或[XLR+CAMERA]进行连接时，可以录制4声道音频。
: 仅在[]模式下才能设置或录制。
(A) 拍摄帧率
(B) 比特率（Mbps）
(C) 视频压缩格式（HEVC: H.265/HEVC，AVC: H.264/MPEG-4 AVC）
|
[系统频率]: [59.94Hz (NTSC)] |
|||||||||
|
[录制质量] |
|
[视频图像区域] |
分辨率 |
高宽比 |
（A） |
（B） |
（C） |
||
|
FULL |
APS-C |
|
|||||||
|
[8.1K/30p/420/10-L] |
|
|
|
|
8128×4288 |
17:9 |
29.97p |
300 |
HEVC |
|
[8.1K/24p/420/10-L] |
|
|
|
|
8128×4288 |
17:9 |
23.98p |
300 |
HEVC |
|
[8K/30p/420/10-L] |
|
|
|
|
7680×4320 |
16:9 |
29.97p |
300 |
HEVC |
|
[8K/24p/420/10-L] |
|
|
|
|
7680×4320 |
16:9 |
23.98p |
300 |
HEVC |
|
[6.4K/30p/420/10-L] |
|
|
|
|
6432×4288 |
3:2 |
29.97p |
300 |
HEVC |
|
[6.4K/24p/420/10-L] |
|
|
|
|
6432×4288 |
3:2 |
23.98p |
300 |
HEVC |
|
[5.9K/60p/420/10-L] |
|
|
|
|
5888×3312 |
16:9 |
59.94p |
300 |
HEVC |
|
[5.9K/48p/420/10-L] |
|
|
|
|
5888×3312 |
16:9 |
47.95p |
300 |
HEVC |
|
[5.9K/30p/420/10-L] |
|
|
|
|
5888×3312 |
16:9 |
29.97p |
200 |
HEVC |
|
[5.9K/24p/420/10-L] |
|
|
|
|
5888×3312 |
16:9 |
23.98p |
200 |
HEVC |
|
[5.8K/60p/420/10-L] |
|
|
|
|
5760×3040 |
17:9 |
59.94p |
300 |
HEVC |
|
[5.8K/48p/420/10-L] |
|
|
|
|
5760×3040 |
17:9 |
47.95p |
300 |
HEVC |
|
[5.8K/30p/420/10-L] |
|
|
|
|
5760×3040 |
17:9 |
29.97p |
200 |
HEVC |
|
[5.8K/24p/420/10-L] |
|
|
|
|
5760×3040 |
17:9 |
23.98p |
200 |
HEVC |
|
[4.7K/60p/420/10-L] |
|
|
|
|
4736×3552 |
4:3 |
59.94p |
300 |
HEVC |
|
[4.7K/48p/420/10-L] |
|
|
|
|
4736×3552 |
4:3 |
47.95p |
300 |
HEVC |
|
[4.7K/30p/420/10-L] |
|
|
|
|
4736×3552 |
4:3 |
29.97p |
200 |
HEVC |
|
[4.7K/24p/420/10-L] |
|
|
|
|
4736×3552 |
4:3 |
23.98p |
200 |
HEVC |
|
[C4K/120p/420/10-L] |
|
|
|
|
4096×2160 |
17:9 |
119.88p |
300 |
HEVC |
|
[C4K/60p/422/10-I(H)] |
|
|
|
|
4096×2160 |
17:9 |
59.94p |
800 |
AVC |
|
[C4K/60p/422/10-I(L)] |
|
|
|
|
4096×2160 |
17:9 |
59.94p |
600 |
AVC |
|
[C4K/60p/422/10-L] |
|
|
|
|
4096×2160 |
17:9 |
59.94p |
200 |
AVC |
|
[C4K/60p/420/10-L] |
|
|
|
|
4096×2160 |
17:9 |
59.94p |
200 |
HEVC |
|
[C4K/60p/420/8-L] |
|
|
|
|
4096×2160 |
17:9 |
59.94p |
150 |
AVC |
|
[C4K/48p/422/10-I(H)] |
|
|
|
|
4096×2160 |
17:9 |
47.95p |
800 |
AVC |
|
[C4K/48p/422/10-I(L)] |
|
|
|
|
4096×2160 |
17:9 |
47.95p |
600 |
AVC |
|
[C4K/48p/422/10-L] |
|
|
|
|
4096×2160 |
17:9 |
47.95p |
200 |
AVC |
|
[C4K/48p/420/10-L] |
|
|
|
|
4096×2160 |
17:9 |
47.95p |
200 |
HEVC |
|
[C4K/30p/422/10-I] |
|
|
|
|
4096×2160 |
17:9 |
29.97p |
400 |
AVC |
|
[C4K/30p/422/10-L] |
|
|
|
|
4096×2160 |
17:9 |
29.97p |
150 |
AVC |
|
[C4K/30p/420/10-L] |
|
|
|
|
4096×2160 |
17:9 |
29.97p |
150 |
HEVC |
|
[C4K/30p/420/8-L] |
|
|
|
|
4096×2160 |
17:9 |
29.97p |
100 |
AVC |
|
[C4K/24p/422/10-I] |
|
|
|
|
4096×2160 |
17:9 |
23.98p |
400 |
AVC |
|
[C4K/24p/422/10-L] |
|
|
|
|
4096×2160 |
17:9 |
23.98p |
150 |
AVC |
|
[C4K/24p/420/10-L] |
|
|
|
|
4096×2160 |
17:9 |
23.98p |
150 |
HEVC |
|
[C4K/24p/420/8-L] |
|
|
|
|
4096×2160 |
17:9 |
23.98p |
100 |
AVC |
|
[4K/120p/420/10-L] |
|
|
|
|
3840×2160 |
16:9 |
119.88p |
300 |
HEVC |
|
[4K/60p/422/10-I(H)] |
|
|
|
|
3840×2160 |
16:9 |
59.94p |
800 |
AVC |
|
[4K/60p/422/10-I(L)] |
|
|
|
|
3840×2160 |
16:9 |
59.94p |
600 |
AVC |
|
[4K/60p/422/10-L] |
|
|
|
|
3840×2160 |
16:9 |
59.94p |
200 |
AVC |
|
[4K/60p/420/10-L] |
|
|
|
|
3840×2160 |
16:9 |
59.94p |
200 |
HEVC |
|
[4K/60p/420/8-L] |
|
|
|
|
3840×2160 |
16:9 |
59.94p |
150 |
AVC |
|
[4K/48p/422/10-I(H)] |
|
|
|
|
3840×2160 |
16:9 |
47.95p |
800 |
AVC |
|
[4K/48p/422/10-I(L)] |
|
|
|
|
3840×2160 |
16:9 |
47.95p |
600 |
AVC |
|
[4K/48p/422/10-L] |
|
|
|
|
3840×2160 |
16:9 |
47.95p |
200 |
AVC |
|
[4K/48p/420/10-L] |
|
|
|
|
3840×2160 |
16:9 |
47.95p |
200 |
HEVC |
|
[4K/30p/422/10-I] |
|
|
|
|
3840×2160 |
16:9 |
29.97p |
400 |
AVC |
|
[4K/30p/422/10-L] |
|
|
|
|
3840×2160 |
16:9 |
29.97p |
150 |
AVC |
|
[4K/30p/420/10-L] |
|
|
|
|
3840×2160 |
16:9 |
29.97p |
150 |
HEVC |
|
[4K/30p/420/8-L] |
|
|
|
|
3840×2160 |
16:9 |
29.97p |
100 |
AVC |
|
[4K/24p/422/10-I] |
|
|
|
|
3840×2160 |
16:9 |
23.98p |
400 |
AVC |
|
[4K/24p/422/10-L] |
|
|
|
|
3840×2160 |
16:9 |
23.98p |
150 |
AVC |
|
[4K/24p/420/10-L] |
|
|
|
|
3840×2160 |
16:9 |
23.98p |
150 |
HEVC |
|
[4K/24p/420/8-L] |
|
|
|
|
3840×2160 |
16:9 |
23.98p |
100 |
AVC |
|
[FHD/120p/422/10-I] |
|
|
|
|
1920×1080 |
16:9 |
119.88p |
400 |
AVC |
|
[FHD/120p/422/10-L] |
|
|
|
|
1920×1080 |
16:9 |
119.88p |
150 |
AVC |
|
[FHD/120p/420/10-L] |
|
|
|
|
1920×1080 |
16:9 |
119.88p |
150 |
HEVC |
|
[FHD/60p/422/10-I] |
|
|
|
|
1920×1080 |
16:9 |
59.94p |
200 |
AVC |
|
[FHD/60p/422/10-L] |
|
|
|
|
1920×1080 |
16:9 |
59.94p |
100 |
AVC |
|
[FHD/60p/420/10-L] |
|
|
|
|
1920×1080 |
16:9 |
59.94p |
100 |
HEVC |
|
[FHD/60p/420/8-L] |
|
|
|
|
1920×1080 |
16:9 |
59.94p |
50 |
AVC |
|
[FHD/48p/422/10-I] |
|
|
|
|
1920×1080 |
16:9 |
47.95p |
200 |
AVC |
|
[FHD/48p/422/10-L] |
|
|
|
|
1920×1080 |
16:9 |
47.95p |
100 |
AVC |
|
[FHD/48p/420/10-L] |
|
|
|
|
1920×1080 |
16:9 |
47.95p |
100 |
HEVC |
|
[FHD/30p/422/10-I] |
|
|
|
|
1920×1080 |
16:9 |
29.97p |
200 |
AVC |
|
[FHD/30p/422/10-L] |
|
|
|
|
1920×1080 |
16:9 |
29.97p |
100 |
AVC |
|
[FHD/30p/420/10-L] |
|
|
|
|
1920×1080 |
16:9 |
29.97p |
100 |
HEVC |
|
[FHD/30p/420/8-L] |
|
|
|
|
1920×1080 |
16:9 |
29.97p |
25 |
AVC |
|
[FHD/24p/422/10-I] |
|
|
|
|
1920×1080 |
16:9 |
23.98p |
200 |
AVC |
|
[FHD/24p/422/10-L] |
|
|
|
|
1920×1080 |
16:9 |
23.98p |
100 |
AVC |
|
[FHD/24p/420/10-L] |
|
|
|
|
1920×1080 |
16:9 |
23.98p |
100 |
HEVC |
|
[FHD/24p/420/8-L] |
|
|
|
|
1920×1080 |
16:9 |
23.98p |
25 |
AVC |
|
[系统频率]: [50.00Hz (PAL)] |
|||||||||
|
[录制质量] |
|
[视频图像区域] |
分辨率 |
高宽比 |
（A） |
（B） |
（C） |
||
|
FULL |
APS-C |
|
|||||||
|
[8.1K/25p/420/10-L] |
|
|
|
|
8128×4288 |
17:9 |
25.00p |
300 |
HEVC |
|
[8K/25p/420/10-L] |
|
|
|
|
7680×4320 |
16:9 |
25.00p |
300 |
HEVC |
|
[6.4K/25p/420/10-L] |
|
|
|
|
6432×4288 |
3:2 |
25.00p |
300 |
HEVC |
|
[5.9K/50p/420/10-L] |
|
|
|
|
5888×3312 |
16:9 |
50.00p |
300 |
HEVC |
|
[5.9K/25p/420/10-L] |
|
|
|
|
5888×3312 |
16:9 |
25.00p |
200 |
HEVC |
|
[5.8K/50p/420/10-L] |
|
|
|
|
5760×3040 |
17:9 |
50.00p |
300 |
HEVC |
|
[5.8K/25p/420/10-L] |
|
|
|
|
5760×3040 |
17:9 |
25.00p |
200 |
HEVC |
|
[4.7K/50p/420/10-L] |
|
|
|
|
4736×3552 |
4:3 |
50.00p |
300 |
HEVC |
|
[4.7K/25p/420/10-L] |
|
|
|
|
4736×3552 |
4:3 |
25.00p |
200 |
HEVC |
|
[C4K/100p/420/10-L] |
|
|
|
|
4096×2160 |
17:9 |
100.00p |
300 |
HEVC |
|
[C4K/50p/422/10-I(H)] |
|
|
|
|
4096×2160 |
17:9 |
50.00p |
800 |
AVC |
|
[C4K/50p/422/10-I(L)] |
|
|
|
|
4096×2160 |
17:9 |
50.00p |
600 |
AVC |
|
[C4K/50p/422/10-L] |
|
|
|
|
4096×2160 |
17:9 |
50.00p |
200 |
AVC |
|
[C4K/50p/420/10-L] |
|
|
|
|
4096×2160 |
17:9 |
50.00p |
200 |
HEVC |
|
[C4K/50p/420/8-L] |
|
|
|
|
4096×2160 |
17:9 |
50.00p |
150 |
AVC |
|
[C4K/25p/422/10-I] |
|
|
|
|
4096×2160 |
17:9 |
25.00p |
400 |
AVC |
|
[C4K/25p/422/10-L] |
|
|
|
|
4096×2160 |
17:9 |
25.00p |
150 |
AVC |
|
[C4K/25p/420/10-L] |
|
|
|
|
4096×2160 |
17:9 |
25.00p |
150 |
HEVC |
|
[C4K/25p/420/8-L] |
|
|
|
|
4096×2160 |
17:9 |
25.00p |
100 |
AVC |
|
[4K/100p/420/10-L] |
|
|
|
|
3840×2160 |
16:9 |
100.00p |
300 |
HEVC |
|
[4K/50p/422/10-I(H)] |
|
|
|
|
3840×2160 |
16:9 |
50.00p |
800 |
AVC |
|
[4K/50p/422/10-I(L)] |
|
|
|
|
3840×2160 |
16:9 |
50.00p |
600 |
AVC |
|
[4K/50p/422/10-L] |
|
|
|
|
3840×2160 |
16:9 |
50.00p |
200 |
AVC |
|
[4K/50p/420/10-L] |
|
|
|
|
3840×2160 |
16:9 |
50.00p |
200 |
HEVC |
|
[4K/50p/420/8-L] |
|
|
|
|
3840×2160 |
16:9 |
50.00p |
150 |
AVC |
|
[4K/25p/422/10-I] |
|
|
|
|
3840×2160 |
16:9 |
25.00p |
400 |
AVC |
|
[4K/25p/422/10-L] |
|
|
|
|
3840×2160 |
16:9 |
25.00p |
150 |
AVC |
|
[4K/25p/420/10-L] |
|
|
|
|
3840×2160 |
16:9 |
25.00p |
150 |
HEVC |
|
[4K/25p/420/8-L] |
|
|
|
|
3840×2160 |
16:9 |
25.00p |
100 |
AVC |
|
[FHD/100p/422/10-I] |
|
|
|
|
1920×1080 |
16:9 |
100.00p |
400 |
AVC |
|
[FHD/100p/422/10-L] |
|
|
|
|
1920×1080 |
16:9 |
100.00p |
150 |
AVC |
|
[FHD/100p/420/10-L] |
|
|
|
|
1920×1080 |
16:9 |
100.00p |
150 |
HEVC |
|
[FHD/50p/422/10-I] |
|
|
|
|
1920×1080 |
16:9 |
50.00p |
200 |
AVC |
|
[FHD/50p/422/10-L] |
|
|
|
|
1920×1080 |
16:9 |
50.00p |
100 |
AVC |
|
[FHD/50p/420/10-L] |
|
|
|
|
1920×1080 |
16:9 |
50.00p |
100 |
HEVC |
|
[FHD/50p/420/8-L] |
|
|
|
|
1920×1080 |
16:9 |
50.00p |
50 |
AVC |
|
[FHD/25p/422/10-I] |
|
|
|
|
1920×1080 |
16:9 |
25.00p |
200 |
AVC |
|
[FHD/25p/422/10-L] |
|
|
|
|
1920×1080 |
16:9 |
25.00p |
100 |
AVC |
|
[FHD/25p/420/10-L] |
|
|
|
|
1920×1080 |
16:9 |
25.00p |
100 |
HEVC |
|
[FHD/25p/420/8-L] |
|
|
|
|
1920×1080 |
16:9 |
25.00p |
25 |
AVC |
|
[系统频率]: [24.00Hz (CINEMA)] |
|||||||||
|
[录制质量] |
|
[视频图像区域] |
分辨率 |
高宽比 |
（A） |
（B） |
（C） |
||
|
FULL |
APS-C |
|
|||||||
|
[8.1K/24p/420/10-L] |
|
|
|
|
8128×4288 |
17:9 |
24.00p |
300 |
HEVC |
|
[8K/24p/420/10-L] |
|
|
|
|
7680×4320 |
16:9 |
24.00p |
300 |
HEVC |
|
[6.4K/24p/420/10-L] |
|
|
|
|
6432×4288 |
3:2 |
24.00p |
300 |
HEVC |
|
[5.9K/48p/420/10-L] |
|
|
|
|
5888×3312 |
16:9 |
48.00p |
300 |
HEVC |
|
[5.9K/24p/420/10-L] |
|
|
|
|
5888×3312 |
16:9 |
24.00p |
200 |
HEVC |
|
[5.8K/48p/420/10-L] |
|
|
|
|
5760×3040 |
17:9 |
48.00p |
300 |
HEVC |
|
[5.8K/24p/420/10-L] |
|
|
|
|
5760×3040 |
17:9 |
24.00p |
200 |
HEVC |
|
[4.7K/48p/420/10-L] |
|
|
|
|
4736×3552 |
4:3 |
48.00p |
300 |
HEVC |
|
[4.7K/24p/420/10-L] |
|
|
|
|
4736×3552 |
4:3 |
24.00p |
200 |
HEVC |
|
[C4K/120p/420/10-L] |
|
|
|
|
4096×2160 |
17:9 |
120.00p |
300 |
HEVC |
|
[C4K/48p/422/10-I(H)] |
|
|
|
|
4096×2160 |
17:9 |
48.00p |
800 |
AVC |
|
[C4K/48p/422/10-I(L)] |
|
|
|
|
4096×2160 |
17:9 |
48.00p |
600 |
AVC |
|
[C4K/48p/422/10-L] |
|
|
|
|
4096×2160 |
17:9 |
48.00p |
200 |
AVC |
|
[C4K/48p/420/10-L] |
|
|
|
|
4096×2160 |
17:9 |
48.00p |
200 |
HEVC |
|
[C4K/24p/422/10-I] |
|
|
|
|
4096×2160 |
17:9 |
24.00p |
400 |
AVC |
|
[C4K/24p/422/10-L] |
|
|
|
|
4096×2160 |
17:9 |
24.00p |
150 |
AVC |
|
[C4K/24p/420/10-L] |
|
|
|
|
4096×2160 |
17:9 |
24.00p |
150 |
HEVC |
|
[C4K/24p/420/8-L] |
|
|
|
|
4096×2160 |
17:9 |
24.00p |
100 |
AVC |
|
[4K/120p/420/10-L] |
|
|
|
|
3840×2160 |
16:9 |
120.00p |
300 |
HEVC |
|
[4K/48p/422/10-I(H)] |
|
|
|
|
3840×2160 |
16:9 |
48.00p |
800 |
AVC |
|
[4K/48p/422/10-I(L)] |
|
|
|
|
3840×2160 |
16:9 |
48.00p |
600 |
AVC |
|
[4K/48p/422/10-L] |
|
|
|
|
3840×2160 |
16:9 |
48.00p |
200 |
AVC |
|
[4K/48p/420/10-L] |
|
|
|
|
3840×2160 |
16:9 |
48.00p |
200 |
HEVC |
|
[4K/24p/422/10-I] |
|
|
|
|
3840×2160 |
16:9 |
24.00p |
400 |
AVC |
|
[4K/24p/422/10-L] |
|
|
|
|
3840×2160 |
16:9 |
24.00p |
150 |
AVC |
|
[4K/24p/420/10-L] |
|
|
|
|
3840×2160 |
16:9 |
24.00p |
150 |
HEVC |
|
[4K/24p/420/8-L] |
|
|
|
|
3840×2160 |
16:9 |
24.00p |
100 |
AVC |
|
[FHD/120p/422/10-I] |
|
|
|
|
1920×1080 |
16:9 |
120.00p |
400 |
AVC |
|
[FHD/120p/422/10-L] |
|
|
|
|
1920×1080 |
16:9 |
120.00p |
150 |
AVC |
|
[FHD/120p/420/10-L] |
|
|
|
|
1920×1080 |
16:9 |
120.00p |
150 |
HEVC |
|
[FHD/48p/422/10-I] |
|
|
|
|
1920×1080 |
16:9 |
48.00p |
200 |
AVC |
|
[FHD/48p/422/10-L] |
|
|
|
|
1920×1080 |
16:9 |
48.00p |
100 |
AVC |
|
[FHD/48p/420/10-L] |
|
|
|
|
1920×1080 |
16:9 |
48.00p |
100 |
HEVC |
|
[FHD/24p/422/10-I] |
|
|
|
|
1920×1080 |
16:9 |
24.00p |
200 |
AVC |
|
[FHD/24p/422/10-L] |
|
|
|
|
1920×1080 |
16:9 |
24.00p |
100 |
AVC |
|
[FHD/24p/420/10-L] |
|
|
|
|
1920×1080 |
16:9 |
24.00p |
100 |
HEVC |
|
[FHD/24p/420/8-L] |
|
|
|
|
1920×1080 |
16:9 |
24.00p |
25 |
AVC |
-
[录制质量][(H)]表示800 Mbps的比特率，[(L)]表示600 Mbps的比特率。
无法将[(H)]视频录制到SD卡。
[录制文件格式]: [Apple ProRes]
音频格式: LPCM（2ch/4ch）
当XLR麦克风适配器（DMW-XLR2: 可选件）通过将[4ch音频录制]设置为[XLR]或[XLR+CAMERA]进行连接时，可以录制4声道音频。
: 仅在[]模式下才能设置或录制。
(A) 拍摄帧率
(B) 比特率
(C) 视频压缩格式（RAW HQ: Apple ProRes RAW HQ，RAW: Apple ProRes RAW，422 HQ: Apple ProRes 422 HQ，422: Apple ProRes 422）
|
[系统频率]: [59.94Hz (NTSC)] |
|||||||||
|
[录制质量] |
|
[视频图像区域] |
分辨率 |
高宽比 |
（A） |
（B） |
（C） |
||
|
FULL |
APS-C |
|
|||||||
|
[5.8K/30p/RAW HQ] |
|
|
|
|
5760×3040 |
17:9 |
29.97p |
4.2 Gbps |
RAW HQ |
|
[5.8K/30p/RAW] |
|
|
|
|
5760×3040 |
17:9 |
29.97p |
2.8 Gbps |
RAW |
|
[5.8K/30p/422 HQ] |
|
|
|
|
5760×3040 |
17:9 |
29.97p |
1.9 Gbps |
422 HQ |
|
[5.8K/30p/422] |
|
|
|
|
5760×3040 |
17:9 |
29.97p |
1.3 Gbps |
422 |
|
[5.8K/24p/RAW HQ] |
|
|
|
|
5760×3040 |
17:9 |
23.98p |
3.4 Gbps |
RAW HQ |
|
[5.8K/24p/RAW] |
|
|
|
|
5760×3040 |
17:9 |
23.98p |
2.2 Gbps |
RAW |
|
[5.8K/24p/422 HQ] |
|
|
|
|
5760×3040 |
17:9 |
23.98p |
1.5 Gbps |
422 HQ |
|
[5.8K/24p/422] |
|
|
|
|
5760×3040 |
17:9 |
23.98p |
1.0 Gbps |
422 |
|
[4.7K/30p/422 HQ] |
|
|
|
|
4736×3552 |
4:3 |
29.97p |
1.8 Gbps |
422 HQ |
|
[4.7K/30p/422] |
|
|
|
|
4736×3552 |
4:3 |
29.97p |
1.2 Gbps |
422 |
|
[4.7K/24p/422 HQ] |
|
|
|
|
4736×3552 |
4:3 |
23.98p |
1.5 Gbps |
422 HQ |
|
[4.7K/24p/422] |
|
|
|
|
4736×3552 |
4:3 |
23.98p |
986 Mbps |
422 |
|
[C4K/60p/422 HQ] |
|
|
|
|
4096×2160 |
17:9 |
59.94p |
1.9 Gbps |
422 HQ |
|
[C4K/60p/422] |
|
|
|
|
4096×2160 |
17:9 |
59.94p |
1.3 Gbps |
422 |
|
[C4K/30p/422 HQ] |
|
|
|
|
4096×2160 |
17:9 |
29.97p |
972 Mbps |
422 HQ |
|
[C4K/30p/422] |
|
|
|
|
4096×2160 |
17:9 |
29.97p |
648 Mbps |
422 |
|
[C4K/24p/422 HQ] |
|
|
|
|
4096×2160 |
17:9 |
23.98p |
778 Mbps |
422 HQ |
|
[C4K/24p/422] |
|
|
|
|
4096×2160 |
17:9 |
23.98p |
519 Mbps |
422 |
|
[4K/60p/422 HQ] |
|
|
|
|
3840×2160 |
16:9 |
59.94p |
1.8 Gbps |
422 HQ |
|
[4K/60p/422] |
|
|
|
|
3840×2160 |
16:9 |
59.94p |
1.2 Gbps |
422 |
|
[4K/30p/422 HQ] |
|
|
|
|
3840×2160 |
16:9 |
29.97p |
911 Mbps |
422 HQ |
|
[4K/30p/422] |
|
|
|
|
3840×2160 |
16:9 |
29.97p |
608 Mbps |
422 |
|
[4K/24p/422 HQ] |
|
|
|
|
3840×2160 |
16:9 |
23.98p |
729 Mbps |
422 HQ |
|
[4K/24p/422] |
|
|
|
|
3840×2160 |
16:9 |
23.98p |
486 Mbps |
422 |
|
[FHD/120p/422 HQ] |
|
|
|
|
1920×1080 |
16:9 |
119.88p |
901 Mbps |
422 HQ |
|
[FHD/120p/422] |
|
|
|
|
1920×1080 |
16:9 |
119.88p |
601 Mbps |
422 |
|
[FHD/60p/422 HQ] |
|
|
|
|
1920×1080 |
16:9 |
59.94p |
454 Mbps |
422 HQ |
|
[FHD/60p/422] |
|
|
|
|
1920×1080 |
16:9 |
59.94p |
302 Mbps |
422 |
|
[FHD/30p/422 HQ] |
|
|
|
|
1920×1080 |
16:9 |
29.97p |
227 Mbps |
422 HQ |
|
[FHD/30p/422] |
|
|
|
|
1920×1080 |
16:9 |
29.97p |
151 Mbps |
422 |
|
[FHD/24p/422 HQ] |
|
|
|
|
1920×1080 |
16:9 |
23.98p |
181 Mbps |
422 HQ |
|
[FHD/24p/422] |
|
|
|
|
1920×1080 |
16:9 |
23.98p |
121 Mbps |
422 |
|
[系统频率]: [50.00Hz (PAL)] |
|||||||||
|
[录制质量] |
|
[视频图像区域] |
分辨率 |
高宽比 |
（A） |
（B） |
（C） |
||
|
FULL |
APS-C |
|
|||||||
|
[5.8K/25p/RAW HQ] |
|
|
|
|
5760×3040 |
17:9 |
25.00p |
3.5 Gbps |
RAW HQ |
|
[5.8K/25p/RAW] |
|
|
|
|
5760×3040 |
17:9 |
25.00p |
2.3 Gbps |
RAW |
|
[5.8K/25p/422 HQ] |
|
|
|
|
5760×3040 |
17:9 |
25.00p |
1.6 Gbps |
422 HQ |
|
[5.8K/25p/422] |
|
|
|
|
5760×3040 |
17:9 |
25.00p |
1.1 Gbps |
422 |
|
[4.7K/25p/422 HQ] |
|
|
|
|
4736×3552 |
4:3 |
25.00p |
1.5 Gbps |
422 HQ |
|
[4.7K/25p/422] |
|
|
|
|
4736×3552 |
4:3 |
25.00p |
1.0 Gbps |
422 |
|
[C4K/50p/422 HQ] |
|
|
|
|
4096×2160 |
17:9 |
50.00p |
1.6 Gbps |
422 HQ |
|
[C4K/50p/422] |
|
|
|
|
4096×2160 |
17:9 |
50.00p |
1.1 Gbps |
422 |
|
[C4K/25p/422 HQ] |
|
|
|
|
4096×2160 |
17:9 |
25.00p |
811 Mbps |
422 HQ |
|
[C4K/25p/422] |
|
|
|
|
4096×2160 |
17:9 |
25.00p |
541 Mbps |
422 |
|
[4K/50p/422 HQ] |
|
|
|
|
3840×2160 |
16:9 |
50.00p |
1.5 Gbps |
422 HQ |
|
[4K/50p/422] |
|
|
|
|
3840×2160 |
16:9 |
50.00p |
1.0 Gbps |
422 |
|
[4K/25p/422 HQ] |
|
|
|
|
3840×2160 |
16:9 |
25.00p |
760 Mbps |
422 HQ |
|
[4K/25p/422] |
|
|
|
|
3840×2160 |
16:9 |
25.00p |
507 Mbps |
422 |
|
[FHD/100p/422 HQ] |
|
|
|
|
1920×1080 |
16:9 |
100.00p |
757 Mbps |
422 HQ |
|
[FHD/100p/422] |
|
|
|
|
1920×1080 |
16:9 |
100.00p |
505 Mbps |
422 |
|
[FHD/50p/422 HQ] |
|
|
|
|
1920×1080 |
16:9 |
50.00p |
378 Mbps |
422 HQ |
|
[FHD/50p/422] |
|
|
|
|
1920×1080 |
16:9 |
50.00p |
252 Mbps |
422 |
|
[FHD/25p/422 HQ] |
|
|
|
|
1920×1080 |
16:9 |
25.00p |
189 Mbps |
422 HQ |
|
[FHD/25p/422] |
|
|
|
|
1920×1080 |
16:9 |
25.00p |
126 Mbps |
422 |
|
[系统频率]: [24.00Hz (CINEMA)] |
|||||||||
|
[录制质量] |
|
[视频图像区域] |
分辨率 |
高宽比 |
（A） |
（B） |
（C） |
||
|
FULL |
APS-C |
|
|||||||
|
[5.8K/24p/RAW HQ] |
|
|
|
|
5760×3040 |
17:9 |
24.00p |
3.4 Gbps |
RAW HQ |
|
[5.8K/24p/RAW] |
|
|
|
|
5760×3040 |
17:9 |
24.00p |
2.2 Gbps |
RAW |
|
[5.8K/24p/422 HQ] |
|
|
|
|
5760×3040 |
17:9 |
24.00p |
1.5 Gbps |
422 HQ |
|
[5.8K/24p/422] |
|
|
|
|
5760×3040 |
17:9 |
24.00p |
1.0 Gbps |
422 |
|
[4.7K/24p/422 HQ] |
|
|
|
|
4736×3552 |
4:3 |
24.00p |
1.5 Gbps |
422 HQ |
|
[4.7K/24p/422] |
|
|
|
|
4736×3552 |
4:3 |
24.00p |
987 Mbps |
422 |
|
[C4K/24p/422 HQ] |
|
|
|
|
4096×2160 |
17:9 |
24.00p |
779 Mbps |
422 HQ |
|
[C4K/24p/422] |
|
|
|
|
4096×2160 |
17:9 |
24.00p |
519 Mbps |
422 |
|
[4K/24p/422 HQ] |
|
|
|
|
3840×2160 |
16:9 |
24.00p |
730 Mbps |
422 HQ |
|
[4K/24p/422] |
|
|
|
|
3840×2160 |
16:9 |
24.00p |
487 Mbps |
422 |
|
[FHD/120p/422 HQ] |
|
|
|
|
1920×1080 |
16:9 |
120.00p |
908 Mbps |
422 HQ |
|
[FHD/120p/422] |
|
|
|
|
1920×1080 |
16:9 |
120.00p |
606 Mbps |
422 |
|
[FHD/24p/422 HQ] |
|
|
|
|
1920×1080 |
16:9 |
24.00p |
182 Mbps |
422 HQ |
|
[FHD/24p/422] |
|
|
|
|
1920×1080 |
16:9 |
24.00p |
121 Mbps |
422 |
在本文档中，根据其分辨率，视频表示如下:
– 8.1K（8128×4288）视频: 8.1K视频
– 8K（7680×4320）视频: 8K视频
– 6.4K（6432×4288）视频: 6.4K视频
– 5.9K（5888×3312）视频: 5.9K视频
– 5.8K（5760×3040）视频: 5.8K视频
– 4.7K（4736×3552）视频: 4.7K视频
– C4K（4096×2160）视频: C4K视频
– 4K（3840×2160）视频: 4K视频
– 全高清（1920×1080）视频: FHD视频
|
[视频图像区域]为[FULL]时 – 5.9K视频（60p/50p/48p）: 约1.11× – 5.8K视频（60p/50p/48p）: 约1.04× – C4K视频（120p/100p）: 约1.1× – C4K视频（60p/50p/48p）: 约1.04× – 4K视频（120p/100p）: 约1.17× – 4K视频（60p/50p/48p）: 约1.11× – FHD视频（120p/100p）: 约1.17× – FHD视频（60p/50p/48p）: 约1.11× [视频图像区域]为[PIXEL/PIXEL]时 – C4K视频（120p/100p）: 约1.1× – 4K视频（120p/100p）: 约1.1× |
|
– 8.1K视频 – 8K视频 – 6.4K视频 – 5.9K视频 – 5.8K视频
|
[筛选]
当[录制文件格式]设置为[MOV]或[Apple ProRes]时，可以指定帧速率、像素数（分辨率）和压缩格式（YUV、位值、图像压缩）并只显示满足这些条件的录制质量。
-
在[录制质量]设置画面中，按[DISP.]。
-
按
选择设置项目，然后按或
。
设置内容: [帧率]/[分辨率]/[编解码器]/[Hybrid Log Gamma]/[Proxy录制]
-
按
选择筛选条件，然后按或。
-
按[DISP.]确认设置。
会返回到[录制质量]设置屏幕。
清除筛选条件
在步骤3中选择[ANY]。
当您进行以下操作时，也会清除筛选条件:
– 更改[录制文件格式]
– 更改[系统频率]
– 从[录制质量（我的列表）]中选择录制质量
|
|
[添至列表]
选择录制质量并在我的列表中注册。可在[录制质量（我的列表）]中设置注册的录制质量。
在[录制质量]设置画面中，按[Q]。
也会同时注册以下设置:
– [系统频率]
– [录制文件格式]
– [视频图像区域]
在我的列表中设置或删除
-
选择[录制质量（我的列表）]。
[] [] [录制质量（我的列表）]
-
按
选择设置项目，然后按或。
无法选择具有不同系统频率的设置项目。
要从我的列表中删除，请选择此项目并按[Q]。
从控制面板进行设置
在[]/[S&Q]模式下，可以从控制面板显示录制质量的“我的列表”。
触摸录制质量项目。
已在“我的列表”中注册时，会显示[录制质量（我的列表）]设置画面。
尚未注册时，会显示[录制质量]设置画面。
每次按[DISP.]按钮，[录制质量（我的列表）]和[录制质量]会切换。
下次显示设置画面时，会显示上次使用的画面。
|
|
