Extended Functions

character_bullet-large[ARRI LogC3] Has Been Added as a Photo Style

character_bullet-largeLog Recording

character_bullet-large[LUT Select(ARRI LogC3)] Added to [Log View Assist]

character_bullet-large[ARRI 709] Added to the [LUT Library]


This section explains the extended functions that become available by using an Upgrade Software Key (DMW-SFU3A: optional).


[ARRI LogC3] Has Been Added as a Photo Style


It is now possible to select [ARRI LogC3] from [Photo Style].

This can only be selected in [icon_mode-video]/[S&Q] mode with [Rec. File Format(Video)] set to [MOV] or [Apple ProRes].


button_menu-set character_arrow [icon_movie] character_arrow [icon_photo-quality] character_arrow Select [Photo Style]


icon_photo-style-arri-log3 [ARRI LogC3]

A setting for log video that conforms to the EI800 gamma curve from the LogC3 specification offered by ARRI (character_referenceLog Recording)

bullet02It allows the production of images rich in gradation through post-production techniques.


icon_info_s

bullet02It is possible to set [ARRI LogC3] in the Photo Style display restrictions in the Photo Style setting of the [Custom] ([Image Quality]) menu.

bullet02Functions are restricted as follows when [ARRI LogC3] is set:

– Cannot record with the [MP4] recording quality.

– Cannot record with the [MOV] [420/8-L] recording quality.

– Cannot record with the [Apple ProRes RAW HQ]/[Apple ProRes RAW] recording quality.

– ISO sensitivity is restricted to a lower limit of 160 (lower limit of 320 when [Dynamic Range Expansion(Log)] is set) and an upper limit of 51200.

– The luminance level setting is fixed to [64-940].

– [Master Pedestal Level] is not available.

– The only image quality adjustments available are [Sharpness] and [Noise Reduction].

bullet02The base Photo Style information for [ARRI LogC3] is as follows:

#LUMIXPHOTOSTYLE LOGC3: [ARRI LogC3]


Log Recording


icon_mode-photo_grayicon_mode-movieicon_mode-sq

icon_mode-ia_grayicon_mode-picon_mode-aicon_mode-sicon_mode-m

Setting [Photo Style] to [ARRI LogC3] enables Log recording.

Images finished with rich gradation can be created through post-production processing.


  1. Set to [icon_mode-video] or [S&Q] mode.

(character_referencePhoto/Video/S&Q Switch)

  1. Set [Rec. File Format(Video)] to [MOV] or [Apple ProRes].

character_bullet-largebutton_menu-set character_arrow [icon_movie] character_arrow [icon_video-image-format] character_arrow [Rec. File Format(Video)] character_arrow [MOV]/[Apple ProRes]

  1. Select the video image quality with which [ARRI LogC3] can be used.

character_bullet-largebutton_menu-set character_arrow [icon_movie] character_arrow [icon_video-image-format] character_arrow [Rec Quality]


  1. Select [ARRI LogC3].

character_bullet-largebutton_menu-set character_arrow [icon_movie] character_arrow [icon_photo-quality] character_arrow [Photo Style] character_arrow [ARRI LogC3]


icon_hints_s

Download the LUT file for [ARRI LogC3] from the following:

(1) ARRI Look Library (LogC3-to-Rec709)

A LUT file with the ARRI Look File applied for the Rec.709 color space.

There are 87 types of Look Files, providing you with a great variety. (As of June 2025)

https://www.arri.com/resource/blob/365070/de67ce8908d30b22d83526dc4c1c8732/arri-look-library-logc3-to-rec709-3d-luts-data.zip


(2) ARRI Look Library (log-to-log)

A LUT file for applying Looks with the Log space as is with its rich color information.

Similarly to (1), there are 87 types of Look Files, providing you with a great variety. (As of June 2025)

https://www.arri.com/resource/blob/283984/763aadc4a2be5c301529704b1357513c/arri-look-library-logc3-log-to-log-3d-luts-data.zip


(3) ARRI LogC3 LUT Package

A LUT file for converting from ARRI LogC3 to the color spaces of a variety of display devices.

By going through (2) ARRI Look Library (log-to-log), it is possible to produce the Look according to the color space you are aiming for.

https://www.arri.com/resource/blob/294620/f4290b963ff83a4dde4fff795645bc26/2022-09-arri-logc3-v1-2-lut-package-data.zip


Refer to the following site for information regarding ARRI Look Files:

https://www.arri.com/en/learn-help/learn-help-camera-system/image-science/look-files


character_diamondISO Sensitivity When [ARRI LogC3] Is Set

The lower limit of available ISO sensitivity is [160], and the upper limit is [51200].

When [Dynamic Range Expansion(Log)] is set to [ON], the lower limit is [320].

bullet02Reset the exposure if necessary when ISO sensitivity changes.


character_diamondISO Sensitivity When [Dual Native ISO Setting] Is Set

[AUTO]:

[Dynamic Range Expansion(Log)]

[OFF]: Base sensitivity: 160 / 800 (dB display values are based on 160)

AUTO / 160 to 51200

[ON]: Base sensitivity: 320 / 1600 (dB display values are based on 320)

AUTO / 320 to 51200

[LOW]:

[Dynamic Range Expansion(Log)]

[OFF]: Base sensitivity: 160

AUTO / 160 to 1600

[ON]: Base sensitivity: 320

AUTO / 320 to 3200

[HIGH]:

[Dynamic Range Expansion(Log)]

[OFF]: Base sensitivity: 800

AUTO / 800 to 51200

[ON]: Base sensitivity: 1600

AUTO / 1600 to 51200


character_diamondExposure When [ARRI LogC3] Is Set

The log characteristics of [ARRI LogC3] comply with 800 ASA (EI 800), described in “ARRI_ALEXA_LogC_Curve_in_VFX.pdf” released by ARRI. The log characteristics of [ARRI LogC3] on this camera do not depend on the ISO sensitivity settings.

However, according to the Exposure Stops values defined in 800 ASA (EI 800), there will be the equivalent of 2.6 stops worth of clipping when [Dynamic Range Expansion(Log)] is [OFF] and 1.6 stops worth of clipping when [Dynamic Range Expansion(Log)] is [ON].


Refer to the following for “ARRI_ALEXA_LogC_Curve_in_VFX.pdf”:

https://www.arri.com/resource/blob/31918/66f56e6abb6e5b6553929edf9aa7483e/2017-03-alexa-logc-curve-in-vfx-data.pdf

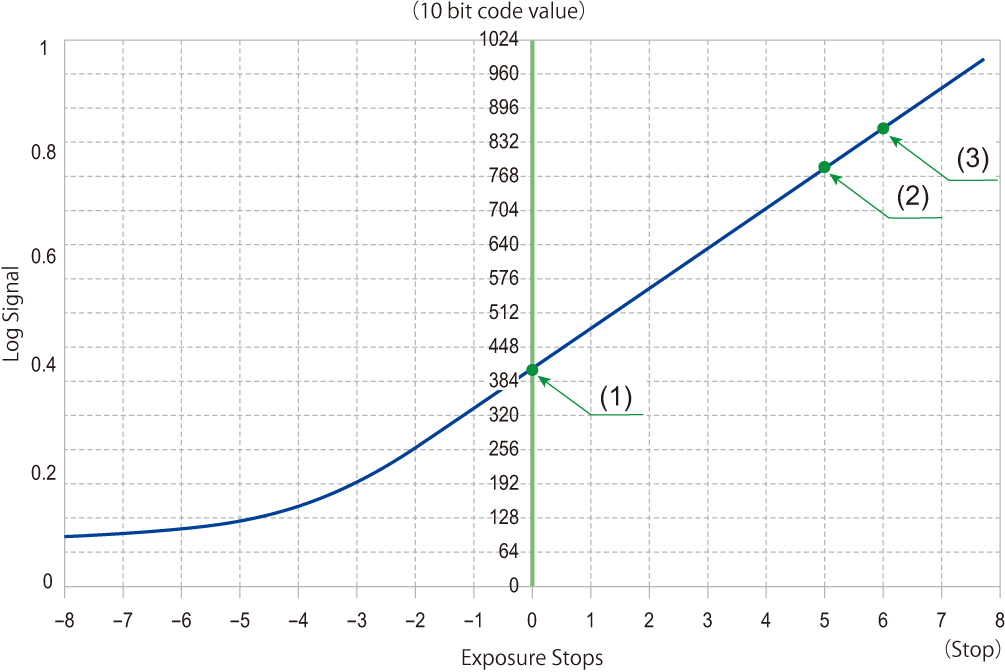

Diagram of the log characteristics of [ARRI LogC3] on this camera

image_arri_logc3-character

(1) 18 % gray

(2) Clipping level (when [Dynamic Range Expansion(Log)] is [OFF])

(3) Clipping level (when [Dynamic Range Expansion(Log)] is [ON])

When [Photo Style] is set to [ARRI LogC3]


Exposure Stops

(18 % gray standard)

Full range

Video range


IRE (%)

Code Value

IRE (%)

Code Value


10 bit

12 bit

10 bit

12 bit

Black level

—

3.5

95

380

9.2

145

580

(1)

0.0

38

400

1600

39

407

1628

(2)

5.0

81

775

3100

76

730

2920

(3)

6.0

90

851

3404

83

795

3180


bullet02When the [Photo Style] is set to [ARRI LogC3] or [REAL TIME LUT] (base Photo Style is [ARRI LogC3]), the [Luminance Level] is fixed to [64-940] (video range).

bullet02The recorded data is recorded as video range.

bullet02HDMI output is output as video range.

bullet02The waveform and vector scope are both displayed as video range.

bullet02The luminance spot meter displays the 18 % gray output level as 0 Stop.


[LUT Select(ARRI LogC3)] Added to [Log View Assist]

You can now select [LUT Select(ARRI LogC3)] in [Log View Assist].


button_menu-set character_arrow [icon_custom-menu] character_arrow [icon_video-display-output] character_arrow Select [Log View Assist]


[LUT Select(ARRI LogC3)]

Selects the LUT file to apply from a preset or LUT files registered in [LUT Library]. (character_reference[LUT Library])



icon_info_s

bullet02When [Photo Style] is [ARRI LogC3], you cannot apply LUT files which are a base Photo Style other than [ARRI LogC3].


[ARRI 709] Added to the [LUT Library]

[ARRI 709] has been added as a sample LUT in the [LUT Library].


button_menu-set character_arrow [icon_custom-menu] character_arrow [icon_photo-quality] character_arrow [LUT Library] character_arrow Select [ARRI 709]


icon_info_s

bullet02[Sorting], [Delete] and [Edit Title] are not possible with [ARRI 709].
