動画画質
撮影する動画の画質を設定します。選択できる画質は、撮影モード、[システム周波数]、[記録ファイル形式（動画）]の設定によって異なります。
[動画画質]の設定によって、選択できる[動画撮影範囲]の設定項目が異なります。

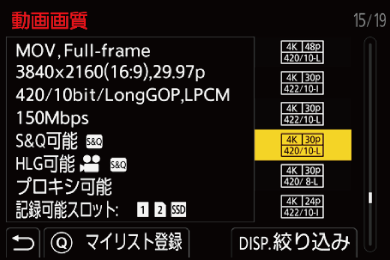

[動画画質]の設定には、条件に合う項目だけを表示する[絞り込み]（
絞り込み）や、よく使う動画画質を登録する[マイリスト登録]（マイリスト登録）も利用できます。
-
[
]または[S&Q]モードにする
-

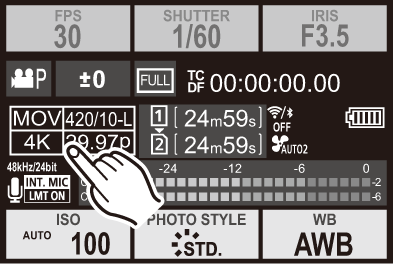

[動画画質]を設定する
[
] [

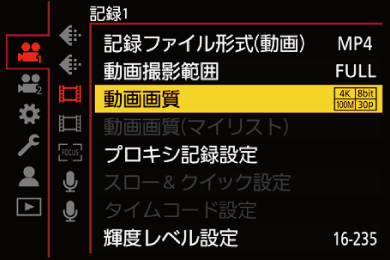

] [動画画質]
ビットレートが72 Mbps以上の動画を撮影するには、対応したスピードクラスのSDカードが必要です。
ビットレートが800 Mbps以上の動画はSDカードに記録できません。CFexpressカードをお使いください。
解像度がFHD以外の[Apple ProRes] の動画はSDカードに記録できません。CFexpressカードをお使いください。
解像度がFHDで記録フレームレートが120.00p／119.88p／100.00pの[Apple ProRes] の動画はSDカードに記録できません。CFexpressカードをお使いください。
使用できるカードについて（本機で使用できるSDカード）
記録ファイル形式（動画）：[MP4]
YUV、ビット数、映像圧縮
– [10bit]の動画画質：4:2:0、10 bit、Long GOP
– [8bit]の動画画質：4:2:0、8 bit、Long GOP
音声フォーマット：AAC（2ch）
(A) 記録フレームレート
(B) ビットレート（Mbps）
(C) ビデオ圧縮方式（HEVC：H.265/HEVC、 AVC：H.264/MPEG-4 AVC）
|
システム周波数：[59.94Hz(NTSC)] |
||||||||
|
動画画質 |
動画撮影範囲 |
解像度 |
横縦比 |
(A) |
(B) |
(C) |
||
|
FULL |
APS-C |
|
||||||
|
4K/10bit/100M/60p |
|
|
|
3840×2160 |
16:9 |
59.94p |
100 |
HEVC |
|
4K/10bit/72M/30p |
|
|
|
3840×2160 |
16:9 |
29.97p |
72 |
HEVC |
|
4K/8bit/100M/30p |
|
|
|
3840×2160 |
16:9 |
29.97p |
100 |
AVC |
|
4K/10bit/72M/24p |
|
|
|
3840×2160 |
16:9 |
23.98p |
72 |
HEVC |
|
4K/8bit/100M/24p |
|
|
|
3840×2160 |
16:9 |
23.98p |
100 |
AVC |
|
FHD/8bit/28M/60p |
|
|
|
1920×1080 |
16:9 |
59.94p |
28 |
AVC |
|
FHD/8bit/20M/30p |
|
|
|
1920×1080 |
16:9 |
29.97p |
20 |
AVC |
|
FHD/8bit/24M/24p |
|
|
|
1920×1080 |
16:9 |
23.98p |
24 |
AVC |
|
システム周波数：[50.00Hz(PAL)] |
||||||||
|
動画画質 |
動画撮影範囲 |
解像度 |
横縦比 |
(A) |
(B) |
(C) |
||
|
FULL |
APS-C |
|
||||||
|
4K/10bit/100M/50p |
|
|
|
3840×2160 |
16:9 |
50.00p |
100 |
HEVC |
|
4K/10bit/72M/25p |
|
|
|
3840×2160 |
16:9 |
25.00p |
72 |
HEVC |
|
4K/8bit/100M/25p |
|
|
|
3840×2160 |
16:9 |
25.00p |
100 |
AVC |
|
FHD/8bit/28M/50p |
|
|
|
1920×1080 |
16:9 |
50.00p |
28 |
AVC |
|
FHD/8bit/20M/25p |
|
|
|
1920×1080 |
16:9 |
25.00p |
20 |
AVC |
記録ファイル形式（動画）：[MOV]
YUV、ビット数、映像圧縮
– [422/10-I]の動画画質：4:2:2、10 bit、ALL-Intra
– [422/10-L]の動画画質：4:2:2、10 bit、Long GOP
– [420/10-L]の動画画質：4:2:0、10 bit、Long GOP
– [420/8-L]の動画画質：4:2:0、8 bit、Long GOP
音声フォーマット：LPCM（2ch／4ch）
XLRマイクロホンアダプター（別売：DMW-XLR2）接続時、[4chオーディオ記録]を[XLR]または[XLR＋カメラ]にすると、4チャンネルの音声を記録できます。
：[]モード時にだけ設定および撮影ができます。
(A) 記録フレームレート
(B) ビットレート（Mbps）
(C) ビデオ圧縮方式（HEVC：H.265/HEVC、 AVC：H.264/MPEG-4 AVC）
|
システム周波数：[59.94Hz(NTSC)] |
|||||||||
|
動画画質 |
|
動画撮影範囲 |
解像度 |
横縦比 |
(A) |
(B) |
(C) |
||
|
FULL |
APS-C |
|
|||||||
|
6K/30p/420/10-L |
|
|
|
|
5952×3968 |
3:2 |
29.97p |
200 |
HEVC |
|
6K/24p/420/10-L |
|
|
|
|
5952×3968 |
3:2 |
23.98p |
200 |
HEVC |
|
6K/60p/420/10-L |
|
|
|
|
5952×2512 |
2.4:1 |
59.94p |
300 |
HEVC |
|
6K/48p/420/10-L |
|
|
|
|
5952×2512 |
2.4:1 |
47.95p |
300 |
HEVC |
|
6K/30p/420/10-L |
|
|
|
|
5952×2512 |
2.4:1 |
29.97p |
200 |
HEVC |
|
6K/24p/420/10-L |
|
|
|
|
5952×2512 |
2.4:1 |
23.98p |
200 |
HEVC |
|
5.9K/60p/420/10-L |
|
|
|
|
5888×3312 |
16:9 |
59.94p |
300 |
HEVC |
|
5.9K/48p/420/10-L |
|
|
|
|
5888×3312 |
16:9 |
47.95p |
300 |
HEVC |
|
5.9K/30p/420/10-L |
|
|
|
|
5888×3312 |
16:9 |
29.97p |
200 |
HEVC |
|
5.9K/24p/420/10-L |
|
|
|
|
5888×3312 |
16:9 |
23.98p |
200 |
HEVC |
|
5.8K/60p/420/10-L |
|
|
|
|
5760×3040 |
17:9 |
59.94p |
300 |
HEVC |
|
5.8K/48p/420/10-L |
|
|
|
|
5760×3040 |
17:9 |
47.95p |
300 |
HEVC |
|
5.8K/30p/420/10-L |
|
|
|
|
5760×3040 |
17:9 |
29.97p |
200 |
HEVC |
|
5.8K/24p/420/10-L |
|
|
|
|
5760×3040 |
17:9 |
23.98p |
200 |
HEVC |
|
5.1K/60p/420/10-L |
|
|
|
|
5088×3392 |
3:2 |
59.94p |
300 |
HEVC |
|
5.1K/48p/420/10-L |
|
|
|
|
5088×3392 |
3:2 |
47.95p |
300 |
HEVC |
|
5.1K/30p/420/10-L |
|
|
|
|
5088×3392 |
3:2 |
29.97p |
200 |
HEVC |
|
5.1K/24p/420/10-L |
|
|
|
|
5088×3392 |
3:2 |
23.98p |
200 |
HEVC |
|
4.8K/60p/420/10-L |
|
|
|
|
4800×3600 |
4:3 |
59.94p |
300 |
HEVC |
|
4.8K/48p/420/10-L |
|
|
|
|
4800×3600 |
4:3 |
47.95p |
300 |
HEVC |
|
4.8K/30p/420/10-L |
|
|
|
|
4800×3600 |
4:3 |
29.97p |
200 |
HEVC |
|
4.8K/24p/420/10-L |
|
|
|
|
4800×3600 |
4:3 |
23.98p |
200 |
HEVC |
|
3.3K/120p/420/10-L |
|
|
|
|
3328×2496 |
4:3 |
119.88p |
300 |
HEVC |
|
3.3K/60p/422/10-I(H) |
|
|
|
|
3328×2496 |
4:3 |
59.94p |
800 |
AVC |
|
3.3K/60p/422/10-I(L) |
|
|
|
|
3328×2496 |
4:3 |
59.94p |
600 |
AVC |
|
3.3K/60p/422/10-L |
|
|
|
|
3328×2496 |
4:3 |
59.94p |
200 |
AVC |
|
3.3K/60p/420/10-L |
|
|
|
|
3328×2496 |
4:3 |
59.94p |
200 |
HEVC |
|
3.3K/48p/422/10-I(H) |
|
|
|
|
3328×2496 |
4:3 |
47.95p |
800 |
AVC |
|
3.3K/48p/422/10-I(L) |
|
|
|
|
3328×2496 |
4:3 |
47.95p |
600 |
AVC |
|
3.3K/48p/422/10-L |
|
|
|
|
3328×2496 |
4:3 |
47.95p |
200 |
AVC |
|
3.3K/48p/420/10-L |
|
|
|
|
3328×2496 |
4:3 |
47.95p |
200 |
HEVC |
|
3.3K/30p/422/10-I |
|
|
|
|
3328×2496 |
4:3 |
29.97p |
400 |
AVC |
|
3.3K/30p/422/10-L |
|
|
|
|
3328×2496 |
4:3 |
29.97p |
150 |
AVC |
|
3.3K/30p/420/10-L |
|
|
|
|
3328×2496 |
4:3 |
29.97p |
150 |
HEVC |
|
3.3K/24p/422/10-I |
|
|
|
|
3328×2496 |
4:3 |
23.98p |
400 |
AVC |
|
3.3K/24p/422/10-L |
|
|
|
|
3328×2496 |
4:3 |
23.98p |
150 |
AVC |
|
3.3K/24p/420/10-L |
|
|
|
|
3328×2496 |
4:3 |
23.98p |
150 |
HEVC |
|
C4K/120p/420/10-L |
|
|
|
|
4096×2160 |
17:9 |
119.88p |
300 |
HEVC |
|
C4K/96p/420/10-L |
|
|
|
|
4096×2160 |
17:9 |
95.90p |
300 |
HEVC |
|
C4K/60p/422/10-I(H) |
|
|
|
|
4096×2160 |
17:9 |
59.94p |
800 |
AVC |
|
C4K/60p/422/10-I(L) |
|
|
|
|
4096×2160 |
17:9 |
59.94p |
600 |
AVC |
|
C4K/60p/422/10-L |
|
|
|
|
4096×2160 |
17:9 |
59.94p |
200 |
AVC |
|
C4K/60p/420/10-L |
|
|
|
|
4096×2160 |
17:9 |
59.94p |
200 |
HEVC |
|
C4K/60p/420/8-L |
|
|
|
|
4096×2160 |
17:9 |
59.94p |
150 |
AVC |
|
C4K/48p/422/10-I(H) |
|
|
|
|
4096×2160 |
17:9 |
47.95p |
800 |
AVC |
|
C4K/48p/422/10-I(L) |
|
|
|
|
4096×2160 |
17:9 |
47.95p |
600 |
AVC |
|
C4K/48p/422/10-L |
|
|
|
|
4096×2160 |
17:9 |
47.95p |
200 |
AVC |
|
C4K/48p/420/10-L |
|
|
|
|
4096×2160 |
17:9 |
47.95p |
200 |
HEVC |
|
C4K/30p/422/10-I |
|
|
|
|
4096×2160 |
17:9 |
29.97p |
400 |
AVC |
|
C4K/30p/422/10-L |
|
|
|
|
4096×2160 |
17:9 |
29.97p |
150 |
AVC |
|
C4K/30p/420/10-L |
|
|
|
|
4096×2160 |
17:9 |
29.97p |
150 |
HEVC |
|
C4K/30p/420/8-L |
|
|
|
|
4096×2160 |
17:9 |
29.97p |
100 |
AVC |
|
C4K/24p/422/10-I |
|
|
|
|
4096×2160 |
17:9 |
23.98p |
400 |
AVC |
|
C4K/24p/422/10-L |
|
|
|
|
4096×2160 |
17:9 |
23.98p |
150 |
AVC |
|
C4K/24p/420/10-L |
|
|
|
|
4096×2160 |
17:9 |
23.98p |
150 |
HEVC |
|
C4K/24p/420/8-L |
|
|
|
|
4096×2160 |
17:9 |
23.98p |
100 |
AVC |
|
Cs4K/120p/420/10-L |
|
|
|
|
4096×1728 |
2.4:1 |
119.88p |
300 |
HEVC |
|
Cs4K/96p/420/10-L |
|
|
|
|
4096×1728 |
2.4:1 |
95.90p |
300 |
HEVC |
|
Cs4K/60p/422/10-I(H) |
|
|
|
|
4096×1728 |
2.4:1 |
59.94p |
800 |
AVC |
|
Cs4K/60p/422/10-I(L) |
|
|
|
|
4096×1728 |
2.4:1 |
59.94p |
600 |
AVC |
|
Cs4K/60p/422/10-L |
|
|
|
|
4096×1728 |
2.4:1 |
59.94p |
200 |
AVC |
|
Cs4K/60p/420/10-L |
|
|
|
|
4096×1728 |
2.4:1 |
59.94p |
200 |
HEVC |
|
Cs4K/60p/420/8-L |
|
|
|
|
4096×1728 |
2.4:1 |
59.94p |
150 |
AVC |
|
Cs4K/48p/422/10-I(H) |
|
|
|
|
4096×1728 |
2.4:1 |
47.95p |
800 |
AVC |
|
Cs4K/48p/422/10-I(L) |
|
|
|
|
4096×1728 |
2.4:1 |
47.95p |
600 |
AVC |
|
Cs4K/48p/422/10-L |
|
|
|
|
4096×1728 |
2.4:1 |
47.95p |
200 |
AVC |
|
Cs4K/48p/420/10-L |
|
|
|
|
4096×1728 |
2.4:1 |
47.95p |
200 |
HEVC |
|
Cs4K/30p/422/10-I |
|
|
|
|
4096×1728 |
2.4:1 |
29.97p |
400 |
AVC |
|
Cs4K/30p/422/10-L |
|
|
|
|
4096×1728 |
2.4:1 |
29.97p |
150 |
AVC |
|
Cs4K/30p/420/10-L |
|
|
|
|
4096×1728 |
2.4:1 |
29.97p |
150 |
HEVC |
|
Cs4K/30p/420/8-L |
|
|
|
|
4096×1728 |
2.4:1 |
29.97p |
100 |
AVC |
|
Cs4K/24p/422/10-I |
|
|
|
|
4096×1728 |
2.4:1 |
23.98p |
400 |
AVC |
|
Cs4K/24p/422/10-L |
|
|
|
|
4096×1728 |
2.4:1 |
23.98p |
150 |
AVC |
|
Cs4K/24p/420/10-L |
|
|
|
|
4096×1728 |
2.4:1 |
23.98p |
150 |
HEVC |
|
Cs4K/24p/420/8-L |
|
|
|
|
4096×1728 |
2.4:1 |
23.98p |
100 |
AVC |
|
4K/120p/420/10-L |
|
|
|
|
3840×2160 |
16:9 |
119.88p |
300 |
HEVC |
|
4K/60p/422/10-I(H) |
|
|
|
|
3840×2160 |
16:9 |
59.94p |
800 |
AVC |
|
4K/60p/422/10-I(L) |
|
|
|
|
3840×2160 |
16:9 |
59.94p |
600 |
AVC |
|
4K/60p/422/10-L |
|
|
|
|
3840×2160 |
16:9 |
59.94p |
200 |
AVC |
|
4K/60p/420/10-L |
|
|
|
|
3840×2160 |
16:9 |
59.94p |
200 |
HEVC |
|
4K/60p/420/8-L |
|
|
|
|
3840×2160 |
16:9 |
59.94p |
150 |
AVC |
|
4K/48p/422/10-I(H) |
|
|
|
|
3840×2160 |
16:9 |
47.95p |
800 |
AVC |
|
4K/48p/422/10-I(L) |
|
|
|
|
3840×2160 |
16:9 |
47.95p |
600 |
AVC |
|
4K/48p/422/10-L |
|
|
|
|
3840×2160 |
16:9 |
47.95p |
200 |
AVC |
|
4K/48p/420/10-L |
|
|
|
|
3840×2160 |
16:9 |
47.95p |
200 |
HEVC |
|
4K/30p/422/10-I |
|
|
|
|
3840×2160 |
16:9 |
29.97p |
400 |
AVC |
|
4K/30p/422/10-L |
|
|
|
|
3840×2160 |
16:9 |
29.97p |
150 |
AVC |
|
4K/30p/420/10-L |
|
|
|
|
3840×2160 |
16:9 |
29.97p |
150 |
HEVC |
|
4K/30p/420/8-L |
|
|
|
|
3840×2160 |
16:9 |
29.97p |
100 |
AVC |
|
4K/24p/422/10-I |
|
|
|
|
3840×2160 |
16:9 |
23.98p |
400 |
AVC |
|
4K/24p/422/10-L |
|
|
|
|
3840×2160 |
16:9 |
23.98p |
150 |
AVC |
|
4K/24p/420/10-L |
|
|
|
|
3840×2160 |
16:9 |
23.98p |
150 |
HEVC |
|
4K/24p/420/8-L |
|
|
|
|
3840×2160 |
16:9 |
23.98p |
100 |
AVC |
|
FHD/240p/422/10-I |
|
|
|
|
1920×1080 |
16:9 |
239.76p |
800 |
AVC |
|
FHD/240p/422/10-L |
|
|
|
|
1920×1080 |
16:9 |
239.76p |
200 |
AVC |
|
FHD/240p/420/10-L |
|
|
|
|
1920×1080 |
16:9 |
239.76p |
200 |
HEVC |
|
FHD/120p/422/10-I |
|
|
|
|
1920×1080 |
16:9 |
119.88p |
400 |
AVC |
|
FHD/120p/422/10-L |
|
|
|
|
1920×1080 |
16:9 |
119.88p |
150 |
AVC |
|
FHD/120p/420/10-L |
|
|
|
|
1920×1080 |
16:9 |
119.88p |
150 |
HEVC |
|
FHD/60p/422/10-I |
|
|
|
|
1920×1080 |
16:9 |
59.94p |
200 |
AVC |
|
FHD/60p/422/10-L |
|
|
|
|
1920×1080 |
16:9 |
59.94p |
100 |
AVC |
|
FHD/60p/420/10-L |
|
|
|
|
1920×1080 |
16:9 |
59.94p |
100 |
HEVC |
|
FHD/60p/420/8-L |
|
|
|
|
1920×1080 |
16:9 |
59.94p |
50 |
AVC |
|
FHD/48p/422/10-I |
|
|
|
|
1920×1080 |
16:9 |
47.95p |
200 |
AVC |
|
FHD/48p/422/10-L |
|
|
|
|
1920×1080 |
16:9 |
47.95p |
100 |
AVC |
|
FHD/48p/420/10-L |
|
|
|
|
1920×1080 |
16:9 |
47.95p |
100 |
HEVC |
|
FHD/30p/422/10-I |
|
|
|
|
1920×1080 |
16:9 |
29.97p |
200 |
AVC |
|
FHD/30p/422/10-L |
|
|
|
|
1920×1080 |
16:9 |
29.97p |
100 |
AVC |
|
FHD/30p/420/10-L |
|
|
|
|
1920×1080 |
16:9 |
29.97p |
100 |
HEVC |
|
FHD/30p/420/8-L |
|
|
|
|
1920×1080 |
16:9 |
29.97p |
25 |
AVC |
|
FHD/24p/422/10-I |
|
|
|
|
1920×1080 |
16:9 |
23.98p |
200 |
AVC |
|
FHD/24p/422/10-L |
|
|
|
|
1920×1080 |
16:9 |
23.98p |
100 |
AVC |
|
FHD/24p/420/10-L |
|
|
|
|
1920×1080 |
16:9 |
23.98p |
100 |
HEVC |
|
FHD/24p/420/8-L |
|
|
|
|
1920×1080 |
16:9 |
23.98p |
25 |
AVC |
|
システム周波数：[50.00Hz(PAL)] |
|||||||||
|
動画画質 |
|
動画撮影範囲 |
解像度 |
横縦比 |
(A) |
(B) |
(C) |
||
|
FULL |
APS-C |
|
|||||||
|
6K/25p/420/10-L |
|
|
|
|
5952×3968 |
3:2 |
25.00p |
200 |
HEVC |
|
6K/50p/420/10-L |
|
|
|
|
5952×2512 |
2.4:1 |
50.00p |
300 |
HEVC |
|
6K/25p/420/10-L |
|
|
|
|
5952×2512 |
2.4:1 |
25.00p |
200 |
HEVC |
|
5.9K/50p/420/10-L |
|
|
|
|
5888×3312 |
16:9 |
50.00p |
300 |
HEVC |
|
5.9K/25p/420/10-L |
|
|
|
|
5888×3312 |
16:9 |
25.00p |
200 |
HEVC |
|
5.8K/50p/420/10-L |
|
|
|
|
5760×3040 |
17:9 |
50.00p |
300 |
HEVC |
|
5.8K/25p/420/10-L |
|
|
|
|
5760×3040 |
17:9 |
25.00p |
200 |
HEVC |
|
5.1K/50p/420/10-L |
|
|
|
|
5088×3392 |
3:2 |
50.00p |
300 |
HEVC |
|
5.1K/25p/420/10-L |
|
|
|
|
5088×3392 |
3:2 |
25.00p |
200 |
HEVC |
|
4.8K/50p/420/10-L |
|
|
|
|
4800×3600 |
4:3 |
50.00p |
300 |
HEVC |
|
4.8K/25p/420/10-L |
|
|
|
|
4800×3600 |
4:3 |
25.00p |
200 |
HEVC |
|
3.3K/100p/420/10-L |
|
|
|
|
3328×2496 |
4:3 |
100.00p |
300 |
HEVC |
|
3.3K/50p/422/10-I(H) |
|
|
|
|
3328×2496 |
4:3 |
50.00p |
800 |
AVC |
|
3.3K/50p/422/10-I(L) |
|
|
|
|
3328×2496 |
4:3 |
50.00p |
600 |
AVC |
|
3.3K/50p/422/10-L |
|
|
|
|
3328×2496 |
4:3 |
50.00p |
200 |
AVC |
|
3.3K/50p/420/10-L |
|
|
|
|
3328×2496 |
4:3 |
50.00p |
200 |
HEVC |
|
3.3K/25p/422/10-I |
|
|
|
|
3328×2496 |
4:3 |
25.00p |
400 |
AVC |
|
3.3K/25p/422/10-L |
|
|
|
|
3328×2496 |
4:3 |
25.00p |
150 |
AVC |
|
3.3K/25p/420/10-L |
|
|
|
|
3328×2496 |
4:3 |
25.00p |
150 |
HEVC |
|
C4K/100p/420/10-L |
|
|
|
|
4096×2160 |
17:9 |
100.00p |
300 |
HEVC |
|
C4K/50p/422/10-I(H) |
|
|
|
|
4096×2160 |
17:9 |
50.00p |
800 |
AVC |
|
C4K/50p/422/10-I(L) |
|
|
|
|
4096×2160 |
17:9 |
50.00p |
600 |
AVC |
|
C4K/50p/422/10-L |
|
|
|
|
4096×2160 |
17:9 |
50.00p |
200 |
AVC |
|
C4K/50p/420/10-L |
|
|
|
|
4096×2160 |
17:9 |
50.00p |
200 |
HEVC |
|
C4K/50p/420/8-L |
|
|
|
|
4096×2160 |
17:9 |
50.00p |
150 |
AVC |
|
C4K/25p/422/10-I |
|
|
|
|
4096×2160 |
17:9 |
25.00p |
400 |
AVC |
|
C4K/25p/422/10-L |
|
|
|
|
4096×2160 |
17:9 |
25.00p |
150 |
AVC |
|
C4K/25p/420/10-L |
|
|
|
|
4096×2160 |
17:9 |
25.00p |
150 |
HEVC |
|
C4K/25p/420/8-L |
|
|
|
|
4096×2160 |
17:9 |
25.00p |
100 |
AVC |
|
Cs4K/100p/420/10-L |
|
|
|
|
4096×1728 |
2.4:1 |
100.00p |
300 |
HEVC |
|
Cs4K/50p/422/10-I(H) |
|
|
|
|
4096×1728 |
2.4:1 |
50.00p |
800 |
AVC |
|
Cs4K/50p/422/10-I(L) |
|
|
|
|
4096×1728 |
2.4:1 |
50.00p |
600 |
AVC |
|
Cs4K/50p/422/10-L |
|
|
|
|
4096×1728 |
2.4:1 |
50.00p |
200 |
AVC |
|
Cs4K/50p/420/10-L |
|
|
|
|
4096×1728 |
2.4:1 |
50.00p |
200 |
HEVC |
|
Cs4K/50p/420/8-L |
|
|
|
|
4096×1728 |
2.4:1 |
50.00p |
150 |
AVC |
|
Cs4K/25p/422/10-I |
|
|
|
|
4096×1728 |
2.4:1 |
25.00p |
400 |
AVC |
|
Cs4K/25p/422/10-L |
|
|
|
|
4096×1728 |
2.4:1 |
25.00p |
150 |
AVC |
|
Cs4K/25p/420/10-L |
|
|
|
|
4096×1728 |
2.4:1 |
25.00p |
150 |
HEVC |
|
Cs4K/25p/420/8-L |
|
|
|
|
4096×1728 |
2.4:1 |
25.00p |
100 |
AVC |
|
4K/100p/420/10-L |
|
|
|
|
3840×2160 |
16:9 |
100.00p |
300 |
HEVC |
|
4K/50p/422/10-I(H) |
|
|
|
|
3840×2160 |
16:9 |
50.00p |
800 |
AVC |
|
4K/50p/422/10-I(L) |
|
|
|
|
3840×2160 |
16:9 |
50.00p |
600 |
AVC |
|
4K/50p/422/10-L |
|
|
|
|
3840×2160 |
16:9 |
50.00p |
200 |
AVC |
|
4K/50p/420/10-L |
|
|
|
|
3840×2160 |
16:9 |
50.00p |
200 |
HEVC |
|
4K/50p/420/8-L |
|
|
|
|
3840×2160 |
16:9 |
50.00p |
150 |
AVC |
|
4K/25p/422/10-I |
|
|
|
|
3840×2160 |
16:9 |
25.00p |
400 |
AVC |
|
4K/25p/422/10-L |
|
|
|
|
3840×2160 |
16:9 |
25.00p |
150 |
AVC |
|
4K/25p/420/10-L |
|
|
|
|
3840×2160 |
16:9 |
25.00p |
150 |
HEVC |
|
4K/25p/420/8-L |
|
|
|
|
3840×2160 |
16:9 |
25.00p |
100 |
AVC |
|
FHD/200p/422/10-I |
|
|
|
|
1920×1080 |
16:9 |
200.00p |
800 |
AVC |
|
FHD/200p/422/10-L |
|
|
|
|
1920×1080 |
16:9 |
200.00p |
200 |
AVC |
|
FHD/200p/420/10-L |
|
|
|
|
1920×1080 |
16:9 |
200.00p |
200 |
HEVC |
|
FHD/100p/422/10-I |
|
|
|
|
1920×1080 |
16:9 |
100.00p |
400 |
AVC |
|
FHD/100p/422/10-L |
|
|
|
|
1920×1080 |
16:9 |
100.00p |
150 |
AVC |
|
FHD/100p/420/10-L |
|
|
|
|
1920×1080 |
16:9 |
100.00p |
150 |
HEVC |
|
FHD/50p/422/10-I |
|
|
|
|
1920×1080 |
16:9 |
50.00p |
200 |
AVC |
|
FHD/50p/422/10-L |
|
|
|
|
1920×1080 |
16:9 |
50.00p |
100 |
AVC |
|
FHD/50p/420/10-L |
|
|
|
|
1920×1080 |
16:9 |
50.00p |
100 |
HEVC |
|
FHD/50p/420/8-L |
|
|
|
|
1920×1080 |
16:9 |
50.00p |
50 |
AVC |
|
FHD/25p/422/10-I |
|
|
|
|
1920×1080 |
16:9 |
25.00p |
200 |
AVC |
|
FHD/25p/422/10-L |
|
|
|
|
1920×1080 |
16:9 |
25.00p |
100 |
AVC |
|
FHD/25p/420/10-L |
|
|
|
|
1920×1080 |
16:9 |
25.00p |
100 |
HEVC |
|
FHD/25p/420/8-L |
|
|
|
|
1920×1080 |
16:9 |
25.00p |
25 |
AVC |
|
システム周波数：[24.00Hz(CINEMA)] |
|||||||||
|
動画画質 |
|
動画撮影範囲 |
解像度 |
横縦比 |
(A) |
(B) |
(C) |
||
|
FULL |
APS-C |
|
|||||||
|
6K/24p/420/10-L |
|
|
|
|
5952×3968 |
3:2 |
24.00p |
200 |
HEVC |
|
6K/48p/420/10-L |
|
|
|
|
5952×2512 |
2.4:1 |
48.00p |
300 |
HEVC |
|
6K/24p/420/10-L |
|
|
|
|
5952×2512 |
2.4:1 |
24.00p |
200 |
HEVC |
|
5.9K/48p/420/10-L |
|
|
|
|
5888×3312 |
16:9 |
48.00p |
300 |
HEVC |
|
5.9K/24p/420/10-L |
|
|
|
|
5888×3312 |
16:9 |
24.00p |
200 |
HEVC |
|
5.8K/48p/420/10-L |
|
|
|
|
5760×3040 |
17:9 |
48.00p |
300 |
HEVC |
|
5.8K/24p/420/10-L |
|
|
|
|
5760×3040 |
17:9 |
24.00p |
200 |
HEVC |
|
5.1K/48p/420/10-L |
|
|
|
|
5088×3392 |
3:2 |
48.00p |
300 |
HEVC |
|
5.1K/24p/420/10-L |
|
|
|
|
5088×3392 |
3:2 |
24.00p |
200 |
HEVC |
|
4.8K/48p/420/10-L |
|
|
|
|
4800×3600 |
4:3 |
48.00p |
300 |
HEVC |
|
4.8K/24p/420/10-L |
|
|
|
|
4800×3600 |
4:3 |
24.00p |
200 |
HEVC |
|
3.3K/120p/420/10-L |
|
|
|
|
3328×2496 |
4:3 |
120.00p |
300 |
HEVC |
|
3.3K/48p/422/10-I(H) |
|
|
|
|
3328×2496 |
4:3 |
48.00p |
800 |
AVC |
|
3.3K/48p/422/10-I(L) |
|
|
|
|
3328×2496 |
4:3 |
48.00p |
600 |
AVC |
|
3.3K/48p/422/10-L |
|
|
|
|
3328×2496 |
4:3 |
48.00p |
200 |
AVC |
|
3.3K/48p/420/10-L |
|
|
|
|
3328×2496 |
4:3 |
48.00p |
200 |
HEVC |
|
3.3K/24p/422/10-I |
|
|
|
|
3328×2496 |
4:3 |
24.00p |
400 |
AVC |
|
3.3K/24p/422/10-L |
|
|
|
|
3328×2496 |
4:3 |
24.00p |
150 |
AVC |
|
3.3K/24p/420/10-L |
|
|
|
|
3328×2496 |
4:3 |
24.00p |
150 |
HEVC |
|
C4K/120p/420/10-L |
|
|
|
|
4096×2160 |
17:9 |
120.00p |
300 |
HEVC |
|
C4K/96p/420/10-L |
|
|
|
|
4096×2160 |
17:9 |
96.00p |
300 |
HEVC |
|
C4K/48p/422/10-I(H) |
|
|
|
|
4096×2160 |
17:9 |
48.00p |
800 |
AVC |
|
C4K/48p/422/10-I(L) |
|
|
|
|
4096×2160 |
17:9 |
48.00p |
600 |
AVC |
|
C4K/48p/422/10-L |
|
|
|
|
4096×2160 |
17:9 |
48.00p |
200 |
AVC |
|
C4K/48p/420/10-L |
|
|
|
|
4096×2160 |
17:9 |
48.00p |
200 |
HEVC |
|
C4K/24p/422/10-I |
|
|
|
|
4096×2160 |
17:9 |
24.00p |
400 |
AVC |
|
C4K/24p/422/10-L |
|
|
|
|
4096×2160 |
17:9 |
24.00p |
150 |
AVC |
|
C4K/24p/420/10-L |
|
|
|
|
4096×2160 |
17:9 |
24.00p |
150 |
HEVC |
|
C4K/24p/420/8-L |
|
|
|
|
4096×2160 |
17:9 |
24.00p |
100 |
AVC |
|
Cs4K/120p/420/10-L |
|
|
|
|
4096×1728 |
2.4:1 |
120.00p |
300 |
HEVC |
|
Cs4K/96p/420/10-L |
|
|
|
|
4096×1728 |
2.4:1 |
96.00p |
300 |
HEVC |
|
Cs4K/48p/422/10-I(H) |
|
|
|
|
4096×1728 |
2.4:1 |
48.00p |
800 |
AVC |
|
Cs4K/48p/422/10-I(L) |
|
|
|
|
4096×1728 |
2.4:1 |
48.00p |
600 |
AVC |
|
Cs4K/48p/422/10-L |
|
|
|
|
4096×1728 |
2.4:1 |
48.00p |
200 |
AVC |
|
Cs4K/48p/420/10-L |
|
|
|
|
4096×1728 |
2.4:1 |
48.00p |
200 |
HEVC |
|
Cs4K/24p/422/10-I |
|
|
|
|
4096×1728 |
2.4:1 |
24.00p |
400 |
AVC |
|
Cs4K/24p/422/10-L |
|
|
|
|
4096×1728 |
2.4:1 |
24.00p |
150 |
AVC |
|
Cs4K/24p/420/10-L |
|
|
|
|
4096×1728 |
2.4:1 |
24.00p |
150 |
HEVC |
|
Cs4K/24p/420/8-L |
|
|
|
|
4096×1728 |
2.4:1 |
24.00p |
100 |
AVC |
|
4K/120p/420/10-L |
|
|
|
|
3840×2160 |
16:9 |
120.00p |
300 |
HEVC |
|
4K/48p/422/10-I(H) |
|
|
|
|
3840×2160 |
16:9 |
48.00p |
800 |
AVC |
|
4K/48p/422/10-I(L) |
|
|
|
|
3840×2160 |
16:9 |
48.00p |
600 |
AVC |
|
4K/48p/422/10-L |
|
|
|
|
3840×2160 |
16:9 |
48.00p |
200 |
AVC |
|
4K/48p/420/10-L |
|
|
|
|
3840×2160 |
16:9 |
48.00p |
200 |
HEVC |
|
4K/24p/422/10-I |
|
|
|
|
3840×2160 |
16:9 |
24.00p |
400 |
AVC |
|
4K/24p/422/10-L |
|
|
|
|
3840×2160 |
16:9 |
24.00p |
150 |
AVC |
|
4K/24p/420/10-L |
|
|
|
|
3840×2160 |
16:9 |
24.00p |
150 |
HEVC |
|
4K/24p/420/8-L |
|
|
|
|
3840×2160 |
16:9 |
24.00p |
100 |
AVC |
|
FHD/48p/422/10-I |
|
|
|
|
1920×1080 |
16:9 |
48.00p |
200 |
AVC |
|
FHD/48p/422/10-L |
|
|
|
|
1920×1080 |
16:9 |
48.00p |
100 |
AVC |
|
FHD/48p/420/10-L |
|
|
|
|
1920×1080 |
16:9 |
48.00p |
100 |
HEVC |
|
FHD/24p/422/10-I |
|
|
|
|
1920×1080 |
16:9 |
24.00p |
200 |
AVC |
|
FHD/24p/422/10-L |
|
|
|
|
1920×1080 |
16:9 |
24.00p |
100 |
AVC |
|
FHD/24p/420/10-L |
|
|
|
|
1920×1080 |
16:9 |
24.00p |
100 |
HEVC |
|
FHD/24p/420/8-L |
|
|
|
|
1920×1080 |
16:9 |
24.00p |
25 |
AVC |
-
[動画画質]の[（H）]はビットレートが800 Mbps、[（L）]は600 Mbpsを示します。
[（H）]の動画はSDカードに記録できません。
記録ファイル形式（動画）：[Apple ProRes]
音声フォーマット：LPCM（2ch／4ch）
XLRマイクロホンアダプター（別売：DMW-XLR2）接続時、[4chオーディオ記録]を[XLR]または[XLR＋カメラ]にすると、4チャンネルの音声を記録できます。
：[]モード時にだけ設定および撮影ができます。
(A) 記録フレームレート
(B) ビットレート
(C) ビデオ圧縮方式（RAW HQ：Apple ProRes RAW HQ、 RAW：Apple ProRes RAW、422 HQ：Apple ProRes 422 HQ、 422：Apple ProRes 422）
|
システム周波数：[59.94Hz(NTSC)] |
|||||||||
|
動画画質 |
|
動画撮影範囲 |
解像度 |
横縦比 |
(A) |
(B) |
(C) |
||
|
FULL |
APS-C |
|
|||||||
|
5.8K/30p/RAW HQ |
|
|
|
|
5760×3040 |
17:9 |
29.97p |
4.2 Gbps |
RAW HQ |
|
5.8K/30p/RAW |
|
|
|
|
5760×3040 |
17:9 |
29.97p |
2.8 Gbps |
RAW |
|
5.8K/30p/422 HQ |
|
|
|
|
5760×3040 |
17:9 |
29.97p |
1.9 Gbps |
422 HQ |
|
5.8K/30p/422 |
|
|
|
|
5760×3040 |
17:9 |
29.97p |
1.3 Gbps |
422 |
|
5.8K/24p/RAW HQ |
|
|
|
|
5760×3040 |
17:9 |
23.98p |
3.4 Gbps |
RAW HQ |
|
5.8K/24p/RAW |
|
|
|
|
5760×3040 |
17:9 |
23.98p |
2.2 Gbps |
RAW |
|
5.8K/24p/422 HQ |
|
|
|
|
5760×3040 |
17:9 |
23.98p |
1.5 Gbps |
422 HQ |
|
5.8K/24p/422 |
|
|
|
|
5760×3040 |
17:9 |
23.98p |
1.0 Gbps |
422 |
|
4.8K/30p/422 HQ |
|
|
|
|
4800×3600 |
4:3 |
29.97p |
1.9 Gbps |
422 HQ |
|
4.8K/30p/422 |
|
|
|
|
4800×3600 |
4:3 |
29.97p |
1.3 Gbps |
422 |
|
4.8K/24p/422 HQ |
|
|
|
|
4800×3600 |
4:3 |
23.98p |
1.5 Gbps |
422 HQ |
|
4.8K/24p/422 |
|
|
|
|
4800×3600 |
4:3 |
23.98p |
1.0 Gbps |
422 |
|
3.3K/60p/422 HQ |
|
|
|
|
3328×2496 |
4:3 |
59.94p |
1.8 Gbps |
422 HQ |
|
3.3K/60p/422 |
|
|
|
|
3328×2496 |
4:3 |
59.94p |
1.2 Gbps |
422 |
|
3.3K/30p/422 HQ |
|
|
|
|
3328×2496 |
4:3 |
29.97p |
913 Mbps |
422 HQ |
|
3.3K/30p/422 |
|
|
|
|
3328×2496 |
4:3 |
29.97p |
609 Mbps |
422 |
|
3.3K/24p/422 HQ |
|
|
|
|
3328×2496 |
4:3 |
23.98p |
730 Mbps |
422 HQ |
|
3.3K/24p/422 |
|
|
|
|
3328×2496 |
4:3 |
23.98p |
487 Mbps |
422 |
|
C4K/60p/RAW HQ |
|
|
|
|
4096×2160 |
17:9 |
59.94p |
4.2 Gbps |
RAW HQ |
|
C4K/60p/RAW |
|
|
|
|
4096×2160 |
17:9 |
59.94p |
2.8 Gbps |
RAW |
|
C4K/60p/422 HQ |
|
|
|
|
4096×2160 |
17:9 |
59.94p |
1.9 Gbps |
422 HQ |
|
C4K/60p/422 |
|
|
|
|
4096×2160 |
17:9 |
59.94p |
1.3 Gbps |
422 |
|
C4K/30p/RAW HQ |
|
|
|
|
4096×2160 |
17:9 |
29.97p |
2.1 Gbps |
RAW HQ |
|
C4K/30p/RAW |
|
|
|
|
4096×2160 |
17:9 |
29.97p |
1.4 Gbps |
RAW |
|
C4K/30p/422 HQ |
|
|
|
|
4096×2160 |
17:9 |
29.97p |
972 Mbps |
422 HQ |
|
C4K/30p/422 |
|
|
|
|
4096×2160 |
17:9 |
29.97p |
648 Mbps |
422 |
|
C4K/24p/RAW HQ |
|
|
|
|
4096×2160 |
17:9 |
23.98p |
1.7 Gbps |
RAW HQ |
|
C4K/24p/RAW |
|
|
|
|
4096×2160 |
17:9 |
23.98p |
1.1 Gbps |
RAW |
|
C4K/24p/422 HQ |
|
|
|
|
4096×2160 |
17:9 |
23.98p |
778 Mbps |
422 HQ |
|
C4K/24p/422 |
|
|
|
|
4096×2160 |
17:9 |
23.98p |
519 Mbps |
422 |
|
Cs4K/60p/422 HQ |
|
|
|
|
4096×1728 |
2.4:1 |
59.94p |
1.6 Gbps |
422 HQ |
|
Cs4K/60p/422 |
|
|
|
|
4096×1728 |
2.4:1 |
59.94p |
1.0 Gbps |
422 |
|
Cs4K/30p/422 HQ |
|
|
|
|
4096×1728 |
2.4:1 |
29.97p |
778 Mbps |
422 HQ |
|
Cs4K/30p/422 |
|
|
|
|
4096×1728 |
2.4:1 |
29.97p |
519 Mbps |
422 |
|
Cs4K/24p/422 HQ |
|
|
|
|
4096×1728 |
2.4:1 |
23.98p |
622 Mbps |
422 HQ |
|
Cs4K/24p/422 |
|
|
|
|
4096×1728 |
2.4:1 |
23.98p |
415 Mbps |
422 |
|
4K/60p/422 HQ |
|
|
|
|
3840×2160 |
16:9 |
59.94p |
1.8 Gbps |
422 HQ |
|
4K/60p/422 |
|
|
|
|
3840×2160 |
16:9 |
59.94p |
1.2 Gbps |
422 |
|
4K/30p/422 HQ |
|
|
|
|
3840×2160 |
16:9 |
29.97p |
911 Mbps |
422 HQ |
|
4K/30p/422 |
|
|
|
|
3840×2160 |
16:9 |
29.97p |
608 Mbps |
422 |
|
4K/24p/422 HQ |
|
|
|
|
3840×2160 |
16:9 |
23.98p |
729 Mbps |
422 HQ |
|
4K/24p/422 |
|
|
|
|
3840×2160 |
16:9 |
23.98p |
486 Mbps |
422 |
|
FHD/120p/422 HQ |
|
|
|
|
1920×1080 |
16:9 |
119.88p |
901 Mbps |
422 HQ |
|
FHD/120p/422 |
|
|
|
|
1920×1080 |
16:9 |
119.88p |
601 Mbps |
422 |
|
FHD/60p/422 HQ |
|
|
|
|
1920×1080 |
16:9 |
59.94p |
454 Mbps |
422 HQ |
|
FHD/60p/422 |
|
|
|
|
1920×1080 |
16:9 |
59.94p |
302 Mbps |
422 |
|
FHD/30p/422 HQ |
|
|
|
|
1920×1080 |
16:9 |
29.97p |
227 Mbps |
422 HQ |
|
FHD/30p/422 |
|
|
|
|
1920×1080 |
16:9 |
29.97p |
151 Mbps |
422 |
|
FHD/24p/422 HQ |
|
|
|
|
1920×1080 |
16:9 |
23.98p |
181 Mbps |
422 HQ |
|
FHD/24p/422 |
|
|
|
|
1920×1080 |
16:9 |
23.98p |
121 Mbps |
422 |
|
システム周波数：[50.00Hz(PAL)] |
|||||||||
|
動画画質 |
|
動画撮影範囲 |
解像度 |
横縦比 |
(A) |
(B) |
(C) |
||
|
FULL |
APS-C |
|
|||||||
|
5.8K/25p/RAW HQ |
|
|
|
|
5760×3040 |
17:9 |
25.00p |
3.5 Gbps |
RAW HQ |
|
5.8K/25p/RAW |
|
|
|
|
5760×3040 |
17:9 |
25.00p |
2.3 Gbps |
RAW |
|
5.8K/25p/422 HQ |
|
|
|
|
5760×3040 |
17:9 |
25.00p |
1.6 Gbps |
422 HQ |
|
5.8K/25p/422 |
|
|
|
|
5760×3040 |
17:9 |
25.00p |
1.1 Gbps |
422 |
|
4.8K/25p/422 HQ |
|
|
|
|
4800×3600 |
4:3 |
25.00p |
1.6 Gbps |
422 HQ |
|
4.8K/25p/422 |
|
|
|
|
4800×3600 |
4:3 |
25.00p |
1.1 Gbps |
422 |
|
3.3K/50p/422 HQ |
|
|
|
|
3328×2496 |
4:3 |
50.00p |
1.5 Gbps |
422 HQ |
|
3.3K/50p/422 |
|
|
|
|
3328×2496 |
4:3 |
50.00p |
1.0 Gbps |
422 |
|
3.3K/25p/422 HQ |
|
|
|
|
3328×2496 |
4:3 |
25.00p |
761 Mbps |
422 HQ |
|
3.3K/25p/422 |
|
|
|
|
3328×2496 |
4:3 |
25.00p |
508 Mbps |
422 |
|
C4K/50p/RAW HQ |
|
|
|
|
4096×2160 |
17:9 |
50.00p |
3.5 Gbps |
RAW HQ |
|
C4K/50p/RAW |
|
|
|
|
4096×2160 |
17:9 |
50.00p |
2.4 Gbps |
RAW |
|
C4K/50p/422 HQ |
|
|
|
|
4096×2160 |
17:9 |
50.00p |
1.6 Gbps |
422 HQ |
|
C4K/50p/422 |
|
|
|
|
4096×2160 |
17:9 |
50.00p |
1.1 Gbps |
422 |
|
C4K/25p/RAW HQ |
|
|
|
|
4096×2160 |
17:9 |
25.00p |
1.8 Gbps |
RAW HQ |
|
C4K/25p/RAW |
|
|
|
|
4096×2160 |
17:9 |
25.00p |
1.2 Gbps |
RAW |
|
C4K/25p/422 HQ |
|
|
|
|
4096×2160 |
17:9 |
25.00p |
811 Mbps |
422 HQ |
|
C4K/25p/422 |
|
|
|
|
4096×2160 |
17:9 |
25.00p |
541 Mbps |
422 |
|
Cs4K/50p/422 HQ |
|
|
|
|
4096×1728 |
2.4:1 |
50.00p |
1.3 Gbps |
422 HQ |
|
Cs4K/50p/422 |
|
|
|
|
4096×1728 |
2.4:1 |
50.00p |
865 Mbps |
422 |
|
Cs4K/25p/422 HQ |
|
|
|
|
4096×1728 |
2.4:1 |
25.00p |
649 Mbps |
422 HQ |
|
Cs4K/25p/422 |
|
|
|
|
4096×1728 |
2.4:1 |
25.00p |
433 Mbps |
422 |
|
4K/50p/422 HQ |
|
|
|
|
3840×2160 |
16:9 |
50.00p |
1.5 Gbps |
422 HQ |
|
4K/50p/422 |
|
|
|
|
3840×2160 |
16:9 |
50.00p |
1.0 Gbps |
422 |
|
4K/25p/422 HQ |
|
|
|
|
3840×2160 |
16:9 |
25.00p |
760 Mbps |
422 HQ |
|
4K/25p/422 |
|
|
|
|
3840×2160 |
16:9 |
25.00p |
507 Mbps |
422 |
|
FHD/100p/422 HQ |
|
|
|
|
1920×1080 |
16:9 |
100.00p |
757 Mbps |
422 HQ |
|
FHD/100p/422 |
|
|
|
|
1920×1080 |
16:9 |
100.00p |
505 Mbps |
422 |
|
FHD/50p/422 HQ |
|
|
|
|
1920×1080 |
16:9 |
50.00p |
378 Mbps |
422 HQ |
|
FHD/50p/422 |
|
|
|
|
1920×1080 |
16:9 |
50.00p |
252 Mbps |
422 |
|
FHD/25p/422 HQ |
|
|
|
|
1920×1080 |
16:9 |
25.00p |
189 Mbps |
422 HQ |
|
FHD/25p/422 |
|
|
|
|
1920×1080 |
16:9 |
25.00p |
126 Mbps |
422 |
|
システム周波数：[24.00Hz(CINEMA)] |
|||||||||
|
動画画質 |
|
動画撮影範囲 |
解像度 |
横縦比 |
(A) |
(B) |
(C) |
||
|
FULL |
APS-C |
|
|||||||
|
5.8K/24p/RAW HQ |
|
|
|
|
5760×3040 |
17:9 |
24.00p |
3.4 Gbps |
RAW HQ |
|
5.8K/24p/RAW |
|
|
|
|
5760×3040 |
17:9 |
24.00p |
2.2 Gbps |
RAW |
|
5.8K/24p/422 HQ |
|
|
|
|
5760×3040 |
17:9 |
24.00p |
1.5 Gbps |
422 HQ |
|
5.8K/24p/422 |
|
|
|
|
5760×3040 |
17:9 |
24.00p |
1.0 Gbps |
422 |
|
4.8K/24p/422 HQ |
|
|
|
|
4800×3600 |
4:3 |
24.00p |
1.5 Gbps |
422 HQ |
|
4.8K/24p/422 |
|
|
|
|
4800×3600 |
4:3 |
24.00p |
1.0 Gbps |
422 |
|
3.3K/24p/422 HQ |
|
|
|
|
3328×2496 |
4:3 |
24.00p |
731 Mbps |
422 HQ |
|
3.3K/24p/422 |
|
|
|
|
3328×2496 |
4:3 |
24.00p |
487 Mbps |
422 |
|
C4K/24p/RAW HQ |
|
|
|
|
4096×2160 |
17:9 |
24.00p |
1.7 Gbps |
RAW HQ |
|
C4K/24p/RAW |
|
|
|
|
4096×2160 |
17:9 |
24.00p |
1.1 Gbps |
RAW |
|
C4K/24p/422 HQ |
|
|
|
|
4096×2160 |
17:9 |
24.00p |
779 Mbps |
422 HQ |
|
C4K/24p/422 |
|
|
|
|
4096×2160 |
17:9 |
24.00p |
519 Mbps |
422 |
|
Cs4K/24p/422 HQ |
|
|
|
|
4096×1728 |
2.4:1 |
24.00p |
623 Mbps |
422 HQ |
|
Cs4K/24p/422 |
|
|
|
|
4096×1728 |
2.4:1 |
24.00p |
415 Mbps |
422 |
|
4K/24p/422 HQ |
|
|
|
|
3840×2160 |
16:9 |
24.00p |
730 Mbps |
422 HQ |
|
4K/24p/422 |
|
|
|
|
3840×2160 |
16:9 |
24.00p |
487 Mbps |
422 |
|
FHD/120p/422 HQ |
|
|
|
|
1920×1080 |
16:9 |
120.00p |
908 Mbps |
422 HQ |
|
FHD/120p/422 |
|
|
|
|
1920×1080 |
16:9 |
120.00p |
606 Mbps |
422 |
|
FHD/24p/422 HQ |
|
|
|
|
1920×1080 |
16:9 |
24.00p |
182 Mbps |
422 HQ |
|
FHD/24p/422 |
|
|
|
|
1920×1080 |
16:9 |
24.00p |
121 Mbps |
422 |
本書では、動画の解像度に応じて以下のように表記します。
– 6K（5952×3968）の動画：6K動画(3:2)
– 6K（5952×2512）の動画：6K動画(2.4:1)
– 5.9K（5888×3312）の動画：5.9K動画
– 5.8K（5760×3040）の動画：5.8K動画
– 5.1K（5088×3392）の動画：5.1K動画
– 4.8K（4800×3600）の動画：4.8K動画
– 3.3K（3328×2496）の動画：3.3K動画
– C4K（4096×2160）の動画：C4K動画
– Cs4K（4096×1728）の動画：Cs4K動画
– 4K（3840×2160）の動画：4K動画
– フルハイビジョン（1920×1080）の動画：FHD動画
|
[動画撮影範囲]が[FULL]のとき – C4K動画（120p/100p) : 約1.17倍 – 4K動画（120p/100p) : 約1.24倍 – FHD動画（240p) : 約1.21倍 [動画撮影範囲]が[APS-C]のとき – 3.3K動画（120p/100p) : 約1.06倍
– 4.8K動画
|
絞り込み
[記録ファイル形式（動画）]を[MOV]または[Apple ProRes]に設定したときは、フレームレート、画素数（解像度）、圧縮形式（YUV、ビット数、映像圧縮）などを指定して、条件に合う動画画質だけを表示できます。
-
[動画画質]の設定画面で[DISP.]ボタンを押す
-
で項目を選び、または
を押す
設定： [フレームレート]／[画素数]／[圧縮形式]／[ハイブリッドログガンマ]／[プロキシ記録]
-
で絞り込む条件を選び、またはを押す
-
[DISP.]ボタンを押して決定する
[動画画質]の設定画面に戻ります。
絞り込みの解除方法
手順3で、[すべて]を選ぶ
以下の操作をした場合も、絞り込みが解除されます。
– [記録ファイル形式（動画）]の変更
– [システム周波数]の変更
– [動画画質（マイリスト）]から動画画質を選択
|
|
マイリスト登録
動画画質を選んでマイリストに登録します。登録した動画画質は[動画画質（マイリスト）]から設定できます。
[動画画質]の設定画面で[Q]ボタンを押す
以下の設定も同時に登録されます。
– [システム周波数]
– [記録ファイル形式（動画）]
– [動画撮影範囲]
マイリストから設定する、消去する
-
[動画画質（マイリスト）]を選ぶ
[] [] [動画画質（マイリスト）]
-
で項目を選び、またはを押す
システム周波数の異なる設定項目は選択できません。
マイリストから消去するには、項目を選んで[Q]ボタンを押してください。
コントロールパネルから設定する
[]／[S&Q]モード時、コントロールパネルから動画画質のマイリストを表示できます。
動画画質の項目をタッチする
マイリストに登録済みの場合は、[動画画質（マイリスト）]の設定画面が表示されます。未登録の場合は、[動画画質]の設定画面が表示されます。
[DISP.]ボタンを押すごとに、[動画画質（マイリスト）]と[動画画質]が切り換わります。
次に設定画面を表示するときは、最後に使用した画面が表示されます。
|
|
