[Optage kval.]

icon_mode-photo_gray icon_mode-movie icon_mode-sq

icon_mode-ia icon_mode-p icon_mode-a icon_mode-s icon_mode-m

Angiver billedkvaliteten for de videoer, der skal optages.

De billedkvaliteter, du kan vælge, afhænger af optagefunktionen samt [Systemfrekvens]- og [Optagefilformat (Video)] -indstillingerne.

De elementer, du kan indstille under [Billedområde til video], afhænger af [Optage kval.]-indstillingerne.

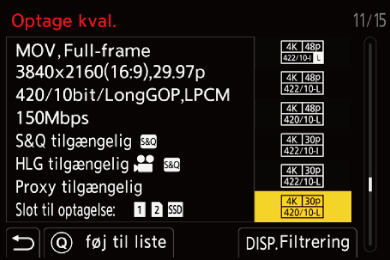

[Optage kval.]-indstillingerne kan også angives ved hjælp af [Filtrering] ( character_reference [Filtrering]) for kun at vise elementer, der opfylder dine betingelser og [føj til liste] ([føj til liste]) for at registrere den optagelseskvalitet, du ofte benytter.

Indstil til [] eller [S&Q]-tilstand.

( character_reference Foto/Video/S&Q knap)

Indstil [Optage kval.].

button_menu-set [ icon_movie ] [ icon_video-image-format ] [Optage kval.]

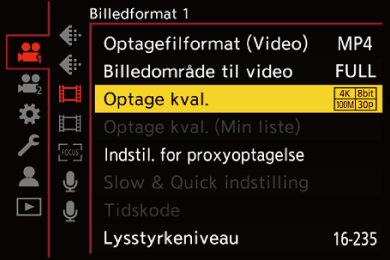

gui_rec-quality_dan

For at optage videoer med en bithastighed på mindst 72 Mbps kræves et SD-kort med tilsvarende hastighedsklasse.

Videoer med en bithastighed på mindst 800 Mbps kan ikke optages til et SD-kort. Brug et CFexpress-kort.

[Apple ProRes]-video med anden opløsning end FHD kan ikke optages på et SD-kort. Brug et CFexpress-kort.

For information om de kort, som kan anvendes ( character_reference SD-kort, som kan anvendes med dette kamera)

character_diamond [Optagefilformat (Video)]: [MP4]

YUV, bitværdi, billedkomprimering:

– [10bit] optagelseskvalitet: 4:2:0, 10-bit, Long GOP

– [8bit] optagelseskvalitet: 4:2:0, 8-bit, Long GOP

Lydformat: AAC (2kan)

(A) Optagelsesrammehastighed

(B) Bithastighed (Mbps)

[Systemfrekvens]: [59.94Hz (NTSC)]
[Optage kval.]	[Billedområde til video]		Opløsning	Billedformat	(A)	(B)	(C)
[Optage kval.]	FULL	APS-C	Opløsning	Billedformat	(A)	(B)	(C)
[4K/10bit/100M/60p]			3840×2160	16:9	59,94p	100	HEVC
[4K/10bit/72M/30p]			3840×2160	16:9	29,97p	72	HEVC
[4K/8bit/100M/30p]			3840×2160	16:9	29,97p	100	AVC
[4K/10bit/72M/24p]			3840×2160	16:9	23,98p	72	HEVC
[4K/8bit/100M/24p]			3840×2160	16:9	23,98p	100	AVC
[FHD/8bit/28M/60p]			1920×1080	16:9	59,94p	28	AVC
[FHD/8bit/20M/30p]			1920×1080	16:9	29,97p	20	AVC
[FHD/8bit/24M/24p]			1920×1080	16:9	23,98p	24	AVC

[Systemfrekvens]: [50.00Hz (PAL)]
[Optage kval.]	[Billedområde til video]		Opløsning	Billedformat	(A)	(B)	(C)
[Optage kval.]	FULL	APS-C	Opløsning	Billedformat	(A)	(B)	(C)
[4K/10bit/100M/50p]			3840×2160	16:9	50,00p	100	HEVC
[4K/10bit/72M/25p]			3840×2160	16:9	25,00p	72	HEVC
[4K/8bit/100M/25p]			3840×2160	16:9	25,00p	100	AVC
[FHD/8bit/28M/50p]			1920×1080	16:9	50,00p	28	AVC
[FHD/8bit/20M/25p]			1920×1080	16:9	25,00p	20	AVC

character_diamond [Optagefilformat (Video)]: [MOV]

YUV, bitværdi, billedkomprimering:

– [422/10-I] optagelseskvalitet: 4:2:2, 10-bit, ALL-Intra

– [422/10-L] optagelseskvalitet: 4:2:2, 10-bit, Long GOP

– [420/10-L] optagelseskvalitet: 4:2:0, 10-bit, Long GOP

– [420/8-L] optagelseskvalitet: 4:2:0, 8-bit, Long GOP

Lydformat: LPCM (2kan/4kan)

4-kanals lyd optages når XLR-mikrofonadapteren (DMW-XLR2: ekstraudstyr) er tilsluttet ved at indstille [4-kanals lydoptagelse] til [XLR] eller [XLR+CAMERA].

icon_mode-video : Kan kun indstille eller optage i [] tilstand.

(A) Optagelsesrammehastighed

(B) Bithastighed (Mbps)

[Systemfrekvens]: [59.94Hz (NTSC)]
[Optage kval.]	[Billedområde til video]		Opløsning	Billedformat	(A)	(B)	(C)
[Optage kval.]	FULL	APS-C	Opløsning	Billedformat	(A)	(B)	(C)
[6K/30p/420/10-L]			5952×3968	3:2	29,97p	200	HEVC
[6K/24p/420/10-L]			5952×3968	3:2	23,98p	200	HEVC
[6K/30p/420/10-L]			5952×3136	17:9	29,97p	200	HEVC
[6K/24p/420/10-L]			5952×3136	17:9	23,98p	200	HEVC
[6K/60p/420/10-L]			5952×2512	2,4:1	59,94p	300	HEVC
[6K/48p/420/10-L]			5952×2512	2,4:1	47,95p	300	HEVC
[6K/30p/420/10-L]			5952×2512	2,4:1	29,97p	200	HEVC
[6K/24p/420/10-L]			5952×2512	2,4:1	23,98p	200	HEVC
[5.9K/30p/420/10-L]			5888×3312	16:9	29,97p	200	HEVC
[5.9K/24p/420/10-L]			5888×3312	16:9	23,98p	200	HEVC
[3.3K/48p/422/10-I(H)]			3328×2496	4:3	47,95p	800	AVC
[3.3K/48p/422/10-I(L)]			3328×2496	4:3	47,95p	600	AVC
[3.3K/48p/422/10-L]			3328×2496	4:3	47,95p	200	AVC
[3.3K/48p/420/10-L]			3328×2496	4:3	47,95p	200	HEVC
[3.3K/30p/422/10-I]			3328×2496	4:3	29,97p	400	AVC
[3.3K/30p/422/10-L]			3328×2496	4:3	29,97p	150	AVC
[3.3K/30p/420/10-L]			3328×2496	4:3	29,97p	150	HEVC
[3.3K/24p/422/10-I]			3328×2496	4:3	23,98p	400	AVC
[3.3K/24p/422/10-L]			3328×2496	4:3	23,98p	150	AVC
[3.3K/24p/420/10-L]			3328×2496	4:3	23,98p	150	HEVC
[C4K/60p/422/10-I(H)]			4096×2160	17:9	59,94p	800	AVC
[C4K/60p/422/10-I(L)]			4096×2160	17:9	59,94p	600	AVC
[C4K/60p/422/10-L]			4096×2160	17:9	59,94p	200	AVC
[C4K/60p/420/10-L]			4096×2160	17:9	59,94p	200	HEVC
[C4K/60p/420/8-L]			4096×2160	17:9	59,94p	150	AVC
[C4K/48p/422/10-I(H)]			4096×2160	17:9	47,95p	800	AVC
[C4K/48p/422/10-I(L)]			4096×2160	17:9	47,95p	600	AVC
[C4K/48p/422/10-L]			4096×2160	17:9	47,95p	200	AVC
[C4K/48p/420/10-L]			4096×2160	17:9	47,95p	200	HEVC
[C4K/30p/422/10-I]			4096×2160	17:9	29,97p	400	AVC
[C4K/30p/422/10-L]			4096×2160	17:9	29,97p	150	AVC
[C4K/30p/420/10-L]			4096×2160	17:9	29,97p	150	HEVC
[C4K/30p/420/8-L]			4096×2160	17:9	29,97p	100	AVC
[C4K/24p/422/10-I]			4096×2160	17:9	23,98p	400	AVC
[C4K/24p/422/10-L]			4096×2160	17:9	23,98p	150	AVC
[C4K/24p/420/10-L]			4096×2160	17:9	23,98p	150	HEVC
[C4K/24p/420/8-L]			4096×2160	17:9	23,98p	100	AVC
[Cs4K/60p/422/10-I(H)]			4096×1728	2,4:1	59,94p	800	AVC
[Cs4K/60p/422/10-I(L)]			4096×1728	2,4:1	59,94p	600	AVC
[Cs4K/60p/422/10-L]			4096×1728	2,4:1	59,94p	200	AVC
[Cs4K/60p/420/10-L]			4096×1728	2,4:1	59,94p	200	HEVC
[Cs4K/60p/420/8-L]			4096×1728	2,4:1	59,94p	150	AVC
[Cs4K/48p/422/10-I(H)]			4096×1728	2,4:1	47,95p	800	AVC
[Cs4K/48p/422/10-I(L)]			4096×1728	2,4:1	47,95p	600	AVC
[Cs4K/48p/422/10-L]			4096×1728	2,4:1	47,95p	200	AVC
[Cs4K/48p/420/10-L]			4096×1728	2,4:1	47,95p	200	HEVC
[Cs4K/30p/422/10-I]			4096×1728	2,4:1	29,97p	400	AVC
[Cs4K/30p/422/10-L]			4096×1728	2,4:1	29,97p	150	AVC
[Cs4K/30p/420/10-L]			4096×1728	2,4:1	29,97p	150	HEVC
[Cs4K/30p/420/8-L]			4096×1728	2,4:1	29,97p	100	AVC
[Cs4K/24p/422/10-I]			4096×1728	2,4:1	23,98p	400	AVC
[Cs4K/24p/422/10-L]			4096×1728	2,4:1	23,98p	150	AVC
[Cs4K/24p/420/10-L]			4096×1728	2,4:1	23,98p	150	HEVC
[Cs4K/24p/420/8-L]			4096×1728	2,4:1	23,98p	100	AVC
[4K/60p/422/10-I(H)]			3840×2160	16:9	59,94p	800	AVC
[4K/60p/422/10-I(L)]			3840×2160	16:9	59,94p	600	AVC
[4K/60p/422/10-L]			3840×2160	16:9	59,94p	200	AVC
[4K/60p/420/10-L]			3840×2160	16:9	59,94p	200	HEVC
[4K/60p/420/8-L]			3840×2160	16:9	59,94p	150	AVC
[4K/48p/422/10-I(H)]			3840×2160	16:9	47,95p	800	AVC
[4K/48p/422/10-I(L)]			3840×2160	16:9	47,95p	600	AVC
[4K/48p/422/10-L]			3840×2160	16:9	47,95p	200	AVC
[4K/48p/420/10-L]			3840×2160	16:9	47,95p	200	HEVC
[4K/30p/422/10-I]			3840×2160	16:9	29,97p	400	AVC
[4K/30p/422/10-L]			3840×2160	16:9	29,97p	150	AVC
[4K/30p/420/10-L]			3840×2160	16:9	29,97p	150	HEVC
[4K/30p/420/8-L]			3840×2160	16:9	29,97p	100	AVC
[4K/24p/422/10-I]			3840×2160	16:9	23,98p	400	AVC
[4K/24p/422/10-L]			3840×2160	16:9	23,98p	150	AVC
[4K/24p/420/10-L]			3840×2160	16:9	23,98p	150	HEVC
[4K/24p/420/8-L]			3840×2160	16:9	23,98p	100	AVC
[FHD/120p/422/10-I]			1920×1080	16:9	119,88p	400	AVC
[FHD/120p/422/10-L]			1920×1080	16:9	119,88p	150	AVC
[FHD/120p/420/10-L]			1920×1080	16:9	119,88p	150	HEVC
[FHD/60p/422/10-I]			1920×1080	16:9	59,94p	200	AVC
[FHD/60p/422/10-L]			1920×1080	16:9	59,94p	100	AVC
[FHD/60p/420/10-L]			1920×1080	16:9	59,94p	100	HEVC
[FHD/60p/420/8-L]			1920×1080	16:9	59,94p	50	AVC
[FHD/48p/422/10-I]			1920×1080	16:9	47,95p	200	AVC
[FHD/48p/422/10-L]			1920×1080	16:9	47,95p	100	AVC
[FHD/48p/420/10-L]			1920×1080	16:9	47,95p	100	HEVC
[FHD/30p/422/10-I]			1920×1080	16:9	29,97p	200	AVC
[FHD/30p/422/10-L]			1920×1080	16:9	29,97p	100	AVC
[FHD/30p/420/10-L]			1920×1080	16:9	29,97p	100	HEVC
[FHD/30p/420/8-L]			1920×1080	16:9	29,97p	25	AVC
[FHD/24p/422/10-I]			1920×1080	16:9	23,98p	200	AVC
[FHD/24p/422/10-L]			1920×1080	16:9	23,98p	100	AVC
[FHD/24p/420/10-L]			1920×1080	16:9	23,98p	100	HEVC
[FHD/24p/420/8-L]			1920×1080	16:9	23,98p	25	AVC

[Systemfrekvens]: [50.00Hz (PAL)]
[Optage kval.]	[Billedområde til video]		Opløsning	Billedformat	(A)	(B)	(C)
[Optage kval.]	FULL	APS-C	Opløsning	Billedformat	(A)	(B)	(C)
[6K/25p/420/10-L]			5952×3968	3:2	25,00p	200	HEVC
[6K/25p/420/10-L]			5952×3136	17:9	25,00p	200	HEVC
[6K/50p/420/10-L]			5952×2512	2,4:1	50,00p	300	HEVC
[6K/25p/420/10-L]			5952×2512	2,4:1	25,00p	200	HEVC
[5.9K/25p/420/10-L]			5888×3312	16:9	25,00p	200	HEVC
[3.3K/50p/422/10-I(H)]			3328×2496	4:3	50,00p	800	AVC
[3.3K/50p/422/10-I(L)]			3328×2496	4:3	50,00p	600	AVC
[3.3K/50p/422/10-L]			3328×2496	4:3	50,00p	200	AVC
[3.3K/50p/420/10-L]			3328×2496	4:3	50,00p	200	HEVC
[3.3K/25p/422/10-I]			3328×2496	4:3	25,00p	400	AVC
[3.3K/25p/422/10-L]			3328×2496	4:3	25,00p	150	AVC
[3.3K/25p/420/10-L]			3328×2496	4:3	25,00p	150	HEVC
[C4K/50p/422/10-I(H)]			4096×2160	17:9	50,00p	800	AVC
[C4K/50p/422/10-I(L)]			4096×2160	17:9	50,00p	600	AVC
[C4K/50p/422/10-L]			4096×2160	17:9	50,00p	200	AVC
[C4K/50p/420/10-L]			4096×2160	17:9	50,00p	200	HEVC
[C4K/50p/420/8-L]			4096×2160	17:9	50,00p	150	AVC
[C4K/25p/422/10-I]			4096×2160	17:9	25,00p	400	AVC
[C4K/25p/422/10-L]			4096×2160	17:9	25,00p	150	AVC
[C4K/25p/420/10-L]			4096×2160	17:9	25,00p	150	HEVC
[C4K/25p/420/8-L]			4096×2160	17:9	25,00p	100	AVC
[Cs4K/50p/422/10-I(H)]			4096×1728	2,4:1	50,00p	800	AVC
[Cs4K/50p/422/10-I(L)]			4096×1728	2,4:1	50,00p	600	AVC
[Cs4K/50p/422/10-L]			4096×1728	2,4:1	50,00p	200	AVC
[Cs4K/50p/420/10-L]			4096×1728	2,4:1	50,00p	200	HEVC
[Cs4K/50p/420/8-L]			4096×1728	2,4:1	50,00p	150	AVC
[Cs4K/25p/422/10-I]			4096×1728	2,4:1	25,00p	400	AVC
[Cs4K/25p/422/10-L]			4096×1728	2,4:1	25,00p	150	AVC
[Cs4K/25p/420/10-L]			4096×1728	2,4:1	25,00p	150	HEVC
[Cs4K/25p/420/8-L]			4096×1728	2,4:1	25,00p	100	AVC
[4K/50p/422/10-I(H)]			3840×2160	16:9	50,00p	800	AVC
[4K/50p/422/10-I(L)]			3840×2160	16:9	50,00p	600	AVC
[4K/50p/422/10-L]			3840×2160	16:9	50,00p	200	AVC
[4K/50p/420/10-L]			3840×2160	16:9	50,00p	200	HEVC
[4K/50p/420/8-L]			3840×2160	16:9	50,00p	150	AVC
[4K/25p/422/10-I]			3840×2160	16:9	25,00p	400	AVC
[4K/25p/422/10-L]			3840×2160	16:9	25,00p	150	AVC
[4K/25p/420/10-L]			3840×2160	16:9	25,00p	150	HEVC
[4K/25p/420/8-L]			3840×2160	16:9	25,00p	100	AVC
[FHD/100p/422/10-I]			1920×1080	16:9	100,00p	400	AVC
[FHD/100p/422/10-L]			1920×1080	16:9	100,00p	150	AVC
[FHD/100p/420/10-L]			1920×1080	16:9	100,00p	150	HEVC
[FHD/50p/422/10-I]			1920×1080	16:9	50,00p	200	AVC
[FHD/50p/422/10-L]			1920×1080	16:9	50,00p	100	AVC
[FHD/50p/420/10-L]			1920×1080	16:9	50,00p	100	HEVC
[FHD/50p/420/8-L]			1920×1080	16:9	50,00p	50	AVC
[FHD/25p/422/10-I]			1920×1080	16:9	25,00p	200	AVC
[FHD/25p/422/10-L]			1920×1080	16:9	25,00p	100	AVC
[FHD/25p/420/10-L]			1920×1080	16:9	25,00p	100	HEVC
[FHD/25p/420/8-L]			1920×1080	16:9	25,00p	25	AVC

[Systemfrekvens]: [24.00Hz (CINEMA)]
[Optage kval.]	[Billedområde til video]		Opløsning	Billedformat	(A)	(B)	(C)
[Optage kval.]	FULL	APS-C	Opløsning	Billedformat	(A)	(B)	(C)
[6K/24p/420/10-L]			5952×3968	3:2	24,00p	200	HEVC
[6K/24p/420/10-L]			5952×3136	17:9	24,00p	200	HEVC
[6K/48p/420/10-L]			5952×2512	2,4:1	48,00p	300	HEVC
[6K/24p/420/10-L]			5952×2512	2,4:1	24,00p	200	HEVC
[5.9K/24p/420/10-L]			5888×3312	16:9	24,00p	200	HEVC
[3.3K/48p/422/10-I(H)]			3328×2496	4:3	48,00p	800	AVC
[3.3K/48p/422/10-I(L)]			3328×2496	4:3	48,00p	600	AVC
[3.3K/48p/422/10-L]			3328×2496	4:3	48,00p	200	AVC
[3.3K/48p/420/10-L]			3328×2496	4:3	48,00p	200	HEVC
[3.3K/24p/422/10-I]			3328×2496	4:3	24,00p	400	AVC
[3.3K/24p/422/10-L]			3328×2496	4:3	24,00p	150	AVC
[3.3K/24p/420/10-L]			3328×2496	4:3	24,00p	150	HEVC
[C4K/48p/422/10-I(H)]			4096×2160	17:9	48,00p	800	AVC
[C4K/48p/422/10-I(L)]			4096×2160	17:9	48,00p	600	AVC
[C4K/48p/422/10-L]			4096×2160	17:9	48,00p	200	AVC
[C4K/48p/420/10-L]			4096×2160	17:9	48,00p	200	HEVC
[C4K/24p/422/10-I]			4096×2160	17:9	24,00p	400	AVC
[C4K/24p/422/10-L]			4096×2160	17:9	24,00p	150	AVC
[C4K/24p/420/10-L]			4096×2160	17:9	24,00p	150	HEVC
[C4K/24p/420/8-L]			4096×2160	17:9	24,00p	100	AVC
[Cs4K/48p/422/10-I(H)]			4096×1728	2,4:1	48,00p	800	AVC
[Cs4K/48p/422/10-I(L)]			4096×1728	2,4:1	48,00p	600	AVC
[Cs4K/48p/422/10-L]			4096×1728	2,4:1	48,00p	200	AVC
[Cs4K/48p/420/10-L]			4096×1728	2,4:1	48,00p	200	HEVC
[Cs4K/24p/422/10-I]			4096×1728	2,4:1	24,00p	400	AVC
[Cs4K/24p/422/10-L]			4096×1728	2,4:1	24,00p	150	AVC
[Cs4K/24p/420/10-L]			4096×1728	2,4:1	24,00p	150	HEVC
[Cs4K/24p/420/8-L]			4096×1728	2,4:1	24,00p	100	AVC
[4K/48p/422/10-I(H)]			3840×2160	16:9	48,00p	800	AVC
[4K/48p/422/10-I(L)]			3840×2160	16:9	48,00p	600	AVC
[4K/48p/422/10-L]			3840×2160	16:9	48,00p	200	AVC
[4K/48p/420/10-L]			3840×2160	16:9	48,00p	200	HEVC
[4K/24p/422/10-I]			3840×2160	16:9	24,00p	400	AVC
[4K/24p/422/10-L]			3840×2160	16:9	24,00p	150	AVC
[4K/24p/420/10-L]			3840×2160	16:9	24,00p	150	HEVC
[4K/24p/420/8-L]			3840×2160	16:9	24,00p	100	AVC
[FHD/48p/422/10-I]			1920×1080	16:9	48,00p	200	AVC
[FHD/48p/422/10-L]			1920×1080	16:9	48,00p	100	AVC
[FHD/48p/420/10-L]			1920×1080	16:9	48,00p	100	HEVC
[FHD/24p/422/10-I]			1920×1080	16:9	24,00p	200	AVC
[FHD/24p/422/10-L]			1920×1080	16:9	24,00p	100	AVC
[FHD/24p/420/10-L]			1920×1080	16:9	24,00p	100	HEVC
[FHD/24p/420/8-L]			1920×1080	16:9	24,00p	25	AVC

[Optage kval.] [(H)] angiver en bithastighed på 800 Mbps, og [(L)] angiver en bithastighed på 600 Mbps.

[(H)]-videoer kan ikke optages på SD-kort.

character_diamond [Optagefilformat (Video)]: [Apple ProRes]

Lydformat: LPCM (2kan/4kan)

4-kanals lyd optages når XLR-mikrofonadapteren (DMW-XLR2: ekstraudstyr) er tilsluttet ved at indstille [4-kanals lydoptagelse] til [XLR] eller [XLR+CAMERA].

icon_mode-video : Kan kun indstille eller optage i [] tilstand.

(A) Optagelsesrammehastighed

(B) Bithastighed

(C) Videokomprimeringsformat (RAW HQ: Apple ProRes RAW HQ, RAW: Apple ProRes RAW, 422 HQ: Apple ProRes 422 HQ, 422: Apple ProRes 422)

[Systemfrekvens]: [59.94Hz (NTSC)]
[Optage kval.]	[Billedområde til video]		Opløsning	Billedformat	(A)	(B)	(C)
[Optage kval.]	FULL	APS-C	Opløsning	Billedformat	(A)	(B)	(C)
[5.8K/30p/RAW HQ]			5776×3056	17:9	29,97p	4,2 Gbps	RAW HQ
[5.8K/30p/RAW]			5776×3056	17:9	29,97p	2,8 Gbps	RAW
[5.8K/30p/422 HQ]			5776×3056	17:9	29,97p	1,9 Gbps	422 HQ
[5.8K/30p/422]			5776×3056	17:9	29,97p	1,3 Gbps	422
[5.8K/24p/RAW HQ]			5776×3056	17:9	23,98p	3,4 Gbps	RAW HQ
[5.8K/24p/RAW]			5776×3056	17:9	23,98p	2,3 Gbps	RAW
[5.8K/24p/422 HQ]			5776×3056	17:9	23,98p	1,6 Gbps	422 HQ
[5.8K/24p/422]			5776×3056	17:9	23,98p	1,0 Gbps	422
[3.3K/30p/422 HQ]			3328×2496	4:3	29,97p	913 Mbps	422 HQ
[3.3K/30p/422]			3328×2496	4:3	29,97p	609 Mbps	422
[3.3K/24p/422 HQ]			3328×2496	4:3	23,98p	730 Mbps	422 HQ
[3.3K/24p/422]			3328×2496	4:3	23,98p	487 Mbps	422
[C4K/60p/RAW HQ]			4096×2160	17:9	59,94p	4,2 Gbps	RAW HQ
[C4K/60p/RAW]			4096×2160	17:9	59,94p	2,8 Gbps	RAW
[C4K/60p/422 HQ]			4096×2160	17:9	59,94p	1,9 Gbps	422 HQ
[C4K/60p/422]			4096×2160	17:9	59,94p	1,3 Gbps	422
[C4K/30p/RAW HQ]			4096×2160	17:9	29,97p	2,1 Gbps	RAW HQ
[C4K/30p/RAW]			4096×2160	17:9	29,97p	1,4 Gbps	RAW
[C4K/30p/422 HQ]			4096×2160	17:9	29,97p	972 Mbps	422 HQ
[C4K/30p/422]			4096×2160	17:9	29,97p	648 Mbps	422
[C4K/24p/RAW HQ]			4096×2160	17:9	23,98p	1,7 Gbps	RAW HQ
[C4K/24p/RAW]			4096×2160	17:9	23,98p	1,1 Gbps	RAW
[C4K/24p/422 HQ]			4096×2160	17:9	23,98p	778 Mbps	422 HQ
[C4K/24p/422]			4096×2160	17:9	23,98p	519 Mbps	422
[Cs4K/60p/422 HQ]			4096×1728	2,4:1	59,94p	1,6 Gbps	422 HQ
[Cs4K/60p/422]			4096×1728	2,4:1	59,94p	1,0 Gbps	422
[Cs4K/30p/422 HQ]			4096×1728	2,4:1	29,97p	778 Mbps	422 HQ
[Cs4K/30p/422]			4096×1728	2,4:1	29,97p	519 Mbps	422
[Cs4K/24p/422 HQ]			4096×1728	2,4:1	23,98p	622 Mbps	422 HQ
[Cs4K/24p/422]			4096×1728	2,4:1	23,98p	415 Mbps	422
[4K/60p/422 HQ]			3840×2160	16:9	59,94p	1,8 Gbps	422 HQ
[4K/60p/422]			3840×2160	16:9	59,94p	1,2 Gbps	422
[4K/30p/422 HQ]			3840×2160	16:9	29,97p	911 Mbps	422 HQ
[4K/30p/422]			3840×2160	16:9	29,97p	608 Mbps	422
[4K/24p/422 HQ]			3840×2160	16:9	23,98p	729 Mbps	422 HQ
[4K/24p/422]			3840×2160	16:9	23,98p	486 Mbps	422
[FHD/60p/422 HQ]			1920×1080	16:9	59,94p	454 Mbps	422 HQ
[FHD/60p/422]			1920×1080	16:9	59,94p	302 Mbps	422
[FHD/30p/422 HQ]			1920×1080	16:9	29,97p	227 Mbps	422 HQ
[FHD/30p/422]			1920×1080	16:9	29,97p	151 Mbps	422
[FHD/24p/422 HQ]			1920×1080	16:9	23,98p	181 Mbps	422 HQ
[FHD/24p/422]			1920×1080	16:9	23,98p	121 Mbps	422

[Systemfrekvens]: [50.00Hz (PAL)]
[Optage kval.]	[Billedområde til video]		Opløsning	Billedformat	(A)	(B)	(C)
[Optage kval.]	FULL	APS-C	Opløsning	Billedformat	(A)	(B)	(C)
[5.8K/25p/RAW HQ]			5776×3056	17:9	25,00p	3,5 Gbps	RAW HQ
[5.8K/25p/RAW]			5776×3056	17:9	25,00p	2,4 Gbps	RAW
[5.8K/25p/422 HQ]			5776×3056	17:9	25,00p	1,6 Gbps	422 HQ
[5.8K/25p/422]			5776×3056	17:9	25,00p	1,1 Gbps	422
[3.3K/50p/422 HQ]			3328×2496	4:3	50,00p	1,5 Gbps	422 HQ
[3.3K/50p/422]			3328×2496	4:3	50,00p	1,0 Gbps	422
[3.3K/25p/422 HQ]			3328×2496	4:3	25,00p	761 Mbps	422 HQ
[3.3K/25p/422]			3328×2496	4:3	25,00p	508 Mbps	422
[C4K/50p/RAW HQ]			4096×2160	17:9	50,00p	3,5 Gbps	RAW HQ
[C4K/50p/RAW]			4096×2160	17:9	50,00p	2,4 Gbps	RAW
[C4K/50p/422 HQ]			4096×2160	17:9	50,00p	1,6 Gbps	422 HQ
[C4K/50p/422]			4096×2160	17:9	50,00p	1,1 Gbps	422
[C4K/25p/RAW HQ]			4096×2160	17:9	25,00p	1,8 Gbps	RAW HQ
[C4K/25p/RAW]			4096×2160	17:9	25,00p	1,2 Gbps	RAW
[C4K/25p/422 HQ]			4096×2160	17:9	25,00p	811 Mbps	422 HQ
[C4K/25p/422]			4096×2160	17:9	25,00p	541 Mbps	422
[Cs4K/50p/422 HQ]			4096×1728	2,4:1	50,00p	1,3 Gbps	422 HQ
[Cs4K/50p/422]			4096×1728	2,4:1	50,00p	865 Mbps	422
[Cs4K/25p/422 HQ]			4096×1728	2,4:1	25,00p	649 Mbps	422 HQ
[Cs4K/25p/422]			4096×1728	2,4:1	25,00p	433 Mbps	422
[4K/50p/422 HQ]			3840×2160	16:9	50,00p	1,5 Gbps	422 HQ
[4K/50p/422]			3840×2160	16:9	50,00p	1,0 Gbps	422
[4K/25p/422 HQ]			3840×2160	16:9	25,00p	760 Mbps	422 HQ
[4K/25p/422]			3840×2160	16:9	25,00p	507 Mbps	422
[FHD/50p/422 HQ]			1920×1080	16:9	50,00p	378 Mbps	422 HQ
[FHD/50p/422]			1920×1080	16:9	50,00p	252 Mbps	422
[FHD/25p/422 HQ]			1920×1080	16:9	25,00p	189 Mbps	422 HQ
[FHD/25p/422]			1920×1080	16:9	25,00p	126 Mbps	422

[Systemfrekvens]: [24.00Hz (CINEMA)]
[Optage kval.]	[Billedområde til video]		Opløsning	Billedformat	(A)	(B)	(C)
[Optage kval.]	FULL	APS-C	Opløsning	Billedformat	(A)	(B)	(C)
[5.8K/24p/RAW HQ]			5776×3056	17:9	24,00p	3,4 Gbps	RAW HQ
[5.8K/24p/RAW]			5776×3056	17:9	24,00p	2,3 Gbps	RAW
[5.8K/24p/422 HQ]			5776×3056	17:9	24,00p	1,6 Gbps	422 HQ
[5.8K/24p/422]			5776×3056	17:9	24,00p	1,0 Gbps	422
[3.3K/24p/422 HQ]			3328×2496	4:3	24,00p	731 Mbps	422 HQ
[3.3K/24p/422]			3328×2496	4:3	24,00p	487 Mbps	422
[C4K/24p/RAW HQ]			4096×2160	17:9	24,00p	1,7 Gbps	RAW HQ
[C4K/24p/RAW]			4096×2160	17:9	24,00p	1,1 Gbps	RAW
[C4K/24p/422 HQ]			4096×2160	17:9	24,00p	779 Mbps	422 HQ
[C4K/24p/422]			4096×2160	17:9	24,00p	519 Mbps	422
[Cs4K/24p/422 HQ]			4096×1728	2,4:1	24,00p	623 Mbps	422 HQ
[Cs4K/24p/422]			4096×1728	2,4:1	24,00p	415 Mbps	422
[4K/24p/422 HQ]			3840×2160	16:9	24,00p	730 Mbps	422 HQ
[4K/24p/422]			3840×2160	16:9	24,00p	487 Mbps	422
[FHD/24p/422 HQ]			1920×1080	16:9	24,00p	182 Mbps	422 HQ
[FHD/24p/422]			1920×1080	16:9	24,00p	121 Mbps	422

I dette dokument angives videoer som følger i henhold til deres opløsning:

– 6K (5952×3968) video: 6K video (3:2)

– 6K (5952×3136) video: 6K video (17:9)

– 6K (5952×2512) video: 6K video (2,4:1)

– 5,9K (5888×3312) video: 5,9K video

– 5,8K (5776×3056) video: 5,8K video

– 3,3K (3328×2496) video: 3,3K video

– C4K (4096×2160) video: C4K video

– Cs4K (4096×1728) video: Cs4K video

– 4K (3840×2160) video: 4K video

– Full højdefinition (1920×1080) video: FHD video

icon_info_s

Da kameraet anvender VBR-optagelsesmetoden, ændres bithastigheden automatisk afhængigt af det motiv, der skal optages. Som et resultat heraf forkortes videooptagelsestiden, når et motiv i hurtig bevægelse optages.

Videoer i ALL-Intra og 4:2:2 10-bitformater, og videoer med [Optagefilformat (Video)] på [Apple ProRes], er beregnet til redigering på en PC, som anvendes til videoproduktion.

icon_related-info_s

Du kan registrere en kombination af [Systemfrekvens], [Optagefilformat (Video)], [Billedområde til video] og [Optage kval.] til Min liste. ( character_reference [føj til liste])

character_diamond [Filtrering]

Når [Optagefilformat (Video)] er indstillet på [MOV] eller [Apple ProRes], kan du angive elementer såsom billedfrekvens, antal pixel (opløsning) og komprimeringsformat (YUV, bitværdi, billedkomprimering) og kun få vist den optagelseskvalitet, som opfylder disse betingelser.

Tryk på [DISP.] på indstillingsskærmen [Optage kval.].

gui_favorite-registration-video1_ntsc_dan

Tryk på for at vælge et element, der skal indstilles, og tryk derefter på eller .

Indstillinger: [Billedfrekvens]/[Opløsning]/[Codec]/[Hybrid Log Gamma]/[Proxyoptagelse]

Tryk på for at vælge filtreringsbetingelser, og tryk derefter på eller .

Tryk på [DISP.] for at bekræfte indstillingen.

Du vender tilbage til indstillingsskærmen [Optage kval.].

Rydning af filtreringsbetingelser

Vælg [ANY] under trin 3.

Filtreringsbetingelserne ryddes også, når du gør følgende:

– Skift [Optagefilformat (Video)]

– Skift [Systemfrekvens]

– Vælg en optagelseskvalitet fra [Optage kval. (Min liste)]

icon_info_s

Hvis du ændrer optagelseskvalitet vha. et filter, lagres de aktuelle filtreringsbetingelser.

character_diamond [føj til liste]

Vælg en optagelseskvalitet, og registrer den på Min liste. Den optagelseskvalitet, du registrerer, kan indstilles i [Optage kval. (Min liste)].

Tryk på [Q] på indstillingsskærmen [Optage kval.].

Følgende indstillinger registreres også samtidigt:

– [Systemfrekvens]

– [Optagefilformat (Video)]

– [Billedområde til video]

gui_favorite-registration-video1_ntsc_dan

Indstilling eller sletning af Min liste

Vælg [Optage kval. (Min liste)].

button_menu-set [ icon_movie ] [ icon_video-image-format ] [Optage kval. (Min liste)]

Tryk på for at vælge et element, der skal indstilles, og tryk derefter på eller .

Du kan ikke vælge indstillingselementer, som har forskellige systemfrekvenser.

For at slette noget på Min liste skal du markere elementet og trykke på [Q].

Indstillinger fra kontrolpanelet

Nu kan du få vist Min liste over optagelseskvaliteter fra kontrolpanelet i tilstanden [ icon_mode-video ]/[S&Q].

Rør elementet for optagelseskvalitet.

Hvis du allerede er registreret på My liste, vises indstillingsskærmen [Optage kval. (Min liste)].

Hvis du ikke er registreret endnu, vises indstillingsskærmen [Optage kval.].

[Optage kval. (Min liste)] og [Optage kval.] skifter skiftevis, hver gang du trykker på knappen [DISP.].

Næste gang indstillingsskærmen vises, vises den skærm, som sidst blev vist.

gui_video_control_panel1

icon_info_s

Du kan registrere op til 12 typer optagelseskvaliteter.
