- 14. Materials
- External Monitor Displays
- Playback Screen
Playback Screen


|
2021.12. 1 10:00 |
Recording date and time (Clock Set) |
|
|
[Rating] ([Rating]) |
|
|
Video playback (Playing Back Videos) |
|
|
[Segmented File Recording] ([Segmented File Recording]) |
|
|
[Protect] ([Protect]) |
|
|
[Location Logging] ([Location Logging]) |
|
|
Obtaining information |

|
|
Card slot (Inserting Cards (Optional)) |
|
100-0001 |
Folder/file number (Folder Structure Inside Card) |
|
1/999 |
Image number/Total number of images |
|
9 files |
Number of group images/Number of files (Group Images) |
|
XXmXXs |
Video recording time (Playing Back Videos) |
|
|
[Variable Frame Rate] ([Variable Frame Rate]) |
|
|
[Loop Recording (video)] ([Loop Recording (video)]) |
|
|
LUT View Assist ([V-Log View Assist]) |
|
|
[HLG View Assist] ([HLG View Assist]) |

|
|
Group images (Group Images) |
|
TC 00:00:00.00 |
Time code (Time Code) |
|
48kHz/16bit |
[XLR Mic Adaptor Setting] (XLR Microphone Adaptor (Optional)) |
|
MP4 MOV |
[Rec. File Format] ([Rec. File Format]) |
|
FHD 420/8-L |
[Rec Quality] ([Rec Quality]) |
|
59.94p 60/59.94p |
Frame rate ([Rec Quality]) / [Variable Frame Rate] ([Variable Frame Rate]) |
|
|
[Image Area of Video] ([Image Area of Video]) |
|
|
Wi-Fi/Bluetooth connection status (Checking operation when connected to a network) |

|
Recording information |

|
|
Battery indication (Battery indication) Power supply (Power supply) |
Detailed information display screen
Card slot (Inserting Cards (Optional))
Recording date and time (Clock Set)
Folder/file number (Folder Structure Inside Card)
Recording information (basic)
Recording information (advanced)

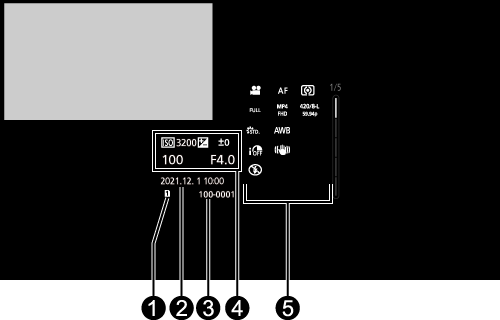

Detailed information display

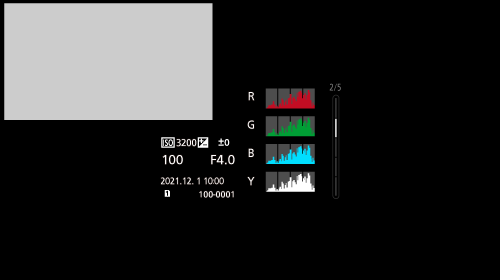

Histogram display

Photo Style display

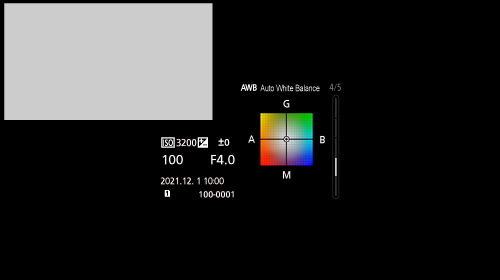

White balance display

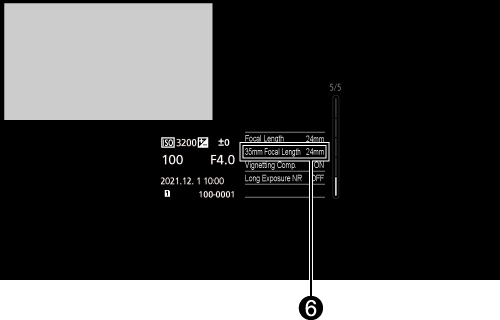

Lens information display

The focal length corresponding to the angle of view when using a full-frame lens with an image aspect ratio of 3:2.
