Dimensions

character_diamondMain unit

co_body_dimensions

(A) 129 mm (5.1 character_double-prime)

(B) 93 mm (3.7 character_double-prime)

(C) 267 mm (10.5 character_double-prime)

(D) 209 mm (8.3 character_double-prime)

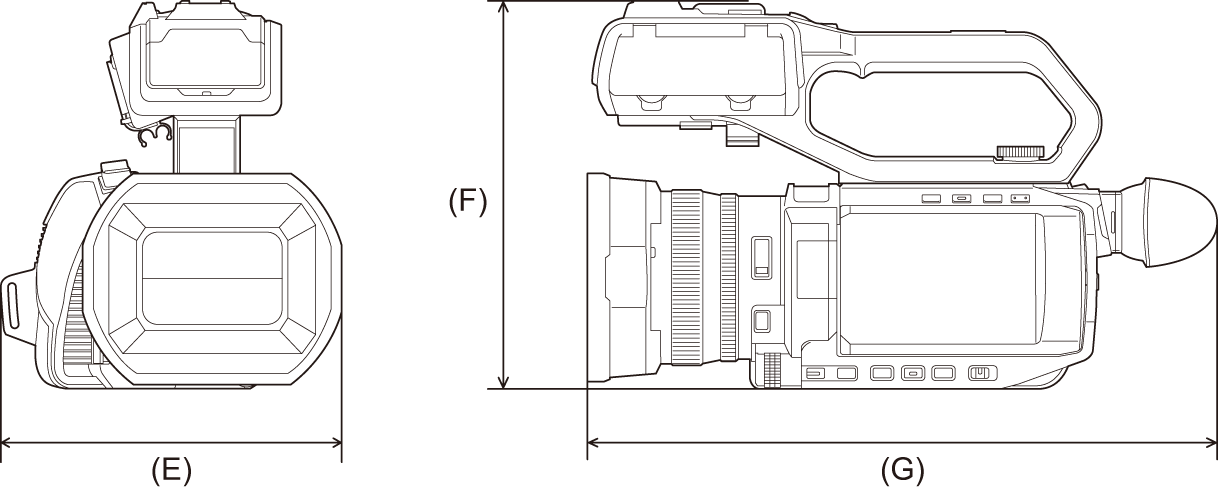

character_diamondWhen the handle unit is attached icon_model-x2100/icon_model-x1600

icon_model-x2100 uses the supplied accessory.

icon_model-x1600 uses the optional VW-HU1.

icon_model-x1200 does not support the handle unit.

co_body_dimensions_handleu_x1200

(E) 129 mm (5.1 character_double-prime)

(F) 159 mm (6.3 character_double-prime)

(G) 267 mm (10.5 character_double-prime)
