Focus

character_diamond Focusing (manual focus)

image_gui_focus

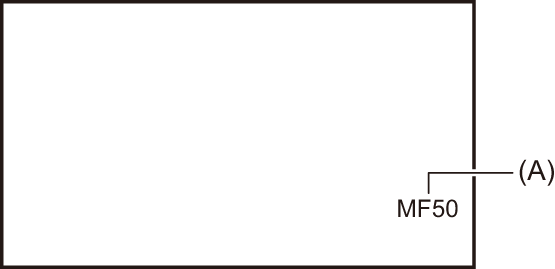

(A) Focus value

The focus mode ([AF]/[MF]) and the focus value are displayed.

The units for the focus value can be changed in the [ZOOM/FOCUS] menu. ( character_reference [ZOOM/FOCUS])

Switch to manual mode with the <AUTO/MANU> switch. (About auto mode/manual mode)

Press the <FOCUS A/M/> button to switch to manual focus mode.

[AF] and [MF] switch each time you press the button. The focal point goes to infinity after you press and hold the button, and then the manual focus mode is engaged.

[AF]:

Changes to the auto focus mode. The auto focus mode adjusts the focus automatically. You can also temporarily adjust the focus manually by turning the focus ring.

[MF]:

Changes to the manual focus mode. Control the focus ring manually to adjust the focus.

Turn the focus ring.

The focus value can be set between MF00 (focal distance character_asterisk : approximately 10 cm (3.93 character_double-prime )) and MF99 (focal distance: infinity). The higher the number the further away the object is to be focused on.

Focal distance is the distance to the subject to be focused on.

Since the auto focus control may not operate properly if there is a flicker, select a shutter speed that is appropriate to the light.

If you set the unit to auto focus mode at times other than 59.94i (50.00i) and 59.94p (50.00p), the time required for the focus control will be slightly longer than when in normal focus mode.

In auto mode, it is not possible to switch to the manual focus mode.

character_diamond Auto focusing

The following functions are available with the USER button assigned to [ONE PUSH AF], or the USER button icon, when manual focus mode is on.

One press AF function:

When you press the USER button, or touch the USER button icon, auto focus mode is turned on and automatic focusing occurs at high speed until the camera focuses.

The camera returns to manual focus mode when it focuses or after a certain time has elapsed.

Press AF function:

While the USER button is being pressed, or the USER button icon is being touched, the camera temporarily switches to auto focus mode.

The focus position is automatically adjusted to suit the subject in the center of the screen.

When [AREA MODE] is set to [FOCUS], [FOCUS/IRIS], or [FOCUS/Y GET] and the area function is used, the focus position is automatically adjusted to suit the subject that was touched. ( character_reference Area mode function)

The function cancels when you release the button and the focus position set while press AF was set is maintained.

For USER button settings ( character_reference Assigning functions to the USER buttons)
