Dimensiones

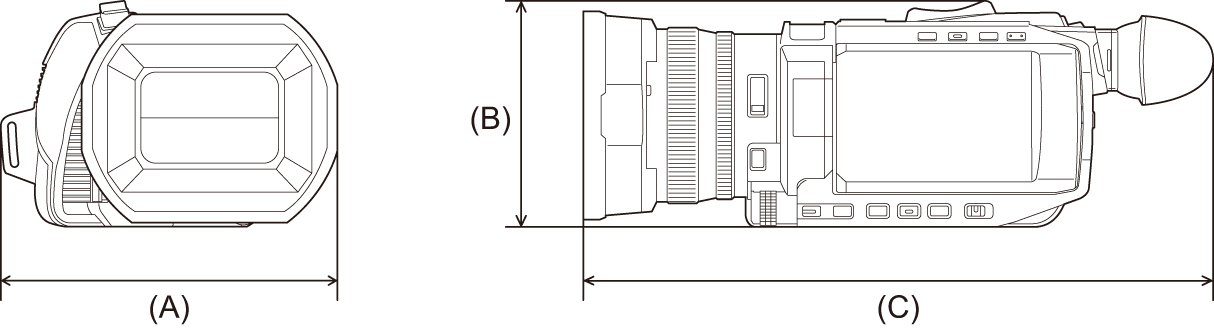

character_diamondUnidad principal

co_body_dimensions_ag

(A) 129 mm (5,1 character_double-prime)

(B) 93 mm (3,7 character_double-prime)

(C) 267 mm (10,5 character_double-prime)

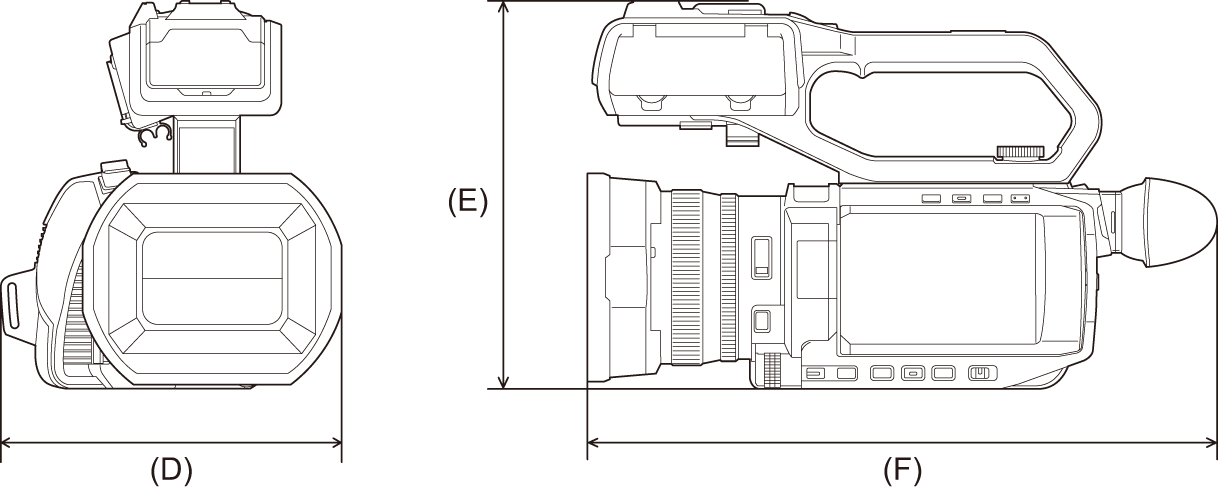

character_diamondCuando la unidad del asa está acoplada

co_body_dimensions_handleu

(D) 129 mm (5,1 character_double-prime)

(E) 159 mm (6,3 character_double-prime)

(F) 267 mm (10,5 character_double-prime)
