Attaching the Microphone Holder

Attach the supplied microphone holder to this unit.

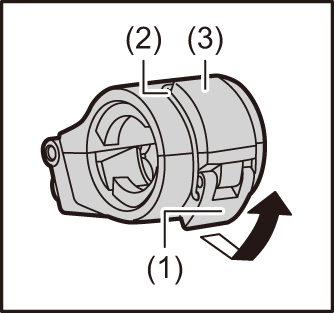

1. Open the microphone holder.

Open buckle (1), and detach fitting (2) from hook (3).

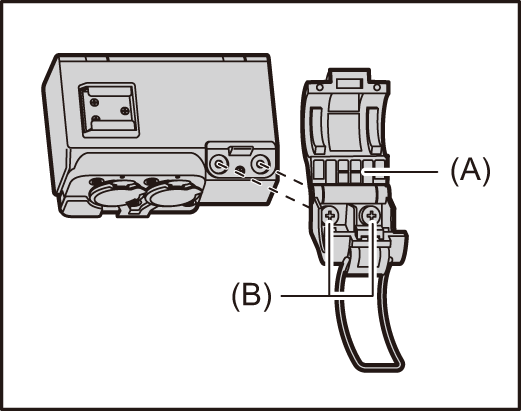

2. Attach the microphone holder to the microphone holder mounting section.

Firmly screw in the screws of the microphone holder into the screw holes on the microphone holder mounting section.

Attach using a commercially-available screwdriver.

(A) Microphone holder

(B) Screws

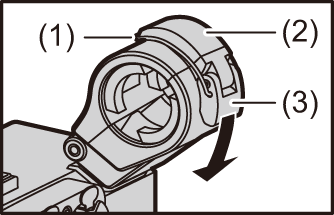

3. Close the microphone holder.

Attach the fitting (1) to the hook (2) and close the buckle (3) in the direction indicated by the arrow.
