[Synchro Scan(Photo)]

icon_mode-photoicon_mode-movie_gray

icon_mode-ia_grayicon_mode-p_grayicon_mode-a_grayicon_mode-sicon_mode-micon_mode-creative-motion_grayicon_mode-slow-and-quick-motion_gray

The flicker or horizontal stripes of the light source can be mitigated by making fine adjustments to the shutter speed.

The shutter speed set in Synchro Scan is saved separately from the shutter speed used for normal recording. In the Synchro Scan setting screen, you can call up the current shutter speed for normal recording and adjust it.


  1. Set the recording mode to [S] or [M].

character_bullet-largeSet the mode dial. (character_referenceSelecting the Recording Mode)

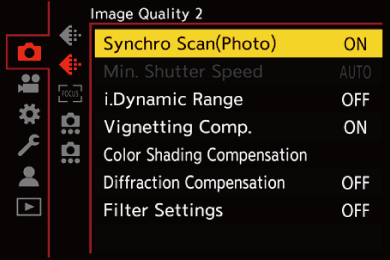

  1. Set [Synchro Scan(Photo)].

character_bullet-largebutton_menu-set character_arrow [icon_picture] character_arrow [icon_photo-quality] character_arrow [Synchro Scan(Photo)] character_arrow [ON]

gui_synchro-scan-photo_eng

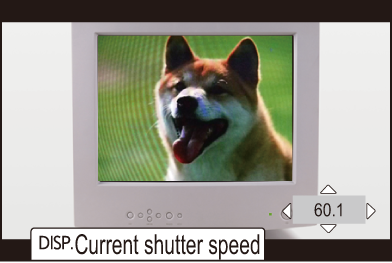

  1. Set the shutter speed.

character_bullet-largePress character_upcharacter_downcharacter_leftcharacter_right to select the numeric value and then press button_menu-set.


bullet02The shutter speed can be set in the range between 1/48.0 and 1/8192.0 of a second.

bullet02Press character_upcharacter_down to change the shutter speed in 1/4 TV intervals. Press character_leftcharacter_right to make fine adjustments.

bullet02You can call up the current shutter speed for normal recording by pressing [DISP.].

bullet02Make adjustments to the shutter speed while looking at the screen until there is no noticeable flickering or horizontal stripes.

gui_synchro-scan-photo2_eng


icon_info_s

bullet02There may be a difference between what you see on the recording screen and the actual results of recording. We recommend shooting some tests beforehand.
