Camera Setting Operations

When changing the camera settings, operate the camera using the following operation parts.

To prevent accidental operation, you can disable operation with the operation lock switch.

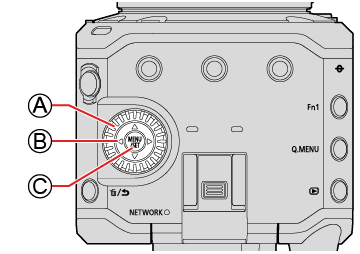

img_ch3_01

maru_alphabet_aControl dial (icon_controldial)

Rotate: Selects an item or numeric value.



maru_alphabet_bCursor buttons (sankaku_u_d_l_r)

Press: Selects an item or numeric value.



maru_alphabet_c[MENU/SET] button

Press: Confirms a setting.

Displays the menu during recording and playback.

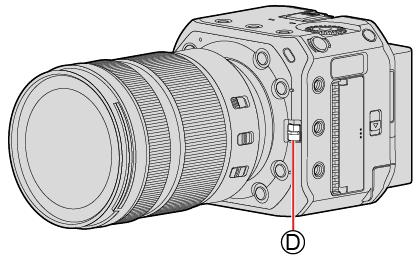

img_ch3_05



maru_alphabet_dOperation lock switch

Aligning the operation lock switch with the [b_icon_lockswitch_lock] position disables the operation parts. The operation parts to disable can be set in [Lock Switch Setting] of the [Custom] ([Operation]) menu. ([Lock Switch Setting])
