- 2. Getting Started
- Attaching a Lens
|
Change the lens in a location where there is not a lot of dirt and dust. If dirt or dust gets on the lens (Dirt on the image sensor) Change the lens while the lens cap is attached. |
1Turn the camera off.
Press and hold the camera ON/OFF button for more than two seconds.

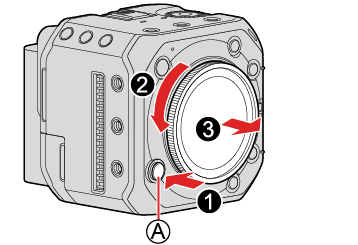

2Turn the lens rear cap and the body cap in the direction of the arrow to remove them.
When removing the body cap, rotate it while pressing the lens release button.
|
|
|
|
Lens release button

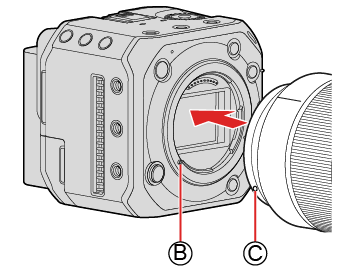

3Align the lens lock pin on the camera and the lens fitting mark on the lens and then rotate the lens in the direction of the arrow.

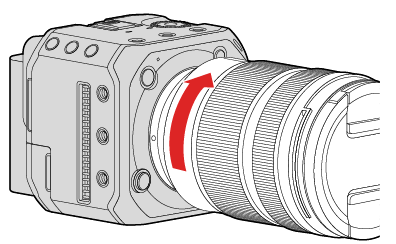

Attach the lens by rotating it until it clicks.
|
|
|
|
Lens lock pin
Lens fitting mark
Removing a Lens
Turn the camera off.
Press and hold the camera ON/OFF button for more than two seconds.

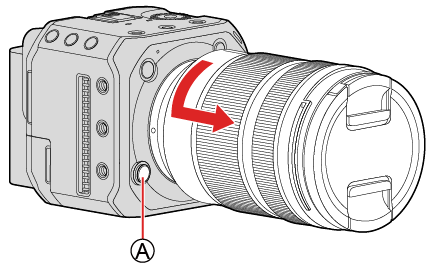

While pressing the lens release button, rotate the lens in the direction of the arrow until it stops and then remove it.
Lens release button
