Power supply
Supplying power with an AC adaptor

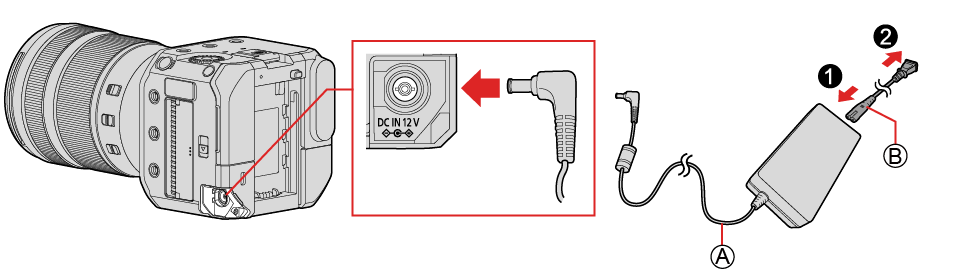

Connect the supplied AC adaptor and AC cable/AC mains lead to the camera to supply power (power supply).

img_ch2_01_e

maru_alphabet_a AC adaptor (supplied)

maru_alphabet_b AC cable/AC mains lead (supplied)

1Connect the AC adaptor to the [DC IN 12 V] terminal of the camera.

2Connect the AC cable/AC mains lead to the AC adaptor, then plug it into the power outlet.

The AC cable/AC mains lead is for this camera only, so do not use it with other devices. Additionally, do not use the AC cable/AC mains lead of other devices with this camera.

Do not use any other AC adaptors except the supplied one. This may cause malfunction.

Do not use any other AC cables/AC mains leads except the supplied one. This may cause malfunction.

Turn off the camera before connecting or disconnecting the power plug.

Do not leave any metal items (such as clips) near the contact areas of the power plug. Otherwise, a fire and/or electric shocks may be caused by short-circuiting or the resulting heat generated.

Do not use the AC adaptor and AC cable/AC mains lead with other devices. This may cause malfunction.

If there is a power outage or other problems with the electrical outlet, please reconnect the power plug.

Power is being consumed even if the camera is turned off. When the camera will not be used for a long time, remove the power plug from the electrical outlet in order to save power.
